Symptom Troubleshooting Chart - Air Leak & Wind Noise
Symptom Troubleshooting Chart - Air Leak & Wind Noise

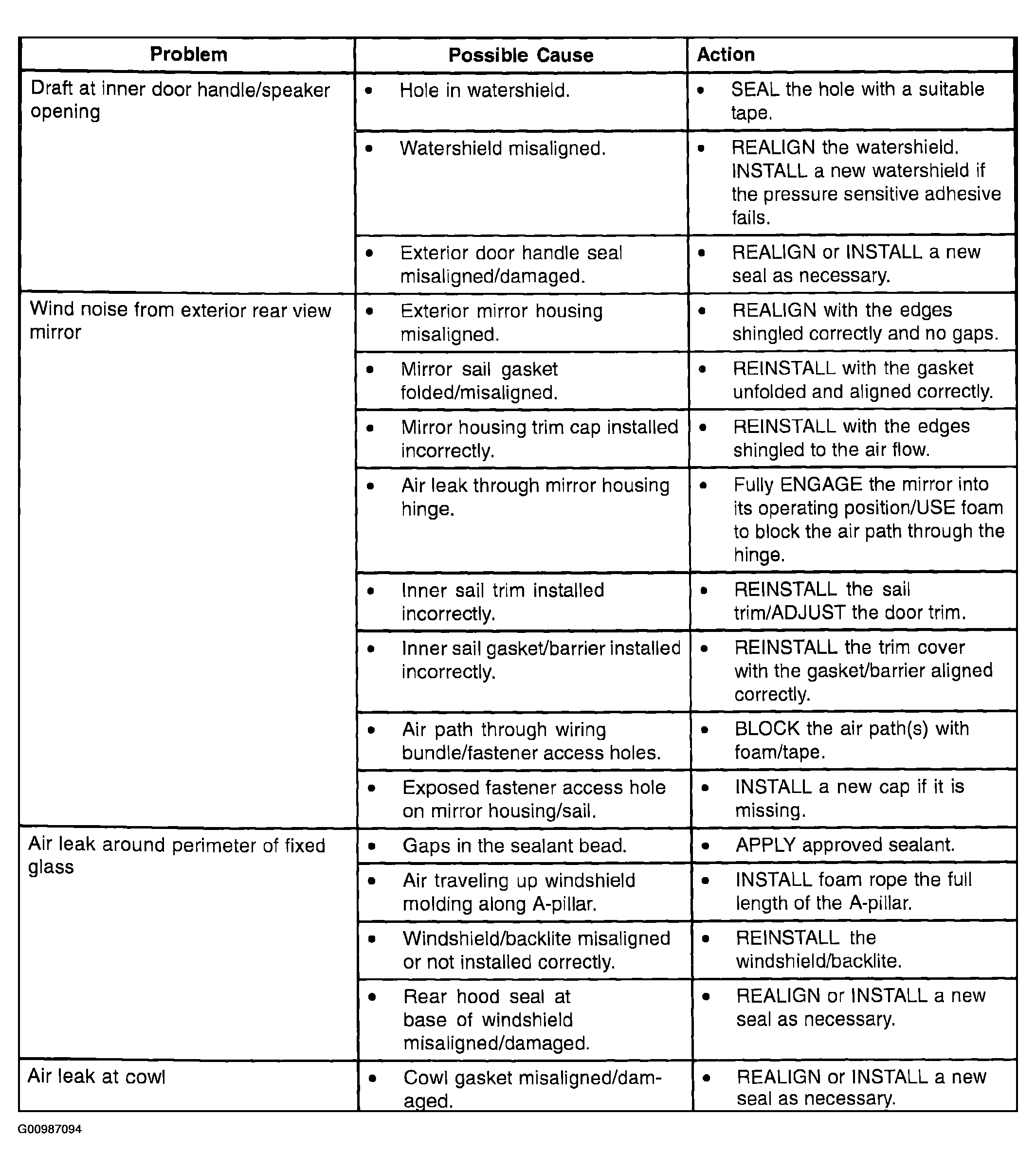

Fig 1: Symptom Troubleshooting Chart - Air Leak & Wind Noise (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

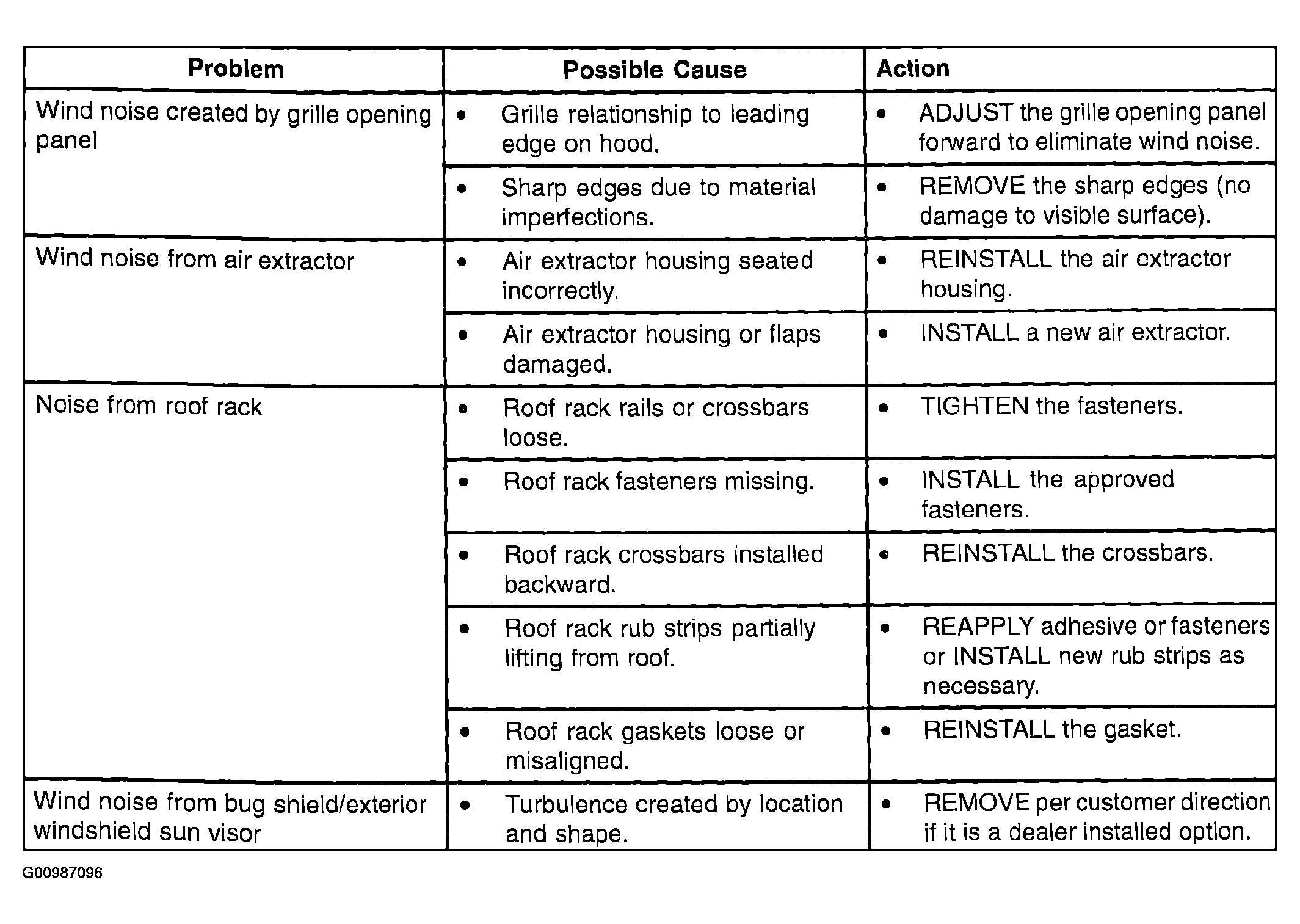

Fig 2: Symptom Troubleshooting Chart - Air Leak & Wind Noise (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

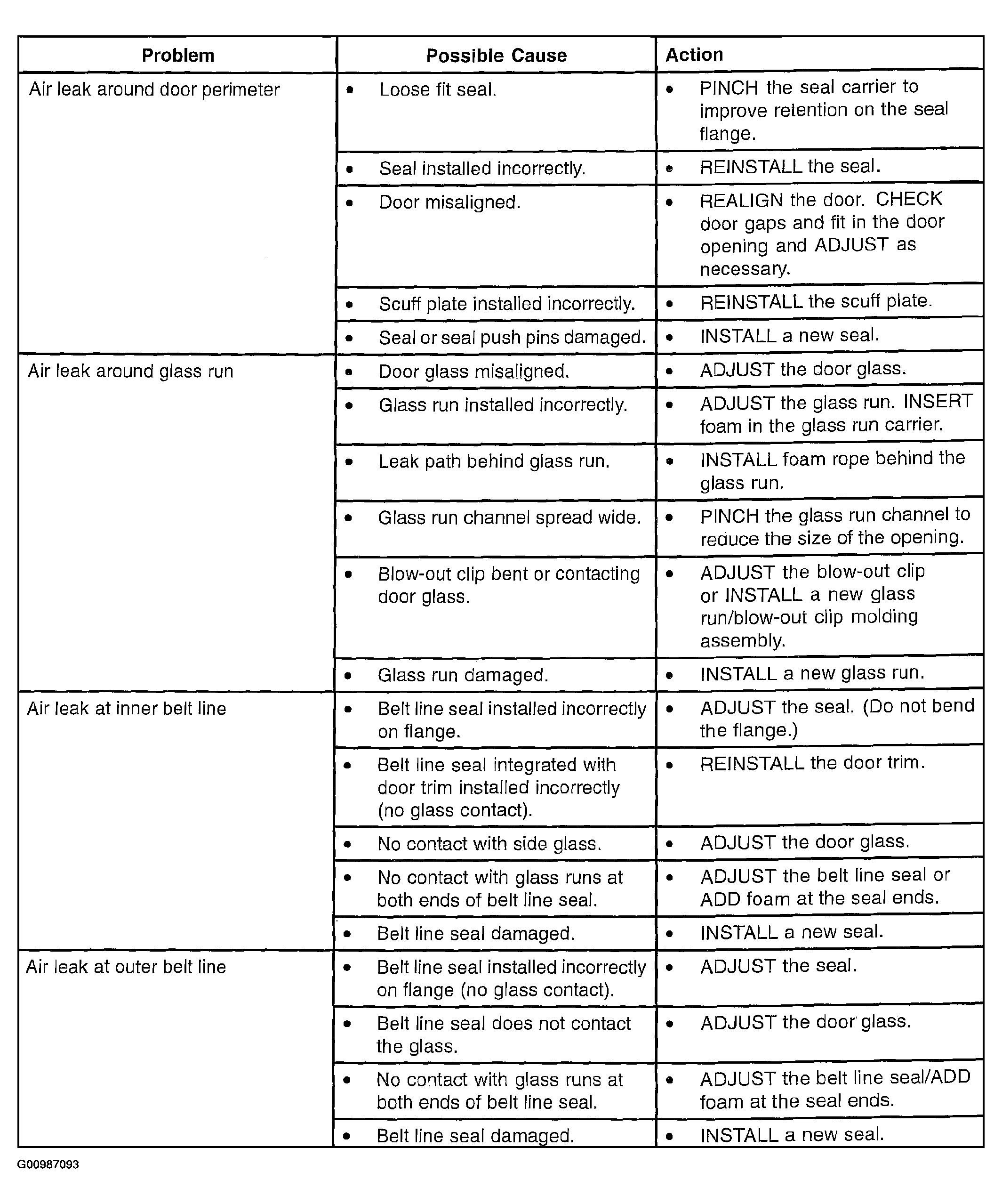

Fig 3: Symptom Troubleshooting Chart - Air Leak & Wind Noise (3 Of 4)
Courtesy of MAZDA MOTORS CORP.
Fig 4: Symptom Troubleshooting Chart - Air Leak & Wind Noise (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
