Special Service Tools
Special Service Tools

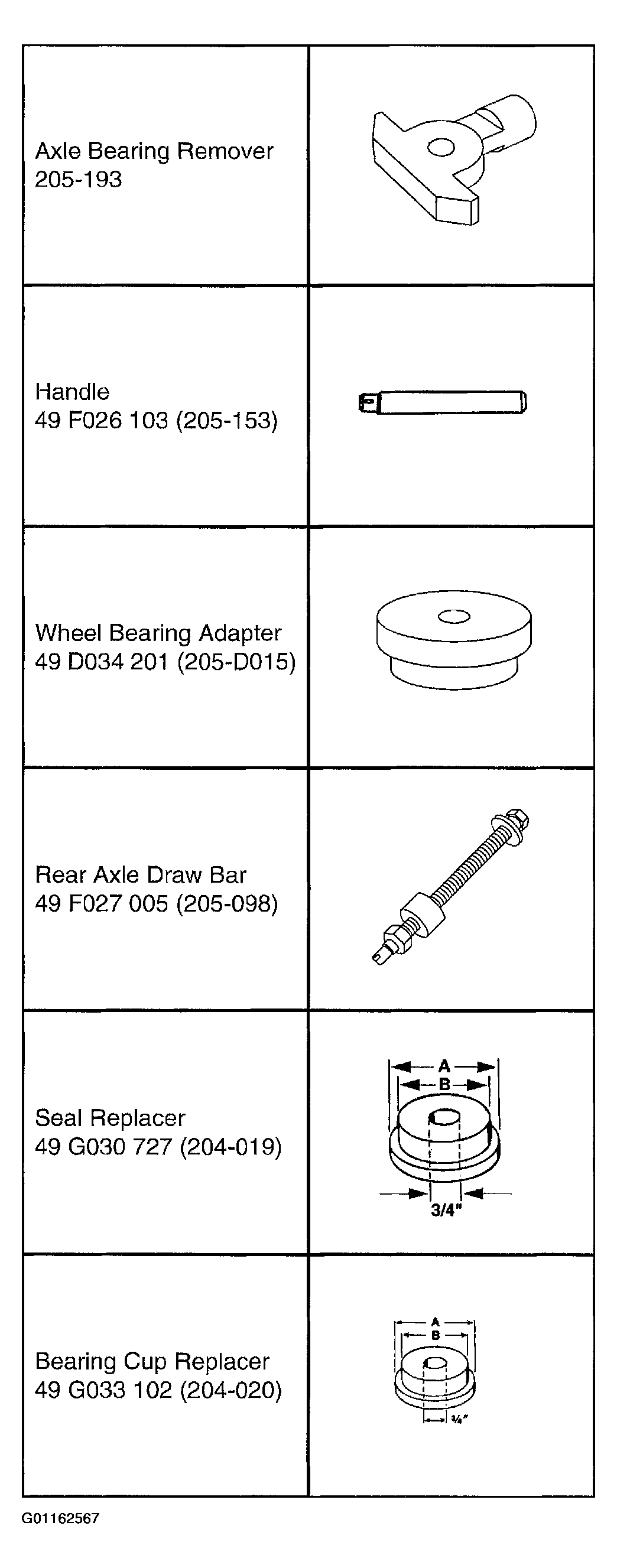

Fig 1: Identifying Special Service Tools (1 Of 5)
Courtesy of MAZDA MOTORS CORP.

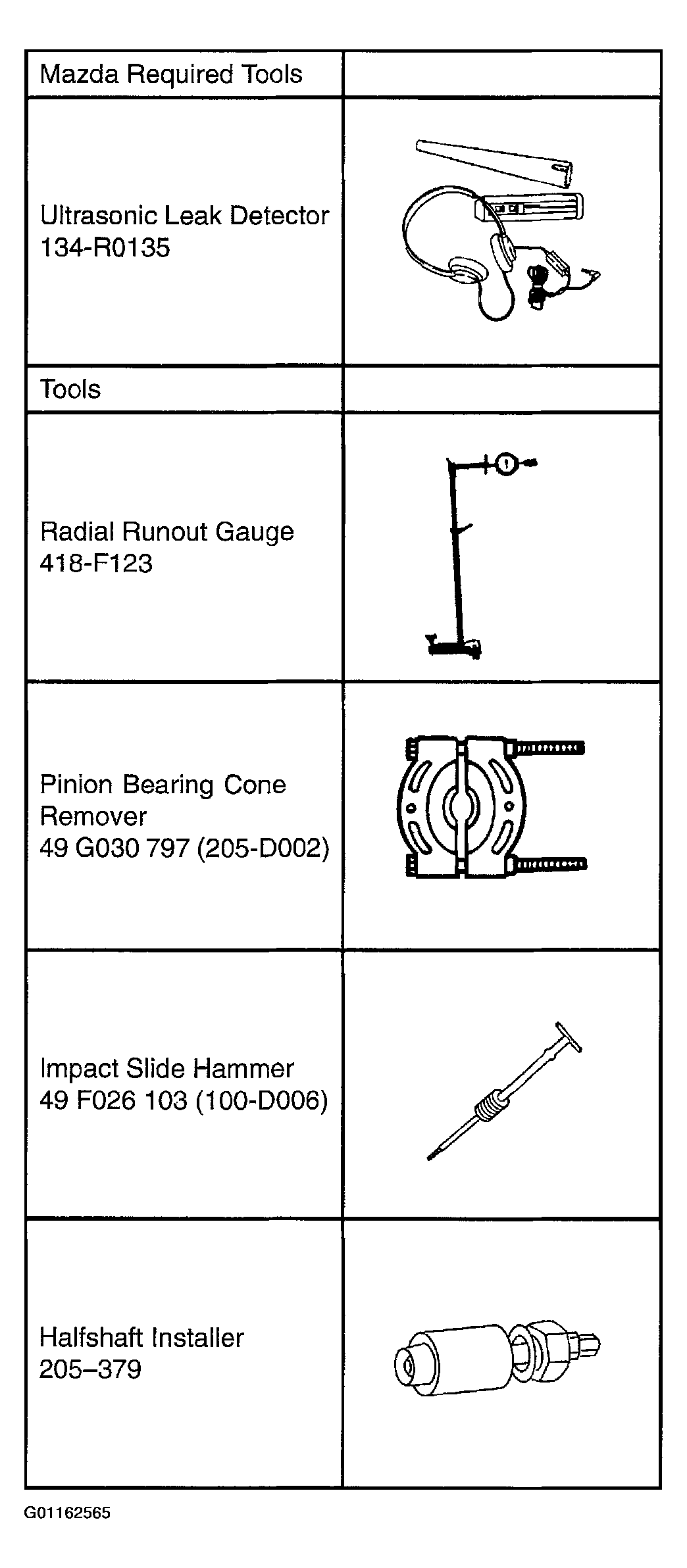

Fig 2: Identifying Special Service Tools (2 Of 5)
Courtesy of MAZDA MOTORS CORP.

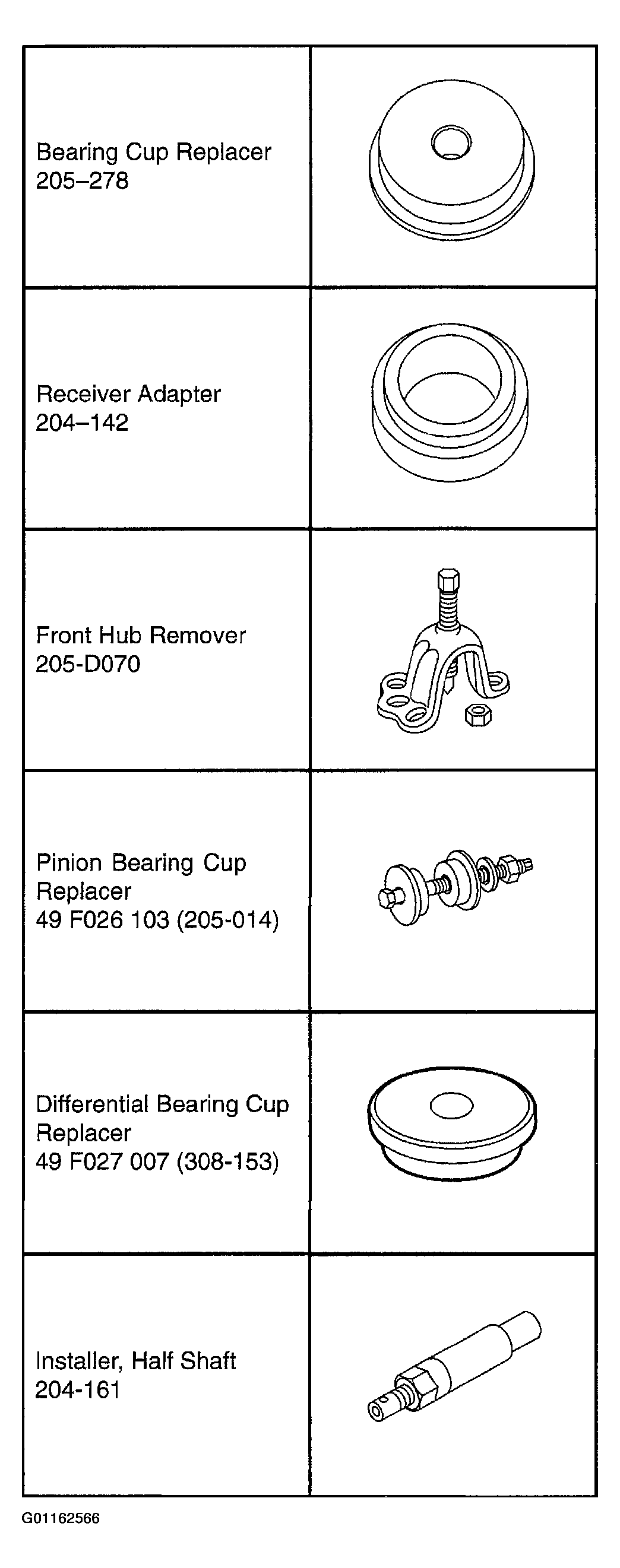

Fig 3: Identifying Special Service Tools (3 Of 5)
Courtesy of MAZDA MOTORS CORP.

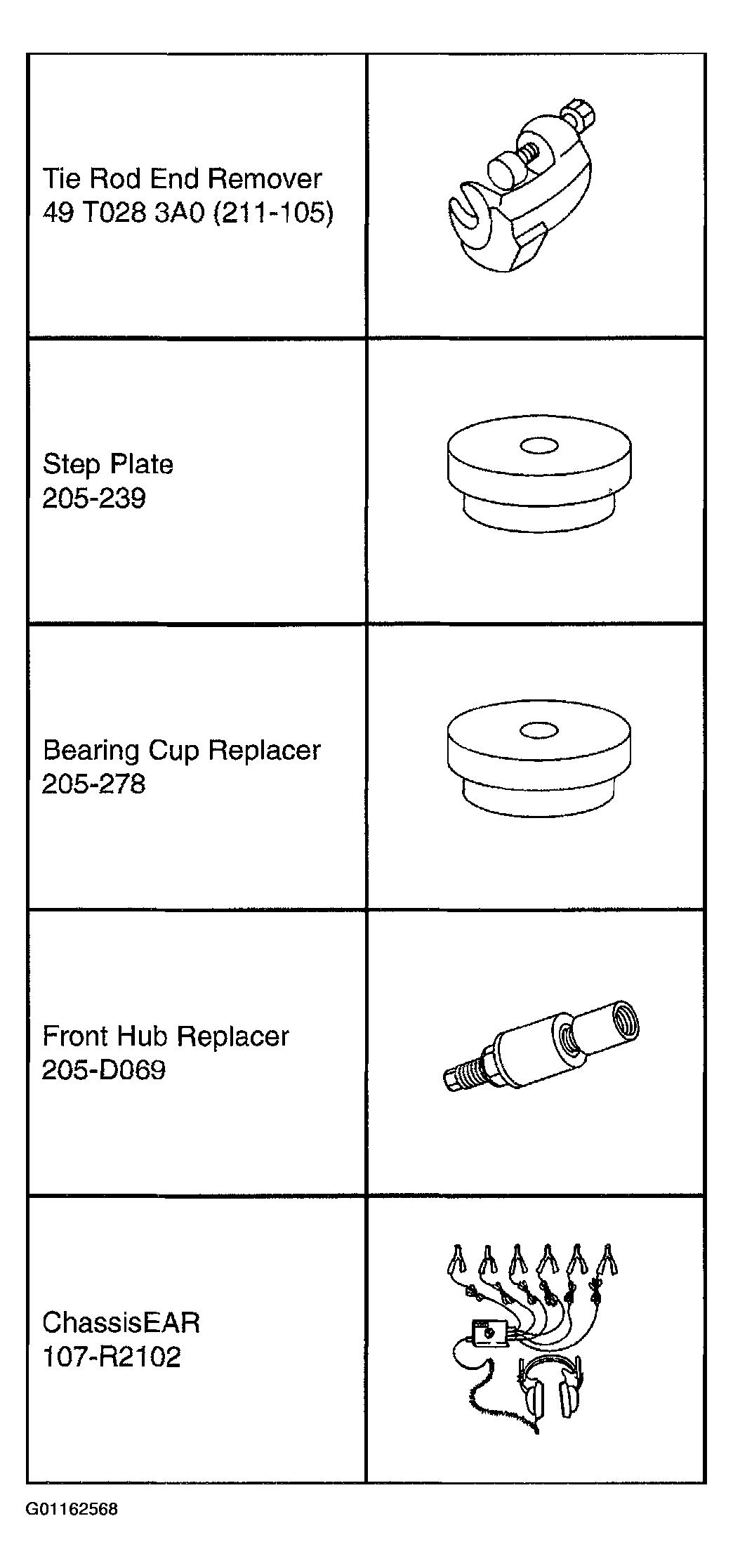

Fig 4: Identifying Special Service Tools (4 Of 5)
Courtesy of MAZDA MOTORS CORP.

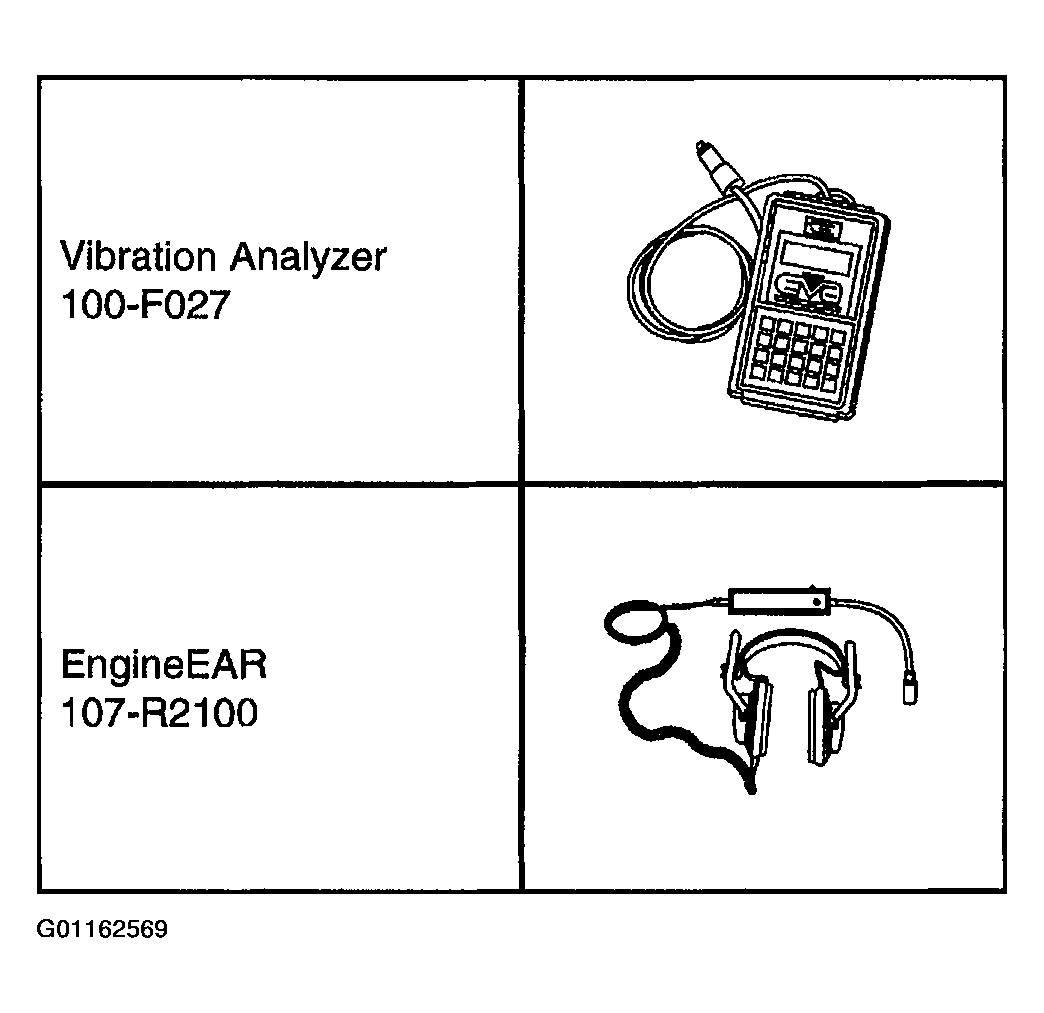

Fig 5: Identifying Special Service Tools (5 Of 5)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
