Removal and Installation

Remove the wheel and tire.
NOTE: It may be necessary to hold the ball joint stud to keep it from turning while removing the nut
Separate the lower ball joint from the knuckle.
- Remove the lower ball joint nut.

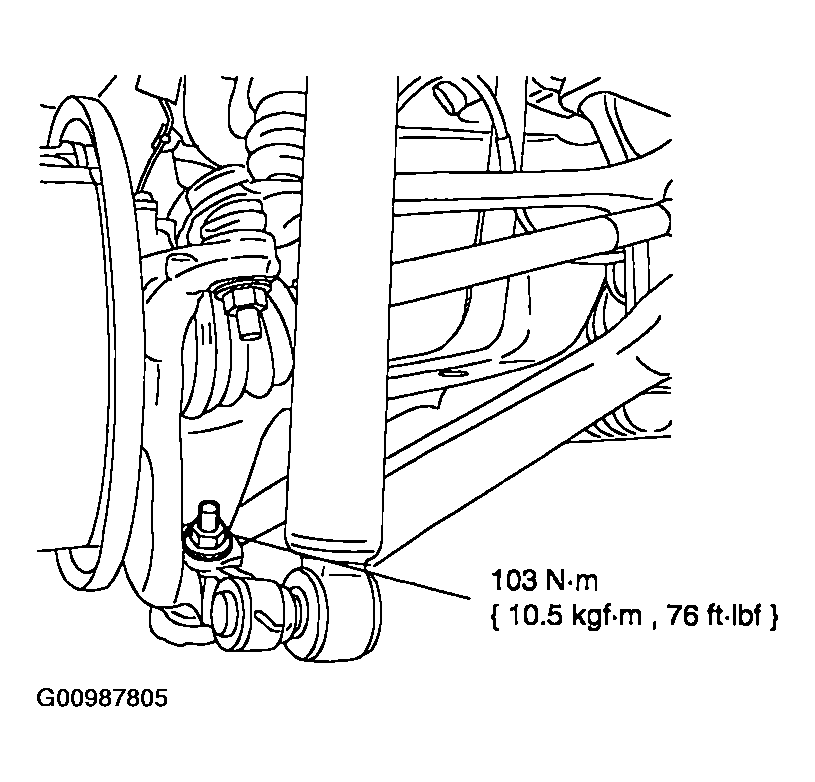

  Fig 1: Identifying Lower Ball Joint Nut
  Courtesy of MAZDA MOTORS CORP.
Remove the lower arm.
- Remove the lower arm inner bolt.

  Fig 2: Identifying Lower Arm Inner Bolt
  Courtesy of MAZDA MOTORS CORP.
- Remove the lower arm.
To install, reverse the removal procedure.
