Home >> Mazda >> 2002 >> Tribute LX, 4WD >> Repair and Diagnosis >> Suspension >> Front Suspension >> Stabilizer Bar Link >> Removal And Installation

Removal And Installation

  1. Remove the wheel and tire.
  2. Remove the stabilizer bar link.
    1. Remove the upper and lower stabilizer bar link nuts.
    2. Remove the stabilizer bar link.

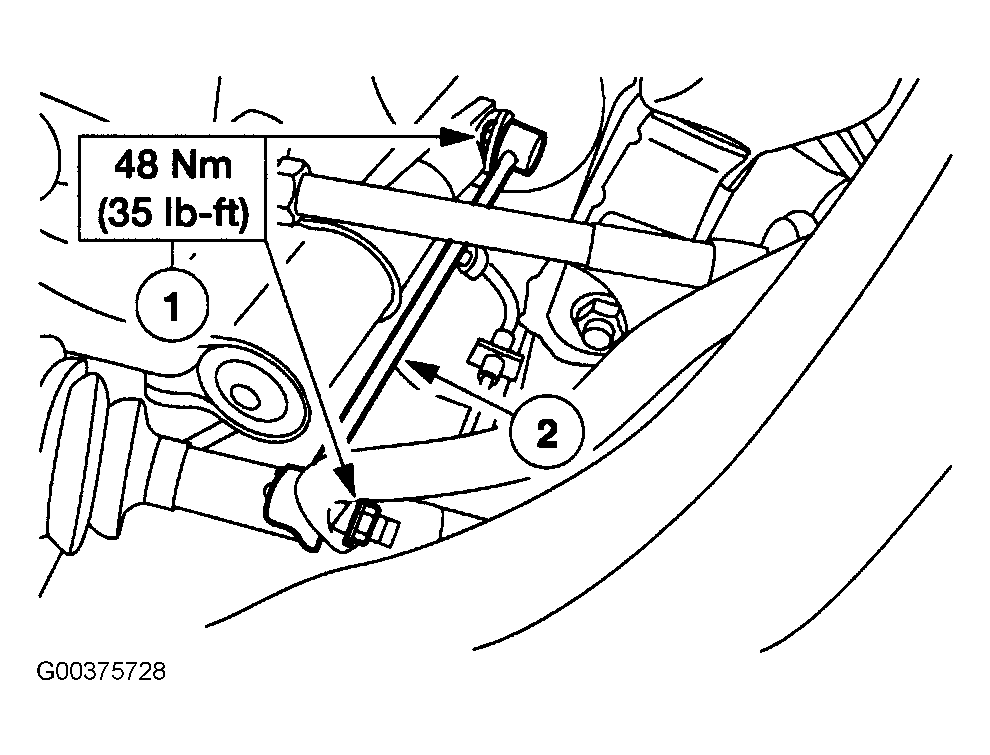

    Fig 1: Removing Stabilizer Bar Link
    G00375728Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
