Removal & Installation

  1. Position the boot aside.

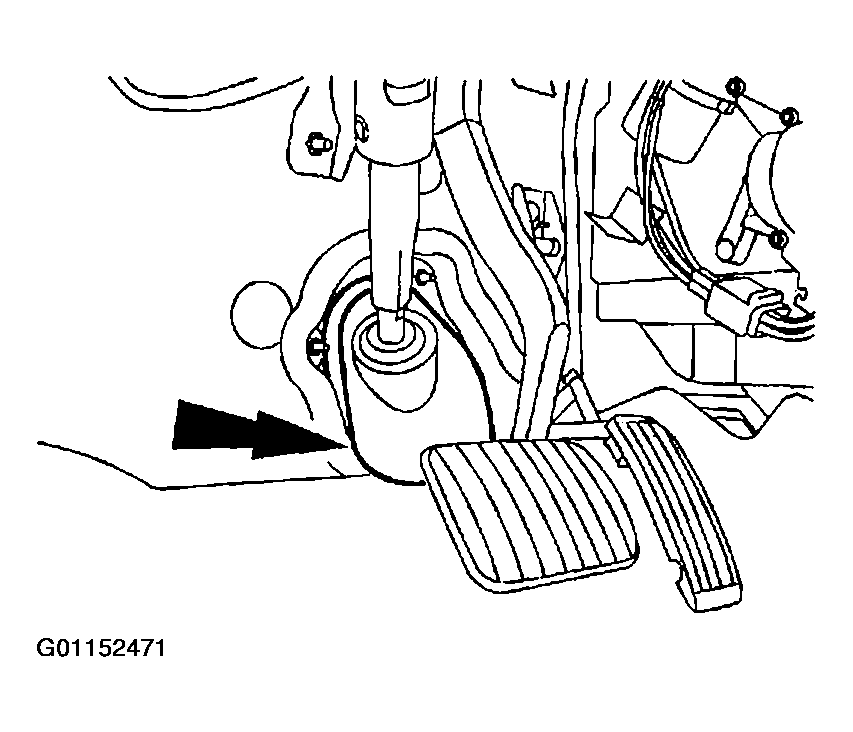

    Fig 1: Positioning Steering Gear Boot Cover Aside
    G01152471Courtesy of MAZDA MOTORS CORP.
  2. Remove and discard the pinch bolt/nut and disconnect the steering column shaft from the flexible coupling.

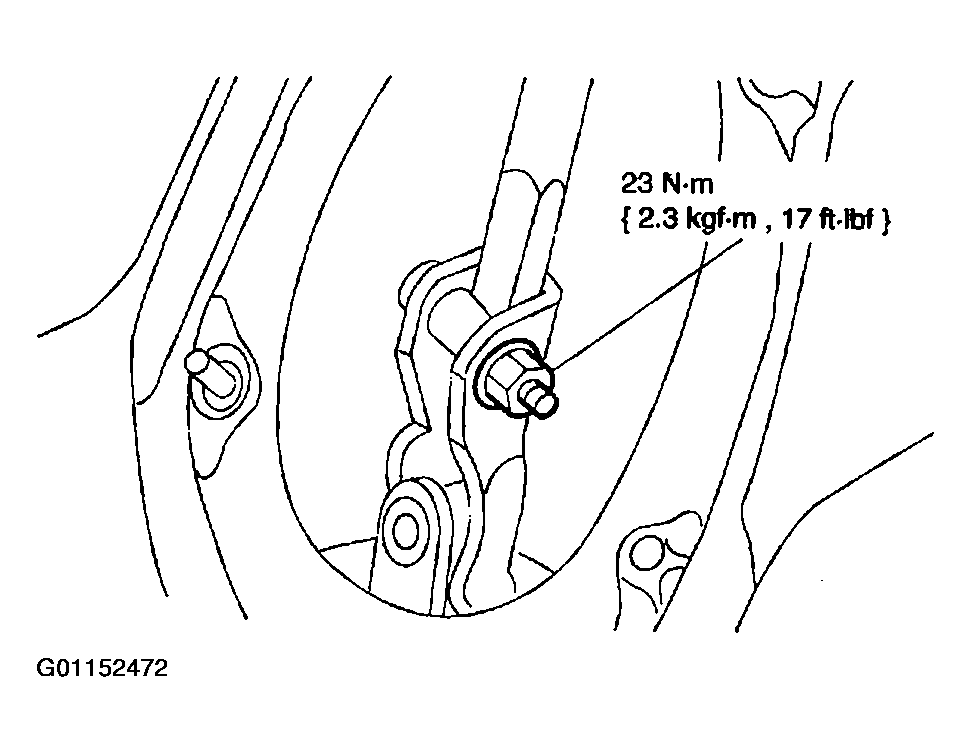

    Fig 2: Removing Pinch Bolt/Nut
    G01152472Courtesy of MAZDA MOTORS CORP.
  3. Remove the left hand front tire. Refer to WHEELS AND TIRES .
  4. Remove the steering column shaft pin.

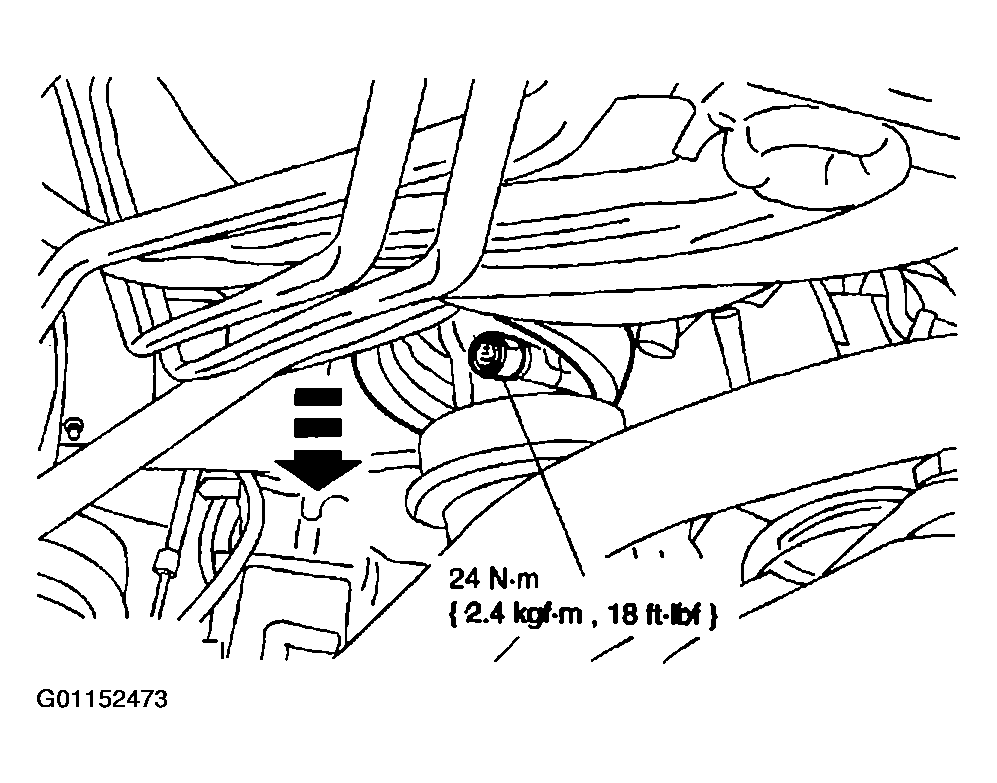

    Fig 3: Removing Steering Column Shaft Pin
    G01152473Courtesy of MAZDA MOTORS CORP.
  5. Lower the vehicle.
  6. Remove the steering column shaft.
  7. To install, reverse the removal procedure.
