Power Steering Pump To Steering Gear Pressure Line: Removal

  1. Raise and support the vehicle.
    2. NOTE: Drain the excess power steering fluid into a suitable drain pan.
    NOTE: Do not drop the O-ring seals.
  2. Disconnect the power steering pressure and return lines.
    1. Remove the bolt.
    2. Disconnect the power steering pressure and return lines.

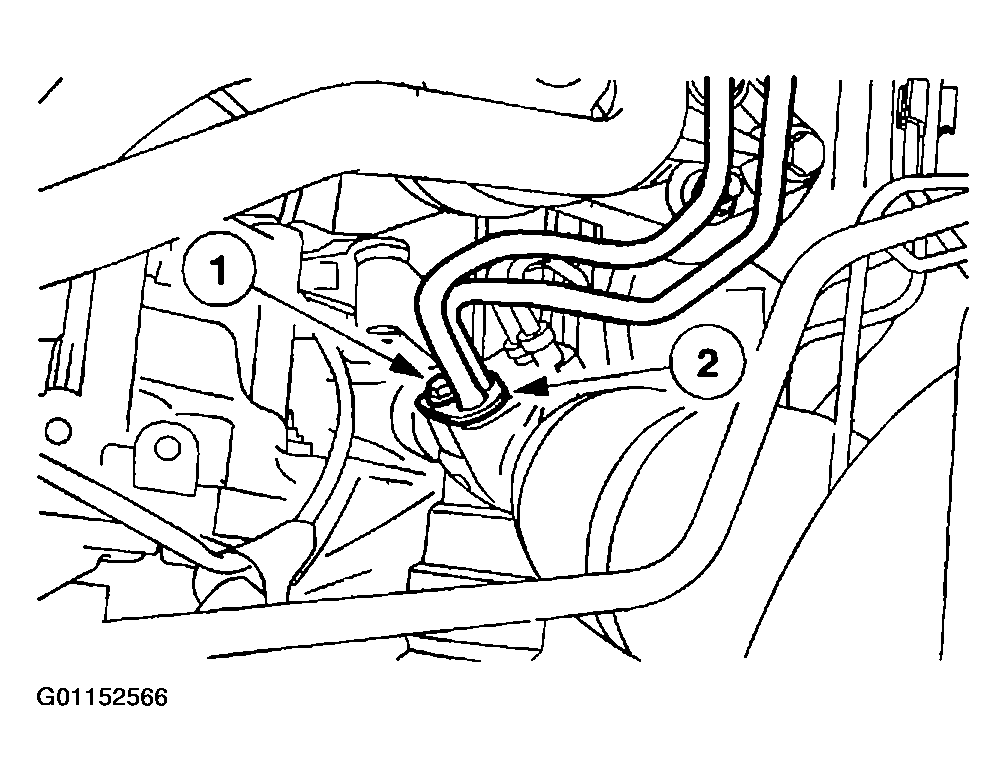

      Fig 1: Disconnecting Power Steering Pressure & Return Lines
      G01152566Courtesy of MAZDA MOTORS CORP.
  3. Lower the vehicle.
  4. Remove the power steering pressure line bracket bolt to the steering gear.

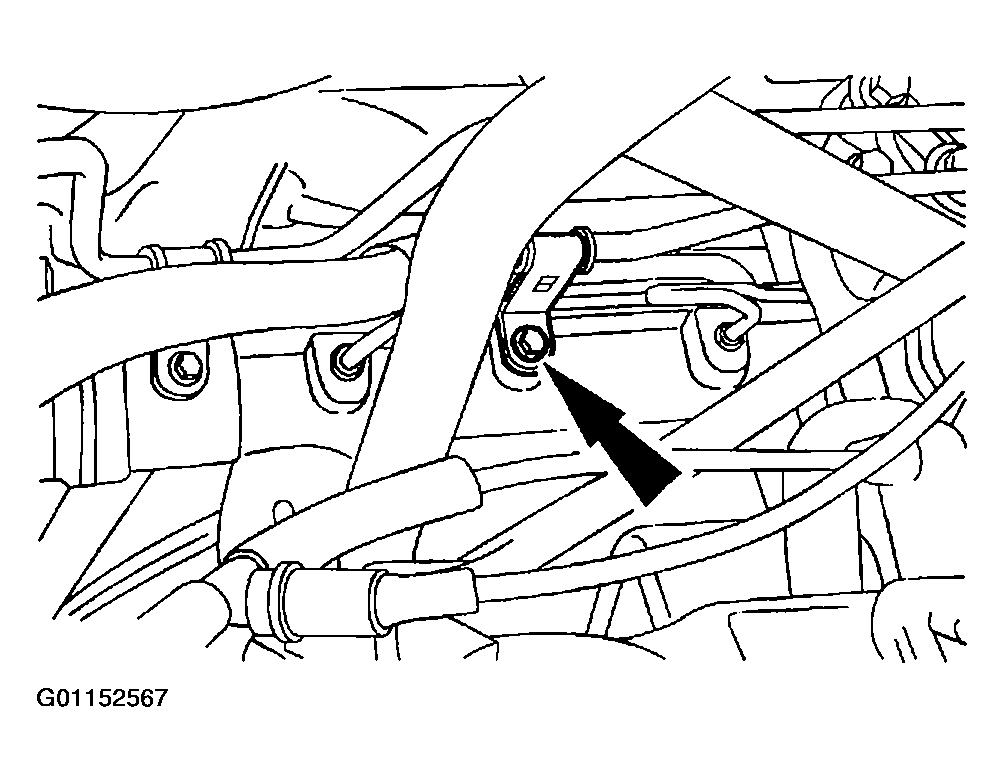

    Fig 2: Removing Power Steering Pressure Line Bracket
    G01152567Courtesy of MAZDA MOTORS CORP.
  5. Remove the power steering pressure hose.
    1. Remove the power steering pressure line bracket bolt.
    2. Disconnect the electrical connector.
    3. Loosen the fitting and remove the power steering pressure line.

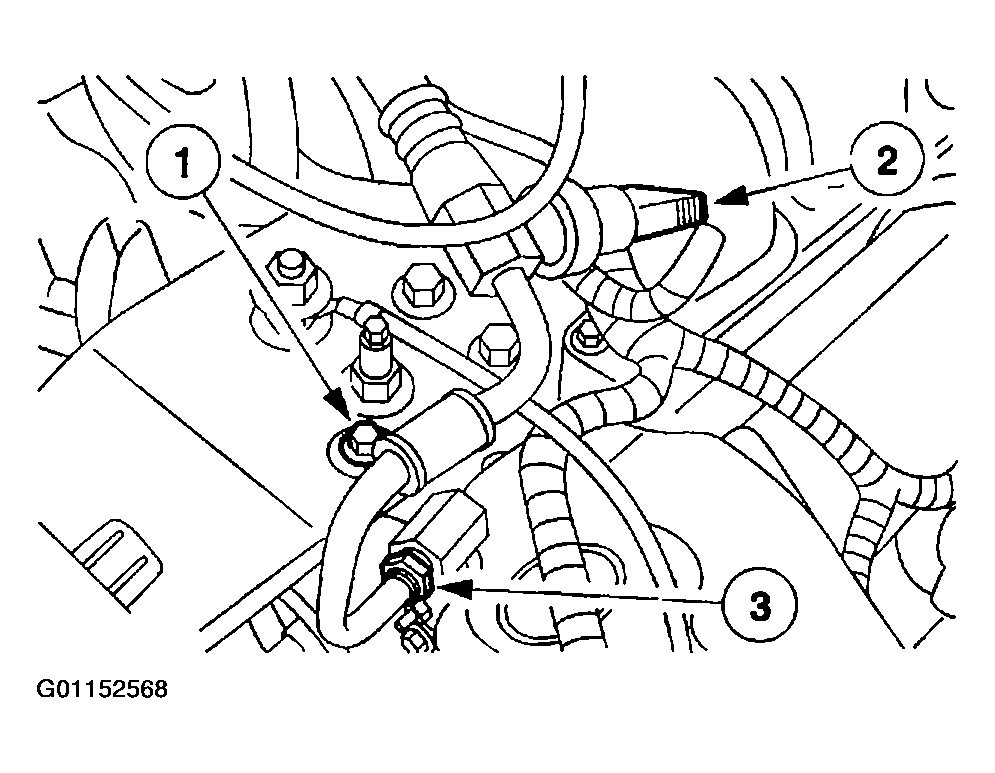

      Fig 3: Removing Power Steering Pressure Hose
      G01152568Courtesy of MAZDA MOTORS CORP.
