Removal & Installation

  1. Loosen the power steering pump pulley bolt.

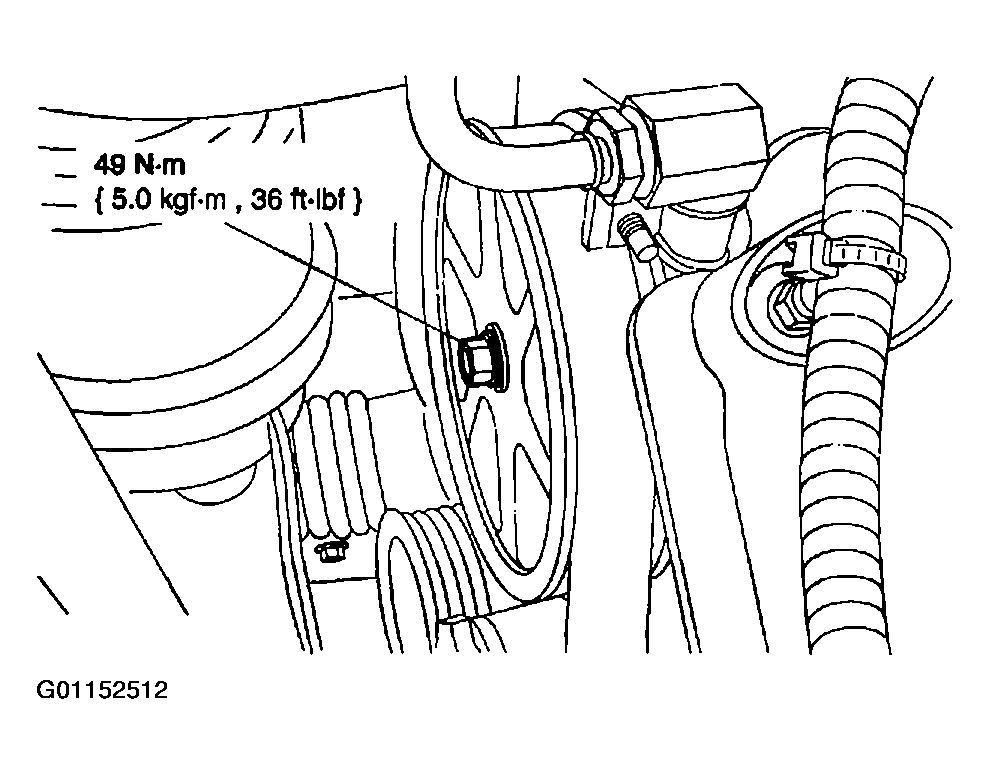

    Fig 1: Loosening Power Steering Pump Pulley Bolt
    G01152512Courtesy of MAZDA MOTORS CORP.
  2. Remove the drive belt. Refer to ACCESSORY DRIVE BELT .
  3. Remove the bolt and the power steering pump pulley.

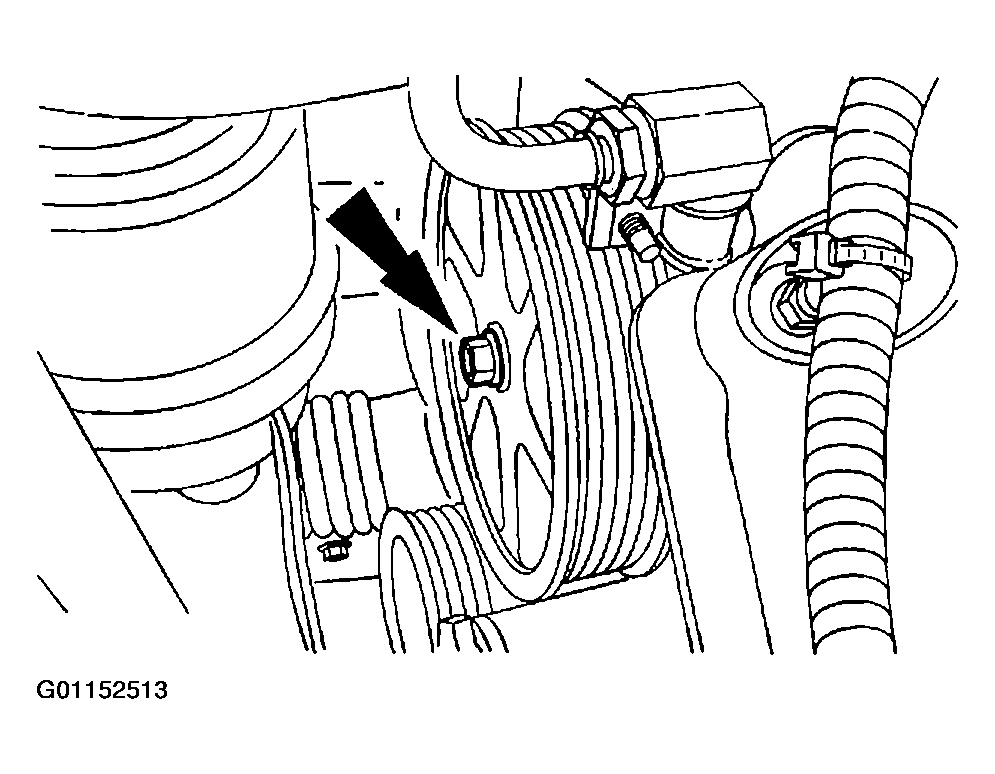

    Fig 2: Removing Power Steering Pump Pulley
    G01152513Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
