Removal & Installation

NOTE: Drain the power steering fluid into a suitable drain pain.

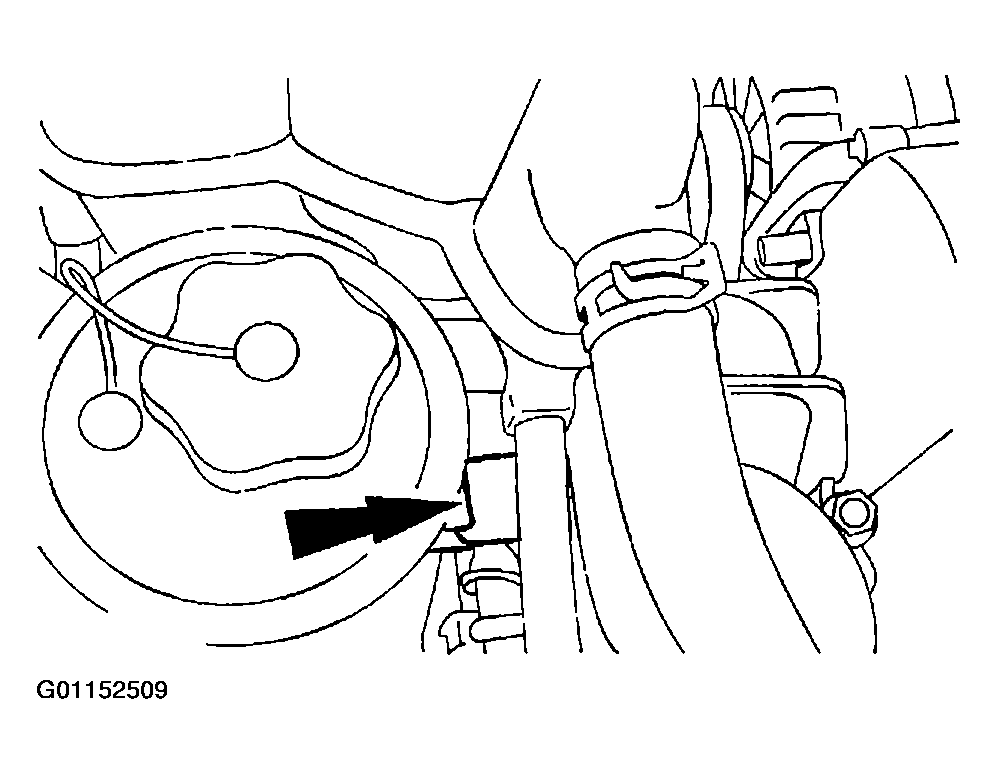

Fig 1: Disconnecting Power Steering Fluid Return Hose

Courtesy of MAZDA MOTORS CORP.

Disconnect the power steering fluid return hose.
Disconnect the power steering low pressure hose.

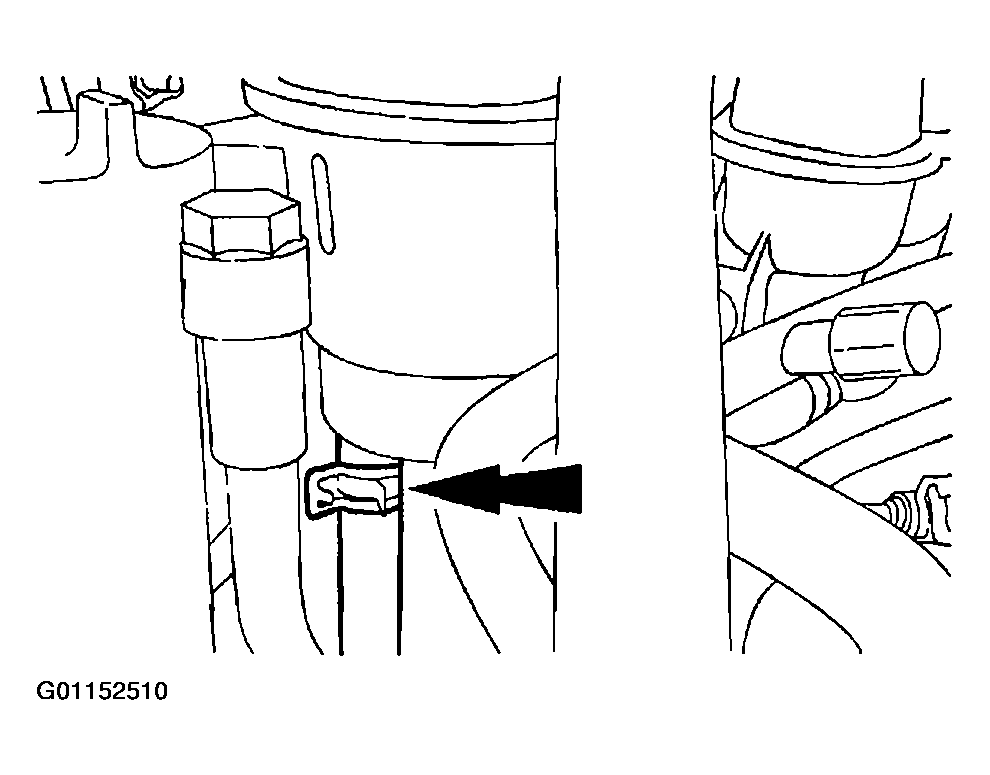

Fig 2: Disconnecting Power Steering Low Pressure Hose
Courtesy of MAZDA MOTORS CORP.
Remove the bolts and the power steering pump reservoir.

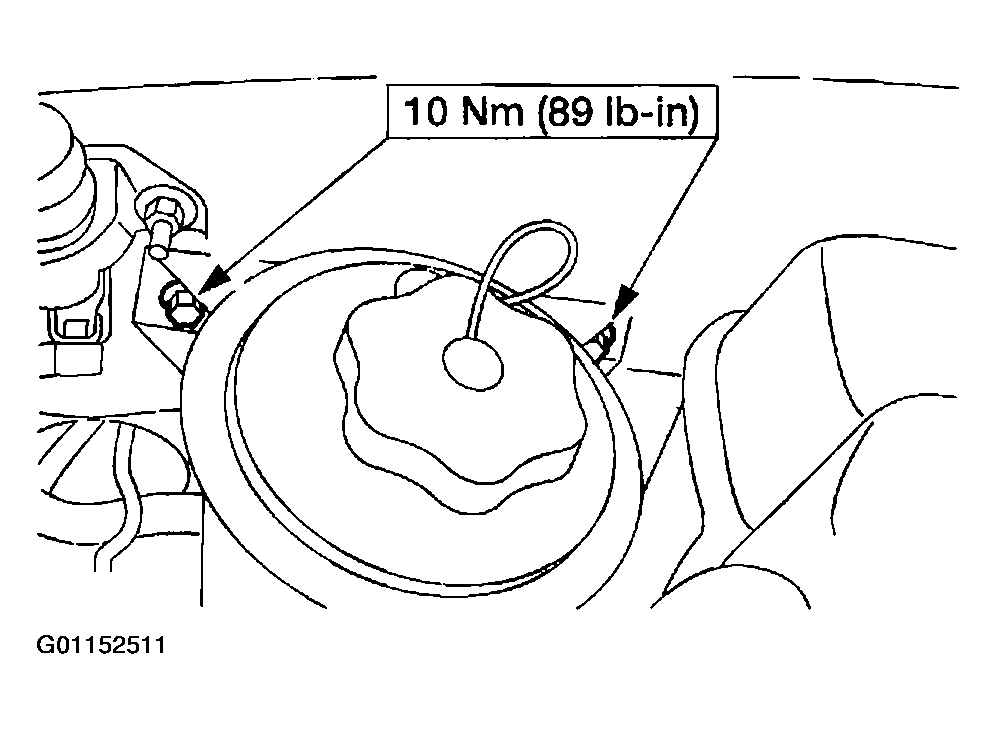

Fig 3: Removing Power Steering Pump Reservoir
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
- Fill power steering system. Refer to FILL .
