Removal & Installation

Disconnect the hose from the power steering fluid reservoir.

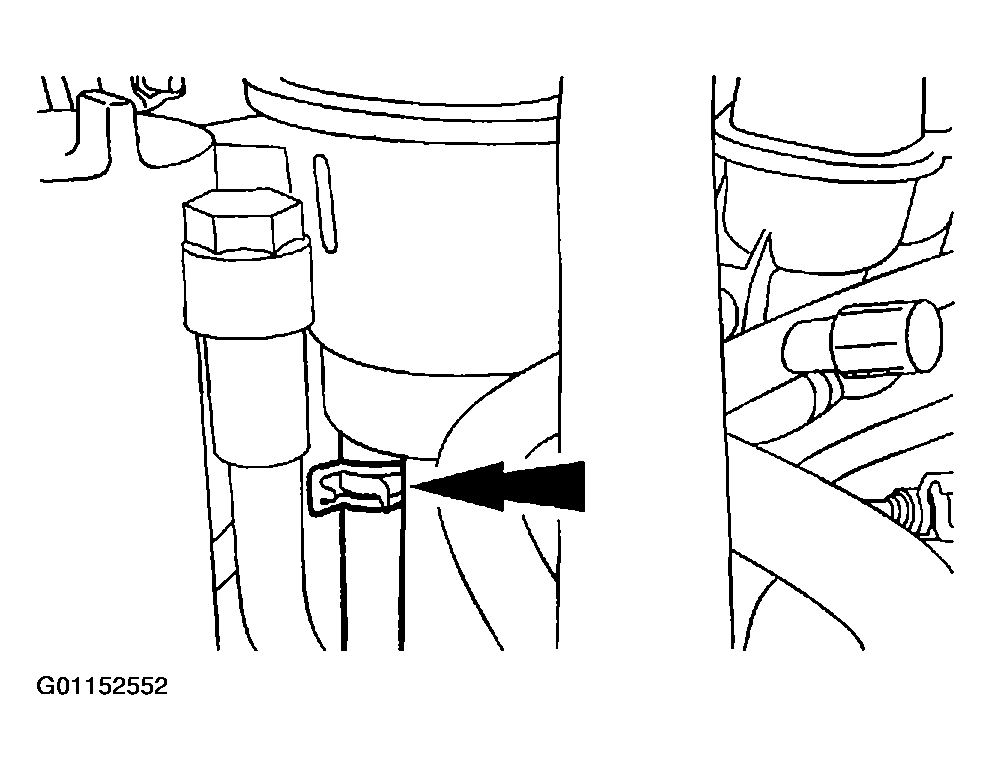

Fig 1: Disconnecting Power Steering Fluid Reservoir Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the power steering cooler hose.

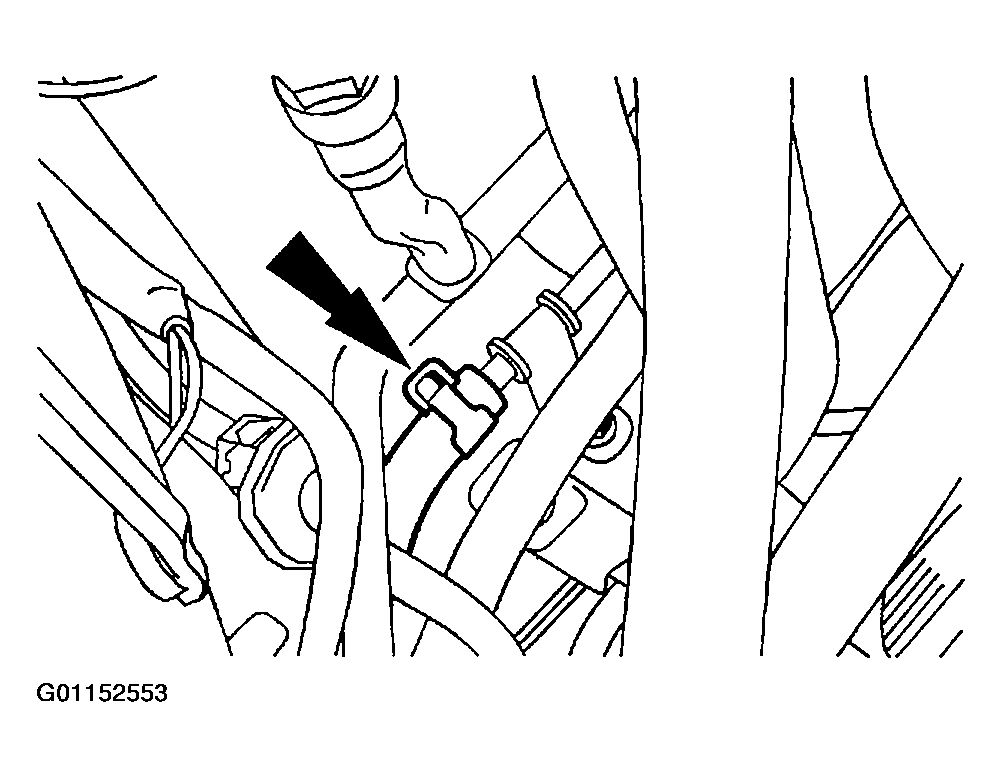

Fig 2: Disconnecting Power Steering Cooler Hose
Courtesy of MAZDA MOTORS CORP.
Remove the front bumper cover. Refer to FRONT BUMPER COVER .
Remove the nuts and the power steering fluid cooler.

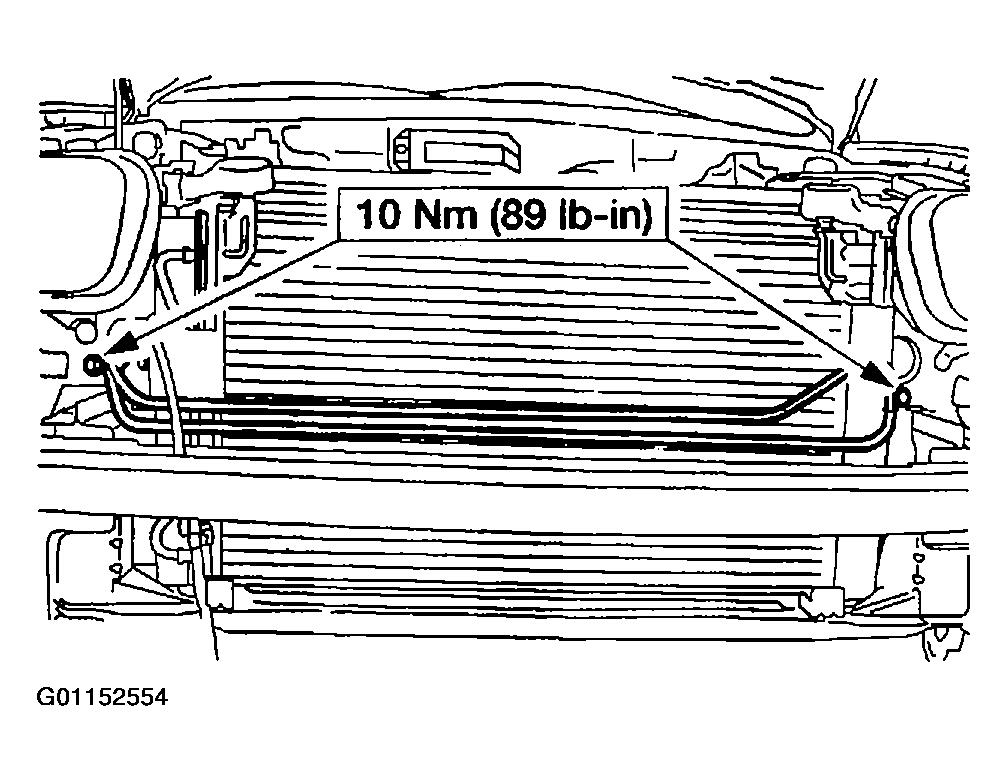

Fig 3: Removing Power Steering Fluid Cooler
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
- Fill, bleed and leak check the power steering system. Refer to FILL .
