Exploded View Of Rack & Pinion Steering Gear (MPV)

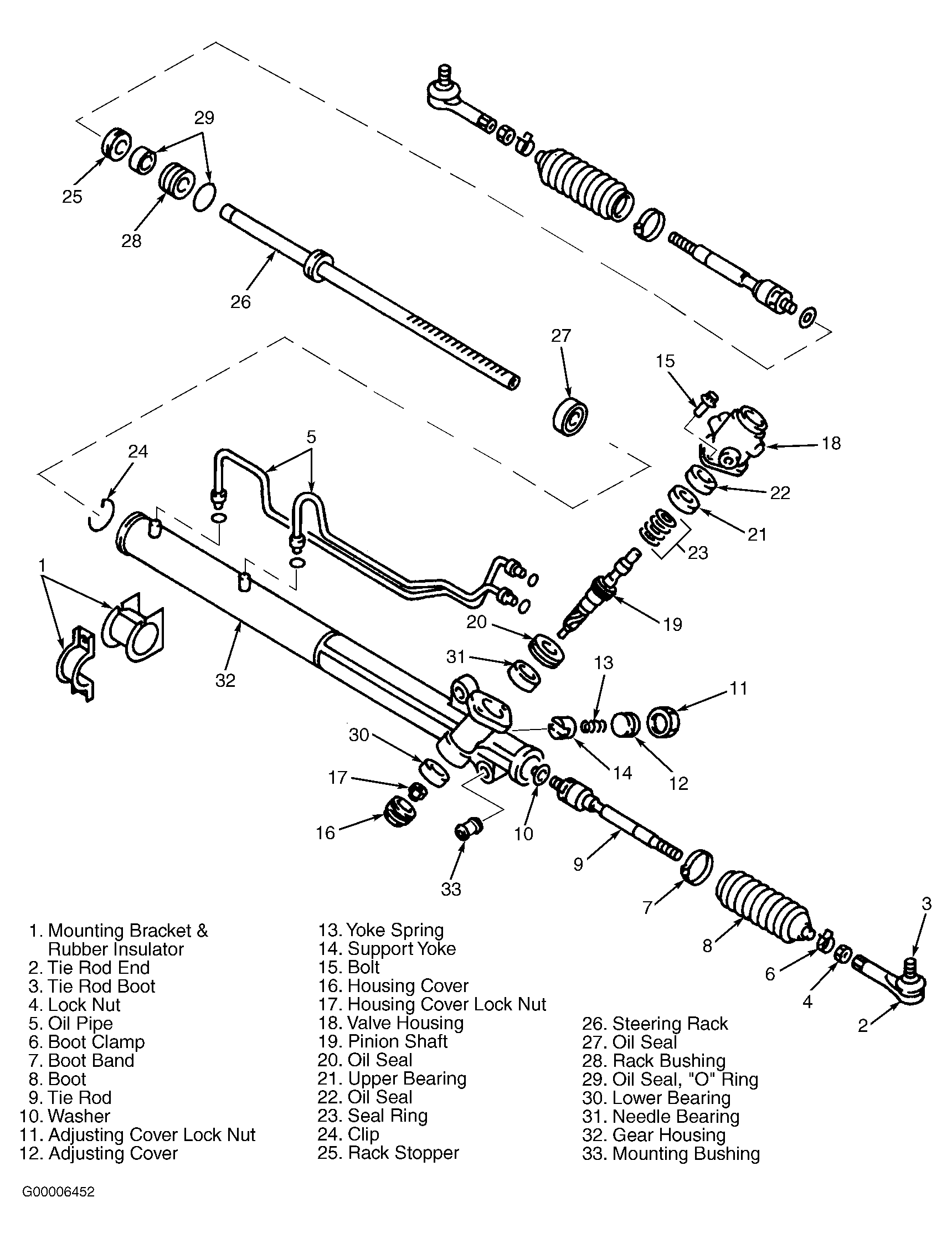

Fig 1: Exploded View Of Rack & Pinion Steering Gear (MPV)

G00006452

Courtesy of MAZDA MOTORS CORP.
