Exploded View Of Power Steering Pump (Protege 1.8L Engine)

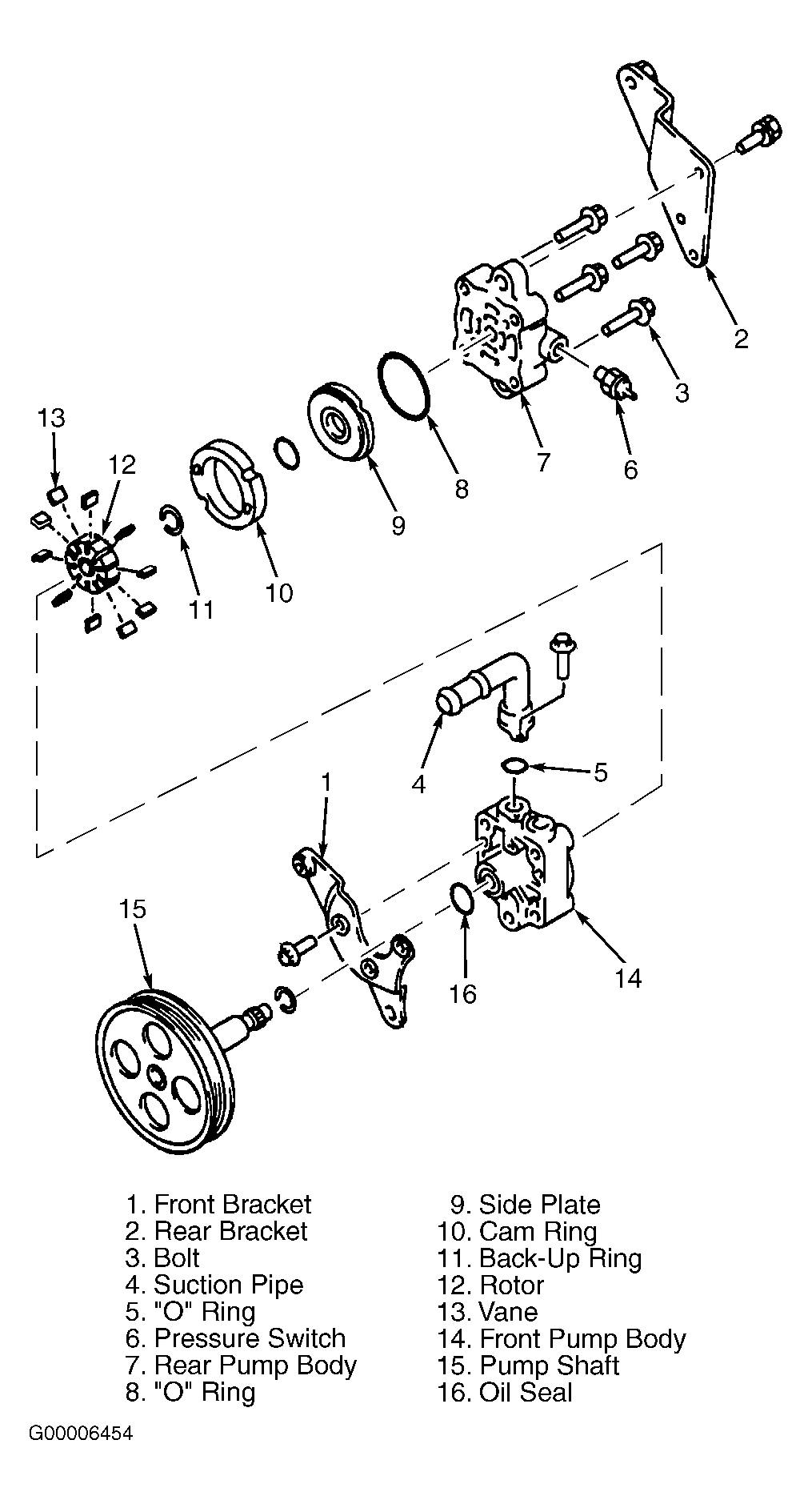

Fig 1: Exploded View Of Power Steering Pump (Protege 1.8L Engine)

G00006454

Courtesy of MAZDA MOTORS CORP.
