Exploded View Of Power Steering Pump (Protege 1.6L Engine)

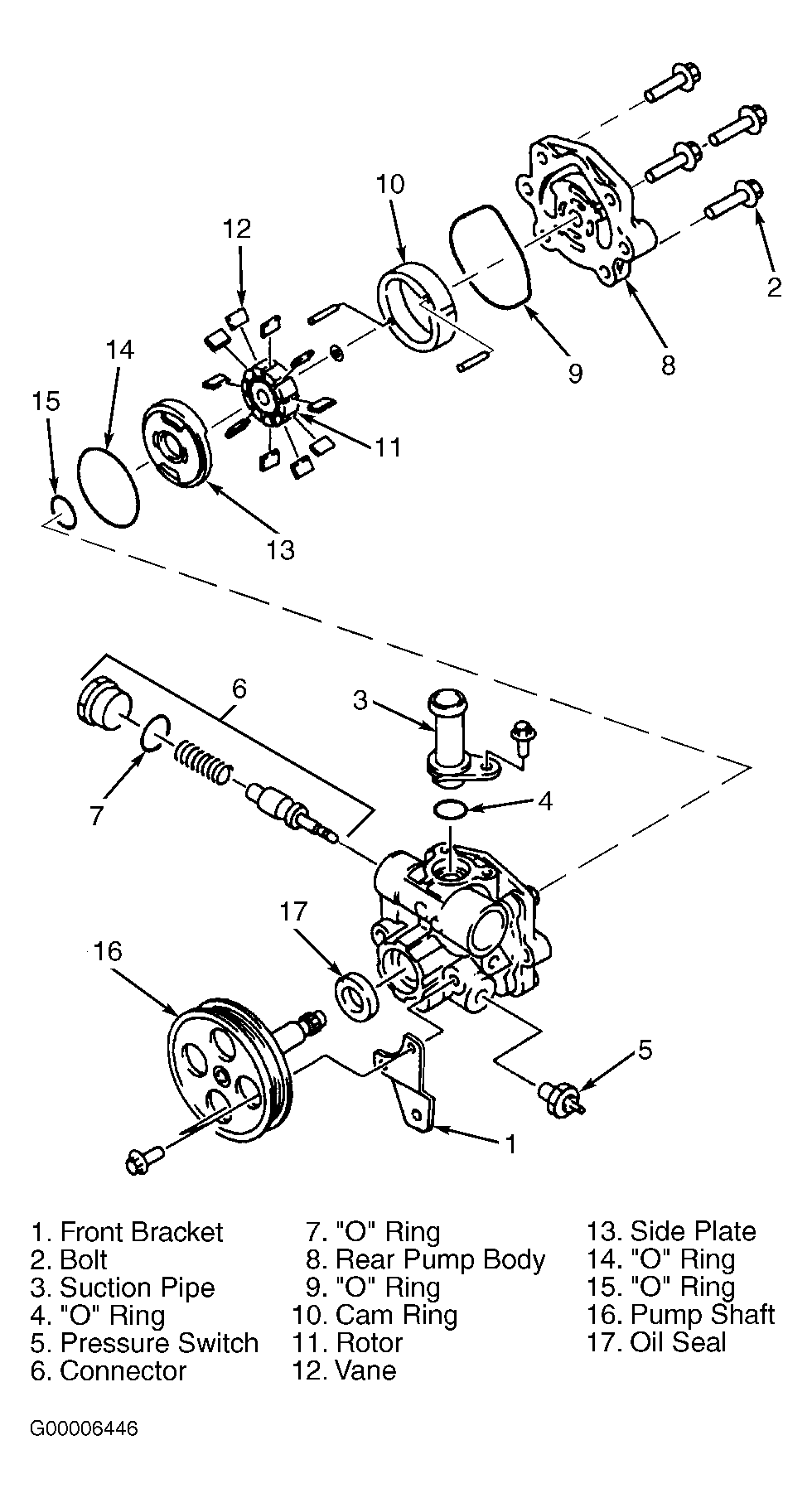

Fig 1: Exploded View Of Power Steering Pump (Protege 1.6L Engine)

G00006446

Courtesy of MAZDA MOTORS CORP.
