Exploded View Of Power Steering Pump (MPV)

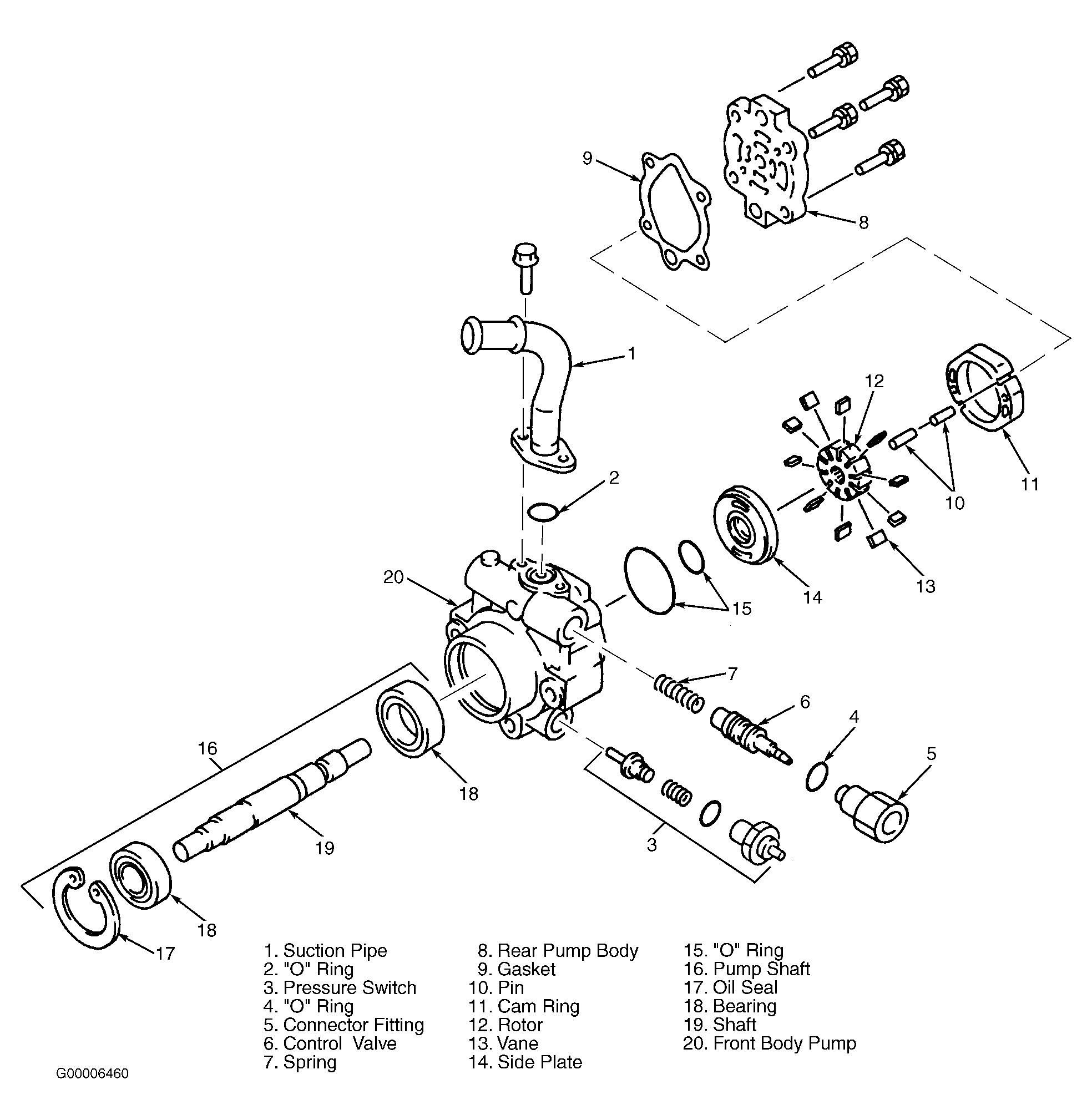

Fig 1: Exploded View Of Power Steering Pump (MPV)

G00006460

Courtesy of MAZDA MOTORS CORP.
