Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Drain the engine cooling system. Refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Remove the right front tire assembly.

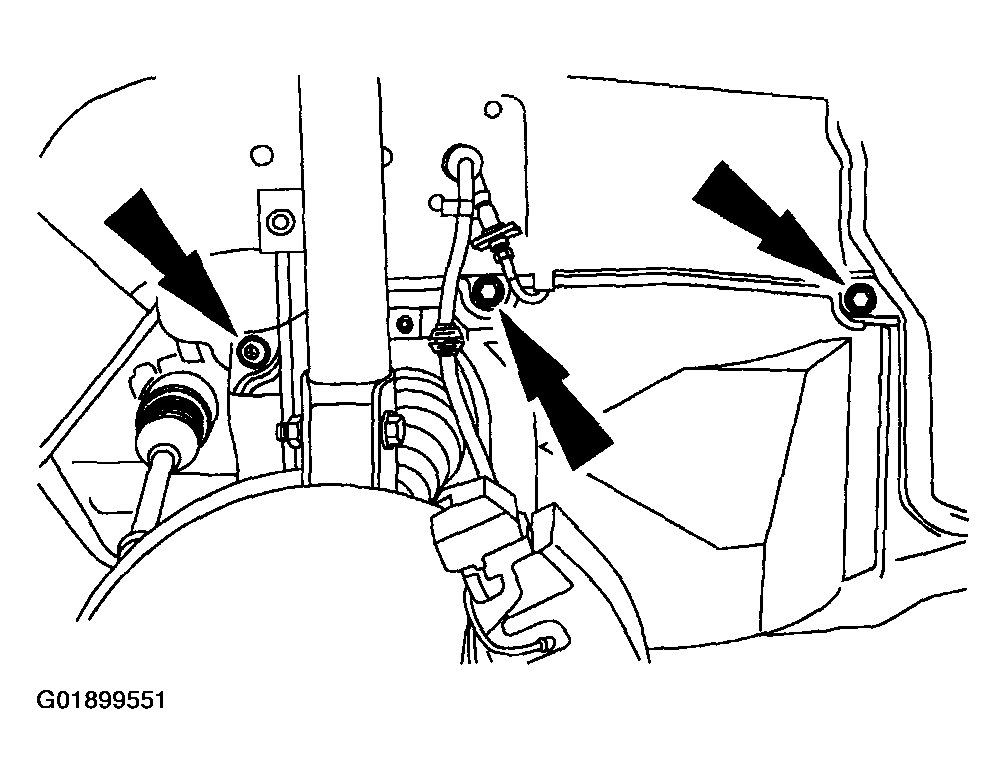

Fig 1: Removing Splash Shield Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the splash shield.
Remove the accessory drive belt. Refer to SPECIFICATIONS & DRIVE BELT ROUTING

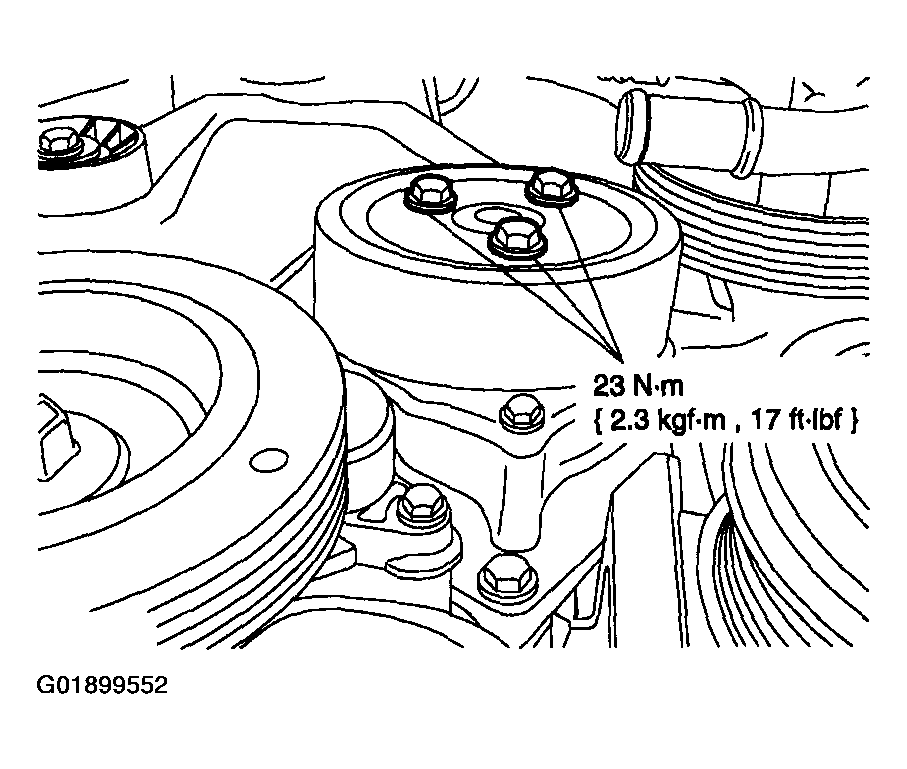

Fig 2: Removing Water Pump Pulley
Courtesy of MAZDA MOTORS CORP.
Remove the water pump pulley.

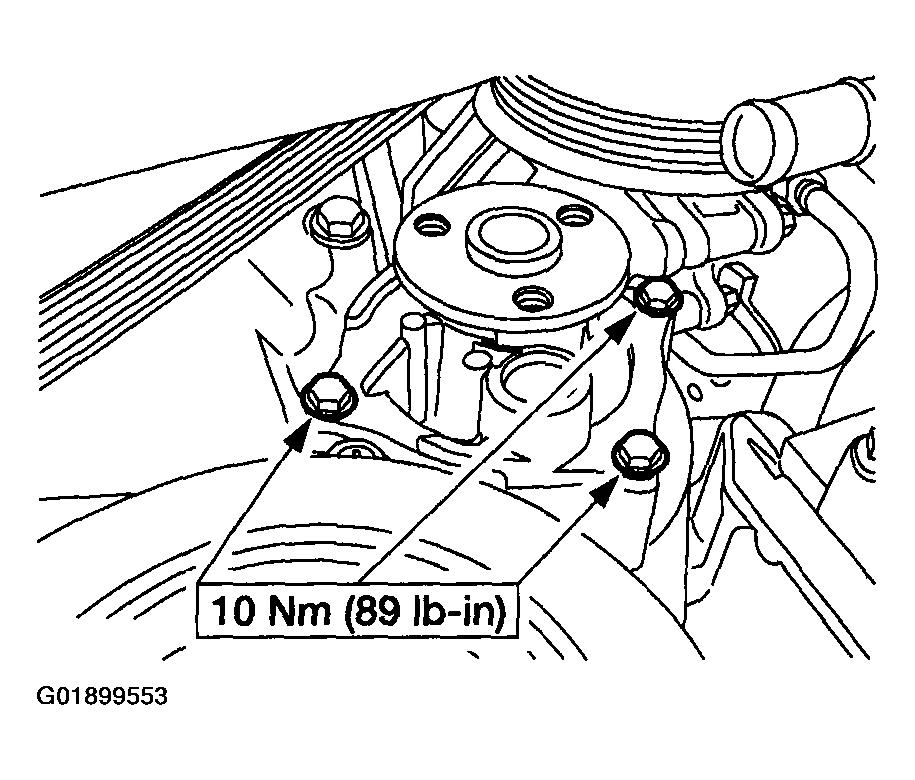

Fig 3: Removing Four Bolts And Water Pump
Courtesy of MAZDA MOTORS CORP.
Remove the four bolts and the water pump.
NOTE:
- Clean and inspect the sealing surfaces.
To install, reverse the removal procedure.
