Removal and Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the thermostat. Refer to THERMOSTAT - 2.0L ZETEC  .

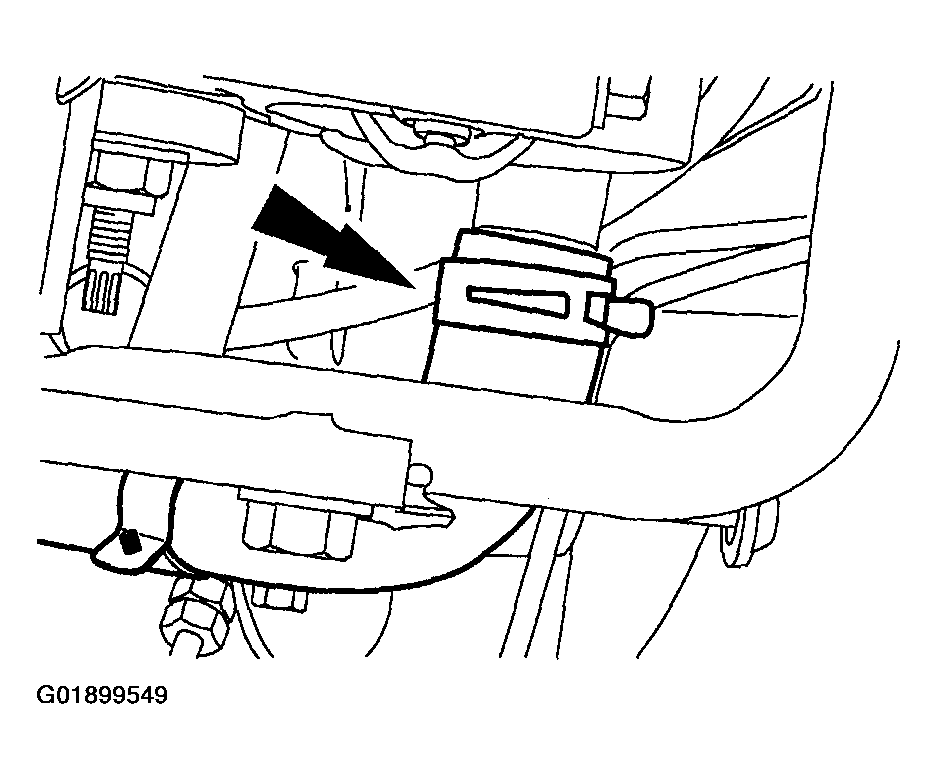

    Fig 1: Disconnecting Heater Hose
    G01899549Courtesy of MAZDA MOTORS CORP.
  2. Disconnect the heater hose and position out of the way.

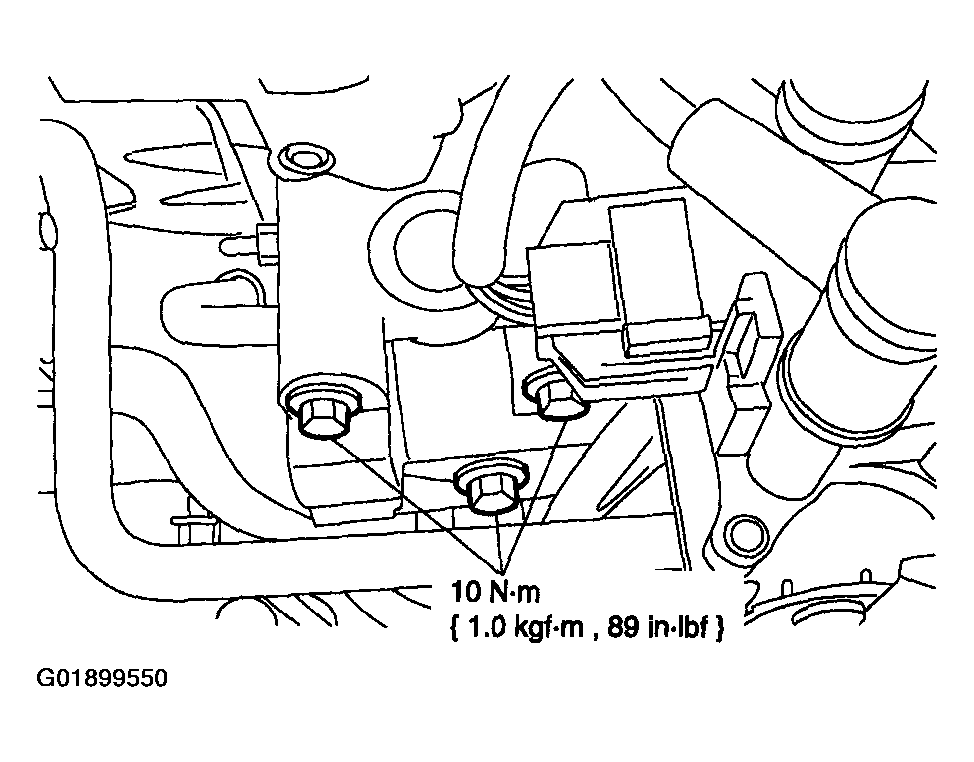

    Fig 2: Removing Thermostat Housing Bolts
    G01899550Courtesy of MAZDA MOTORS CORP.
  3. Remove the thermostat housing.
    NOTE:
    • Clean and inspect the sealing surfaces.
    • To install, reverse the removal procedure.
