Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Drain the engine coolant. Refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .

Fig 1: Removing Three Bolts And Separating Water Outlet Adapter From Thermostat Housing
Courtesy of MAZDA MOTORS CORP.
Remove the three bolts and separate the water outlet adapter from the thermostat housing.
NOTE:
- The thermostat is indexed and must be installed correctly.

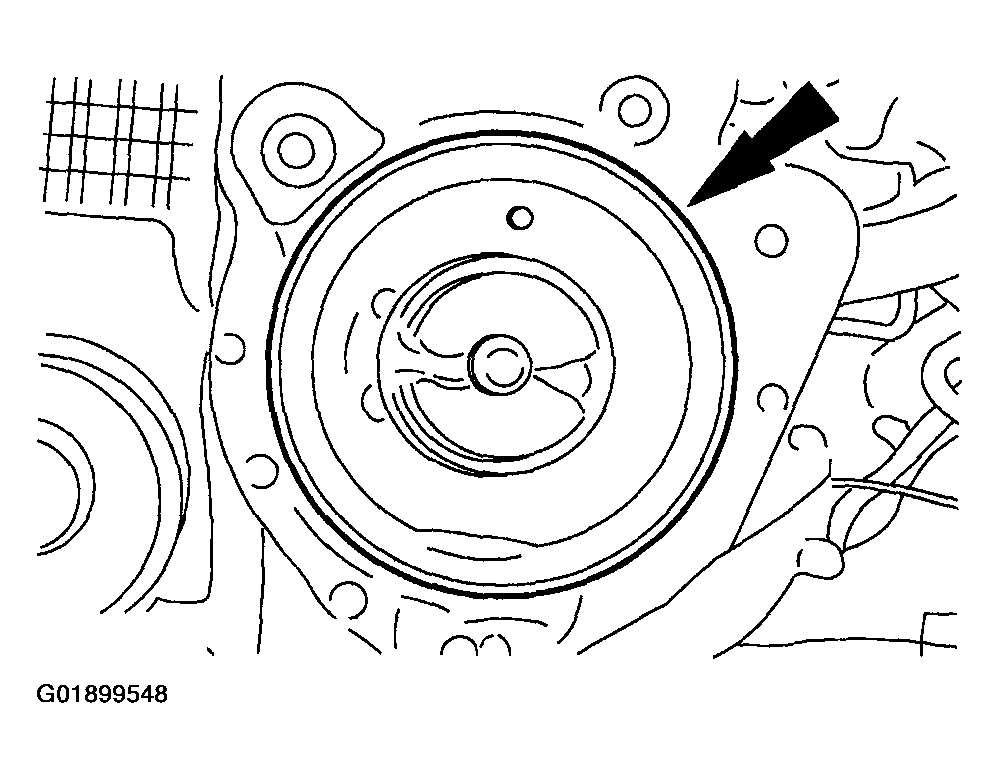

Fig 2: Removing Thermostat And O-Ring Seal

Courtesy of MAZDA MOTORS CORP.

Remove the thermostat and the O-ring seal.
NOTE:
- Clean and inspect the sealing surfaces.
To install, reverse the removal procedure.
