Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Drain the engine cooling system. refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Raise and support the vehicle. .

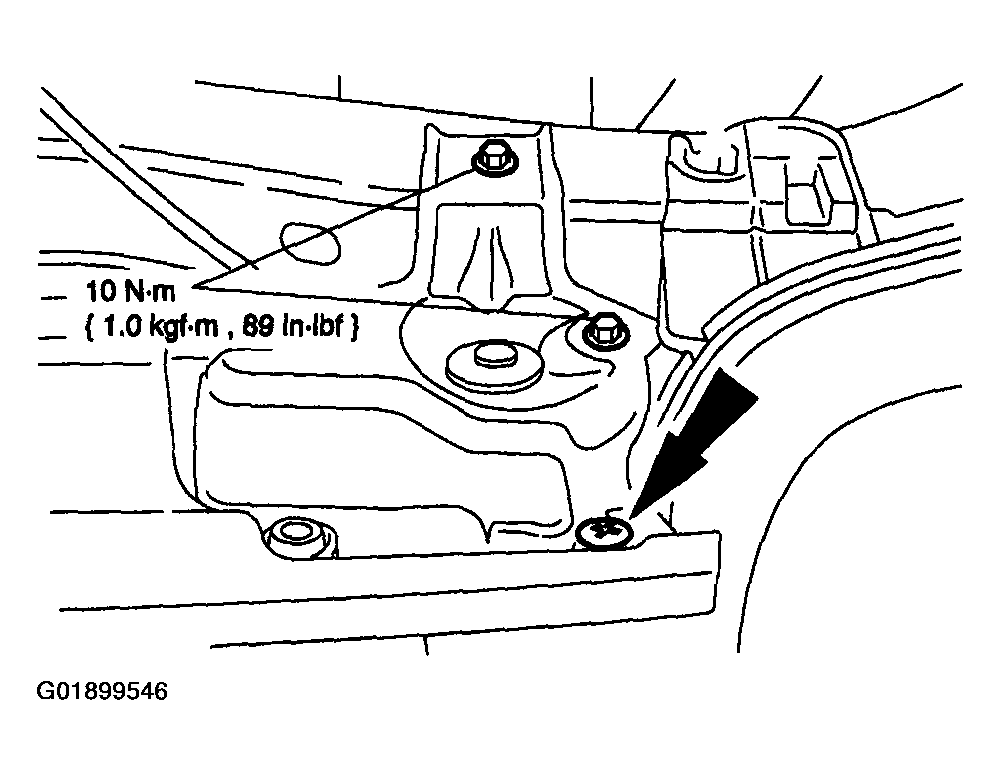

Fig 1: Removing Lower Splash Shields
Courtesy of MAZDA MOTORS CORP.
Remove the lower splash shields.

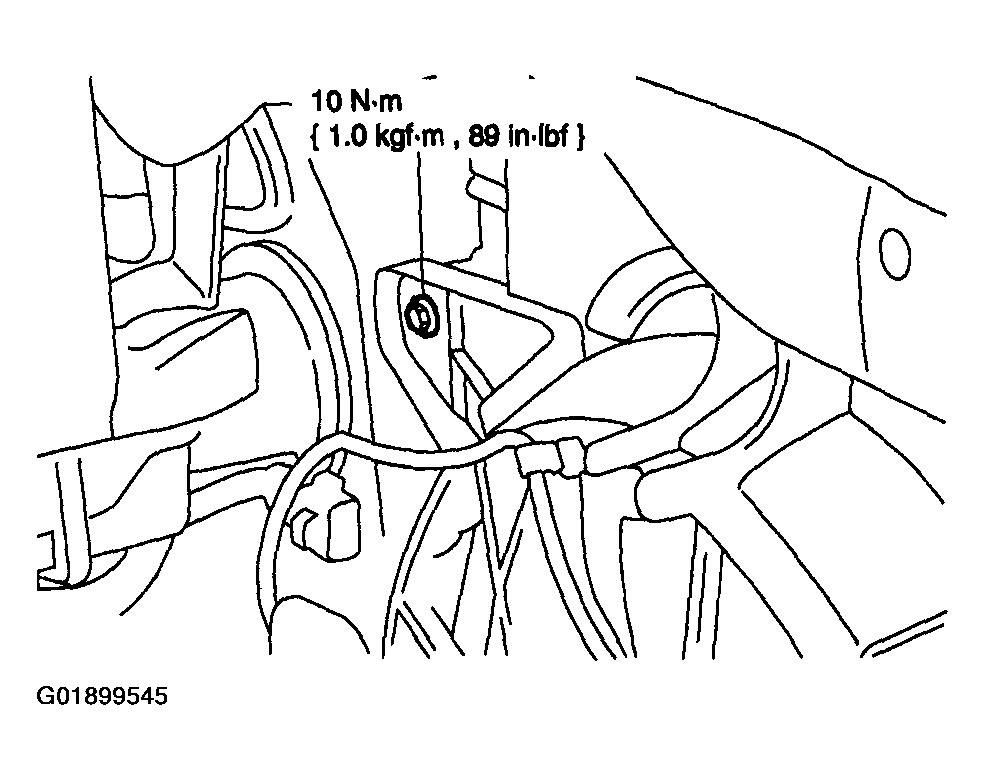

Fig 2: Disconnecting Lower Radiator Hose And Degas Return Hose
Courtesy of MAZDA MOTORS CORP.
Disconnect the lower radiator hose and the degas return hose.

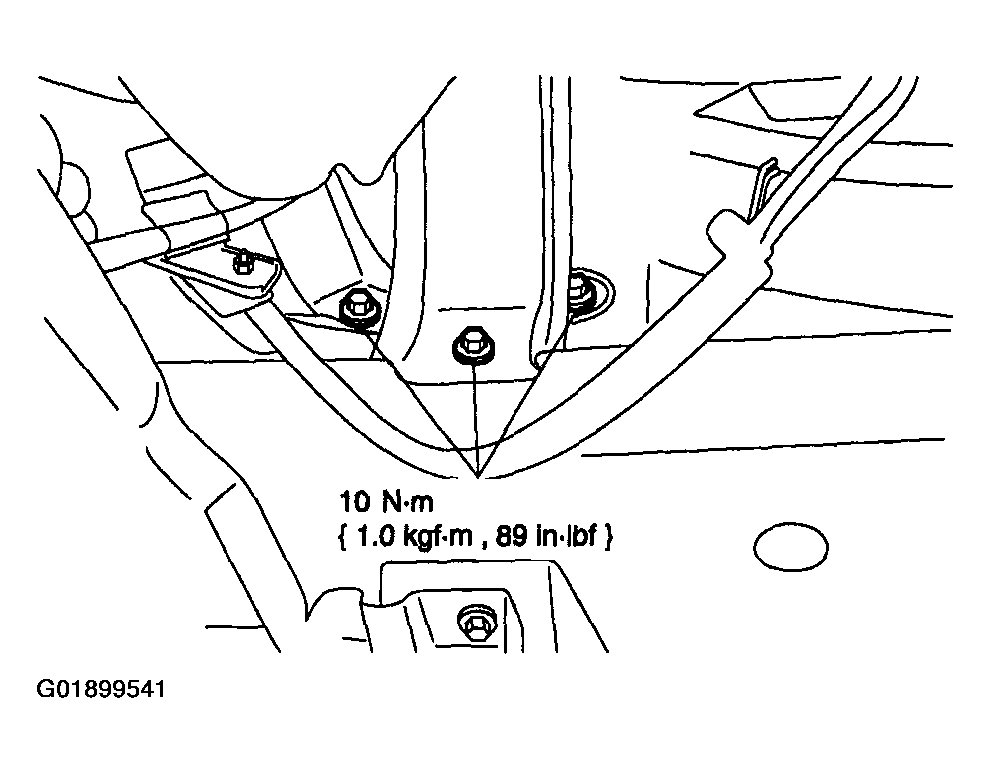

Fig 3: Removing Lower Center Support Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the lower center support bolts.
Lower the vehicle.

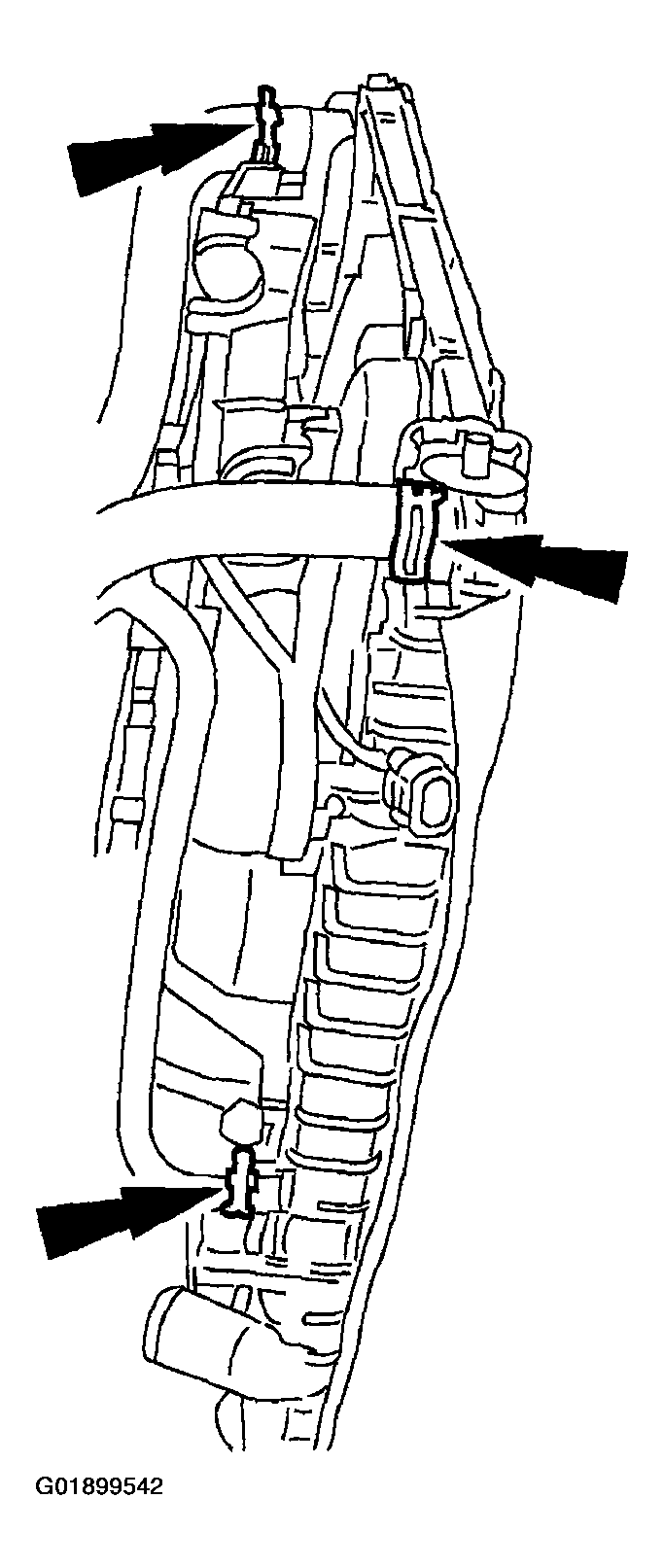

Fig 4: Disconnecting Remaining Coolant Hose Connections
Courtesy of MAZDA MOTORS CORP.
Disconnect the remaining coolant hose connections.

Fig 5: Positioning Hood Latch Assemble Out Of Way
Courtesy of MAZDA MOTORS CORP.
Position the hood latch assemble out of the way. .

Fig 6: Removing Two Bolts And Center Support
Courtesy of MAZDA MOTORS CORP.
Remove the two bolts and the center support.

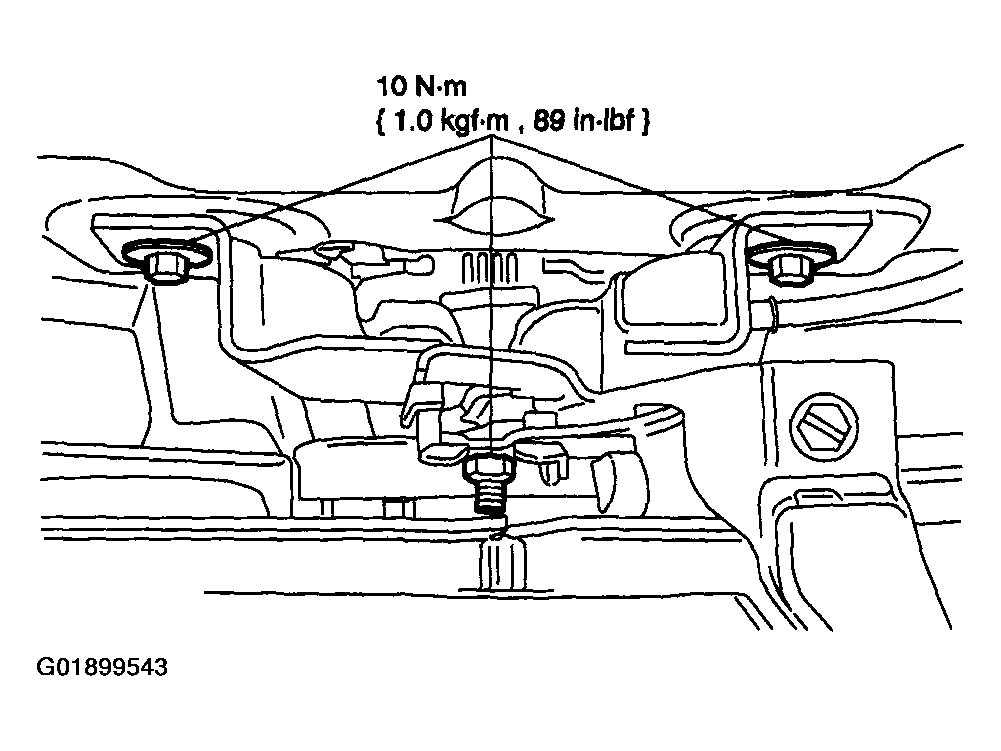

Fig 7: Removing Two Top Bolts Retaining Cooling Fan To Radiator
Courtesy of MAZDA MOTORS CORP.
Remove the two top bolts retaining the cooling fan to the radiator.

Fig 8: Removing Upper Radiator Support Brackets
Courtesy of MAZDA MOTORS CORP.
Remove the upper radiator support brackets, and remove the radiator from the vehicle.
To install, reverse the removal procedure.
