Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery ground cable. .

Fig 1: Positioning Hood Latch Out Of Way
Courtesy of MAZDA MOTORS CORP.
Position the hood latch out of the way. .

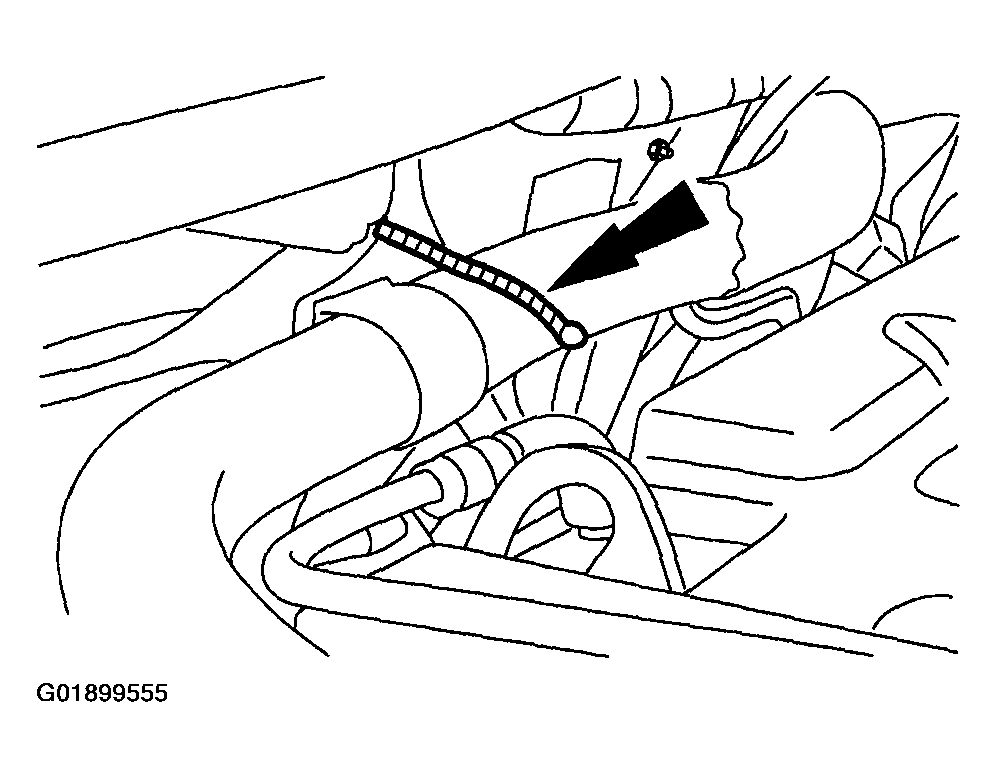

Fig 2: Removing Upper Radiator Tie Strap
Courtesy of MAZDA MOTORS CORP.
If equipped, remove the upper radiator tie strap.
Raise and support the vehicle. .

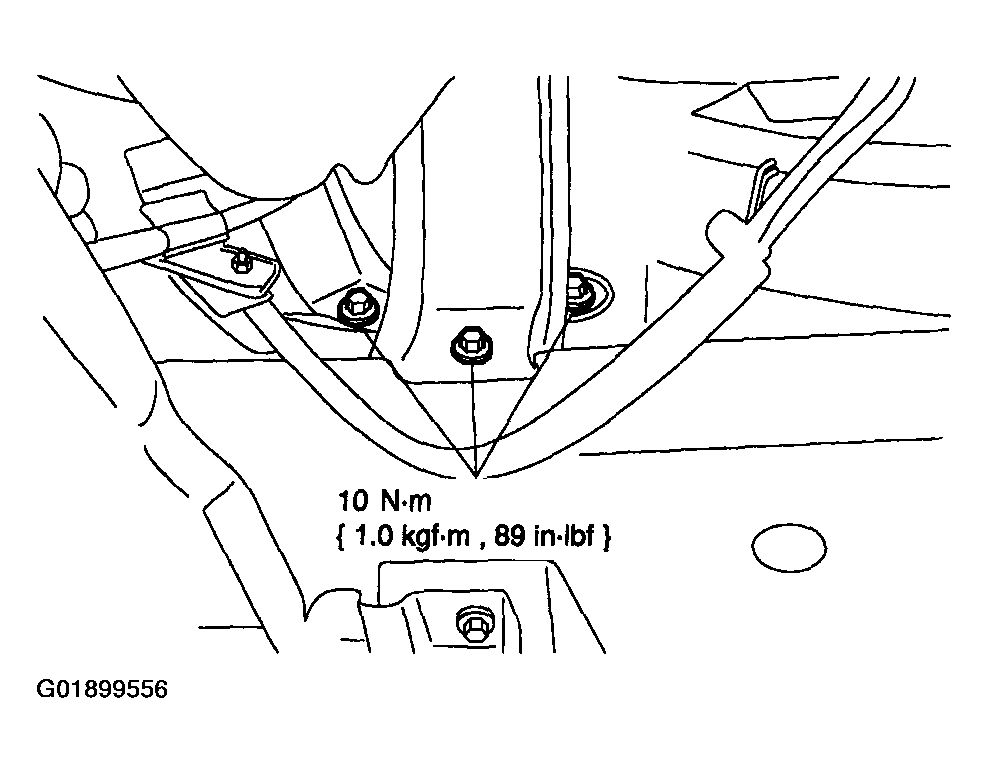

Fig 3: Removing Lower Center Support Bolt And Lower Fan Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the lower center support bolt and the lower fan bolts.
Lower the vehicle.

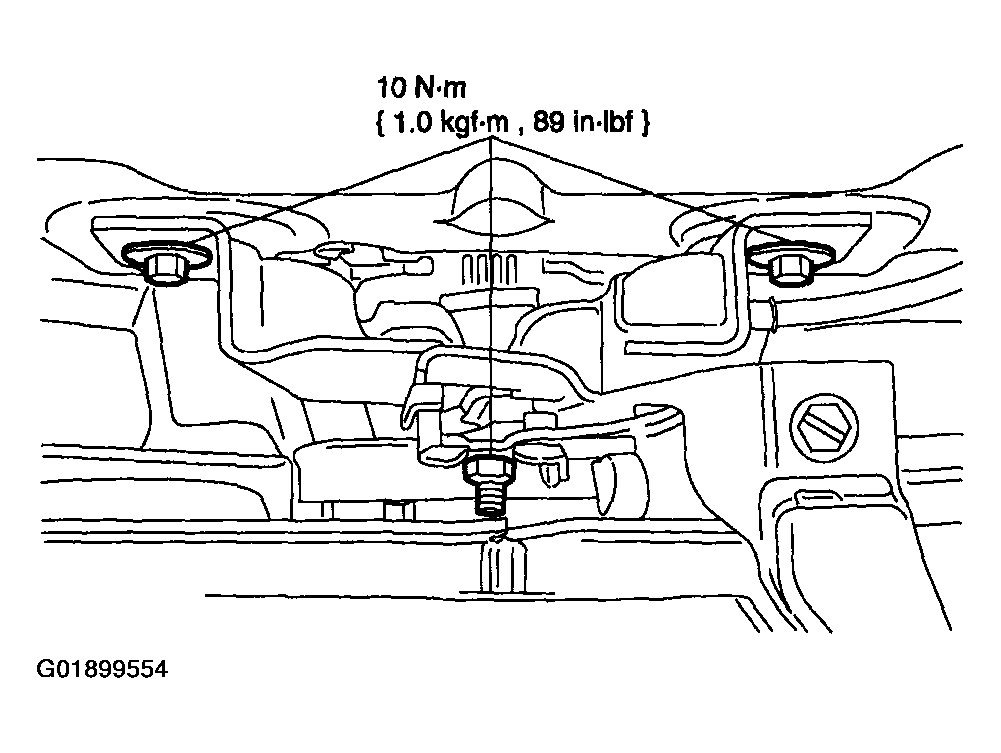

Fig 4: Removing Upper Center Support Bolt And Upper Center Support
Courtesy of MAZDA MOTORS CORP.
Remove the upper center support bolt and the upper center support.

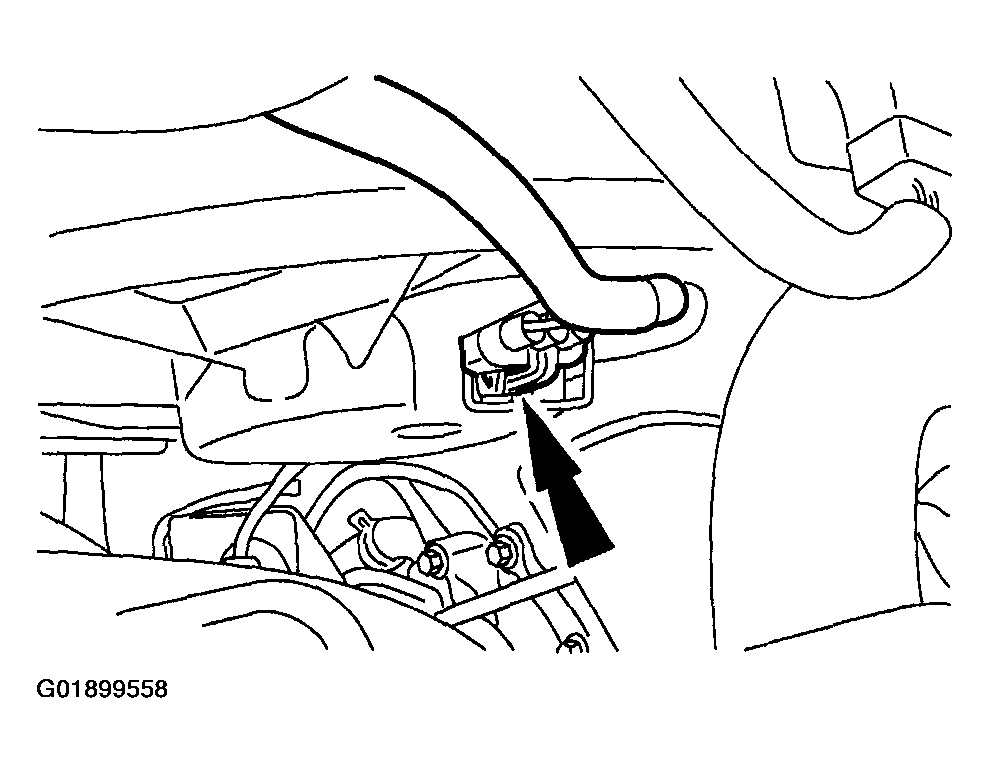

Fig 5: Disconnecting LH Fan Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the LH fan electrical connector.

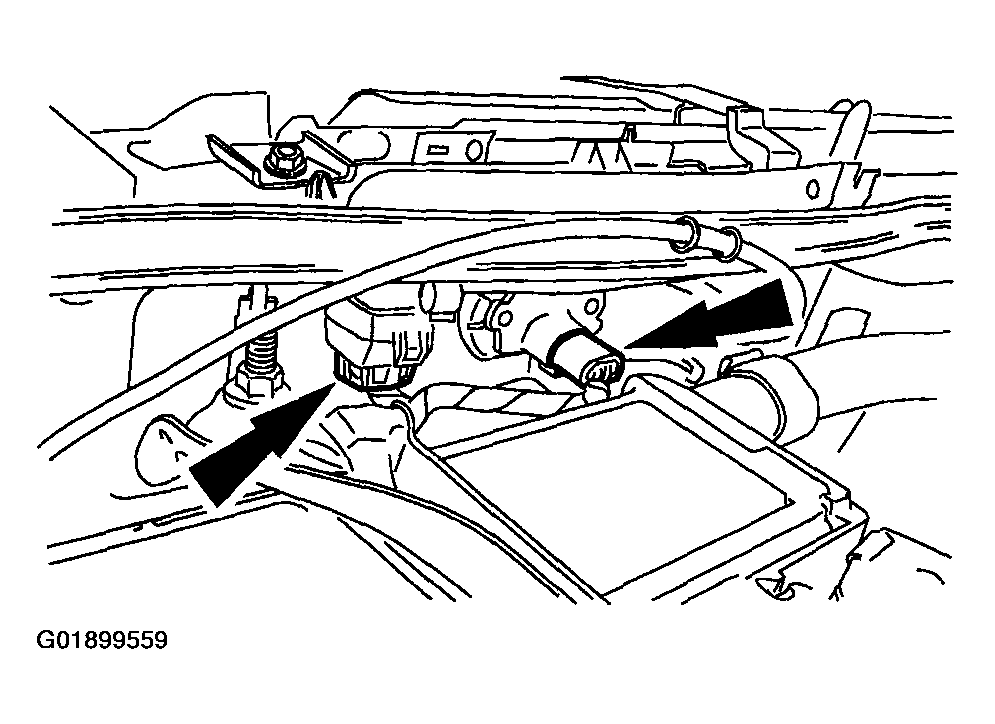

Fig 6: Disconnecting Cooling Fan Resistor And Cooling Fan Relay Electrical Connectors
Courtesy of MAZDA MOTORS CORP.
If equipped, disconnect the cooling fan resistor and the cooling fan relay electrical connectors.

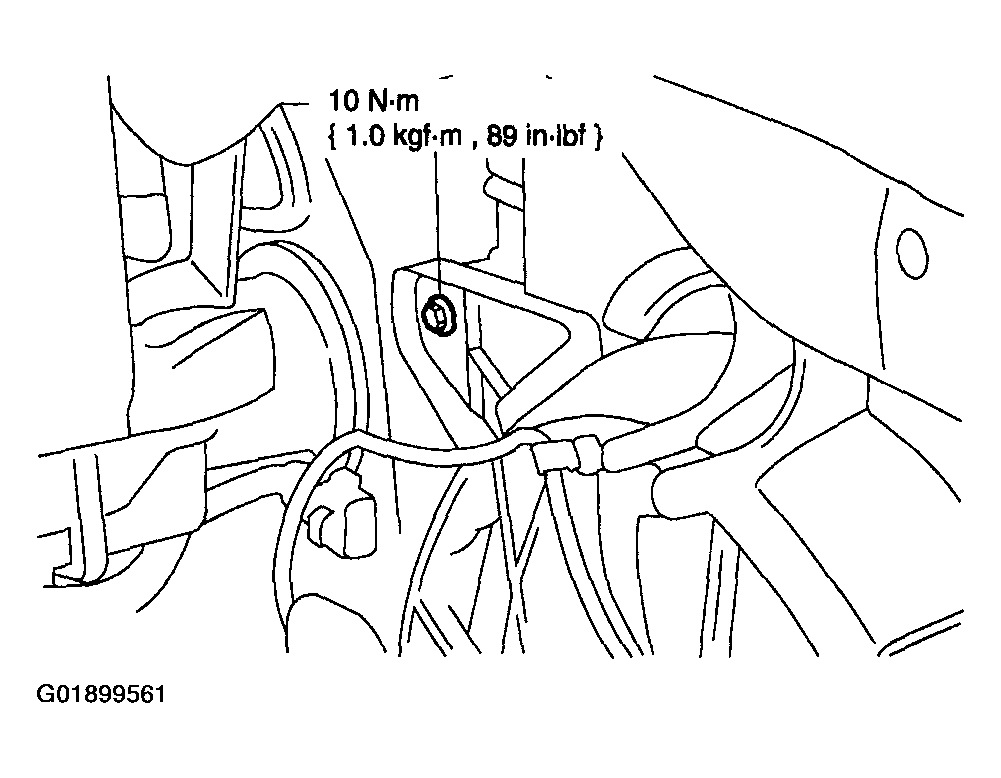

Fig 7: Removing LH And RH Upper Radiator Supports
Courtesy of MAZDA MOTORS CORP.
Remove the LH and RH upper radiator supports.
Tilt the radiator forward for clearance.

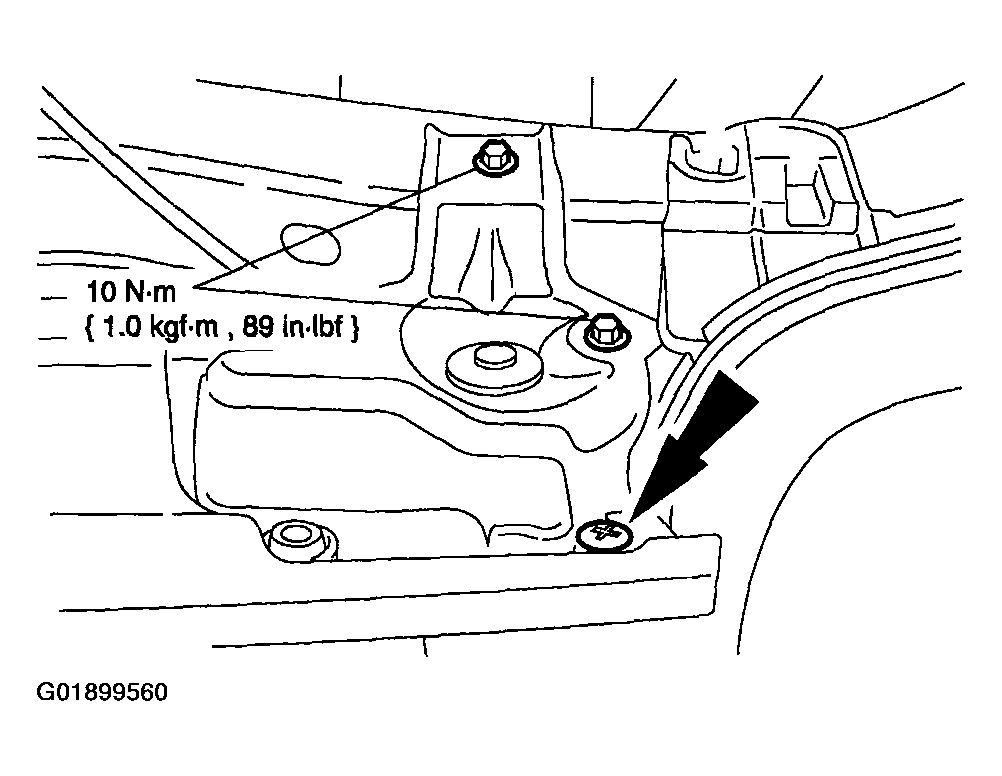

Fig 8: Removing Five Bolts And LH Cooling Fan
Courtesy of MAZDA MOTORS CORP.
Remove the five bolts and the LH cooling fan.

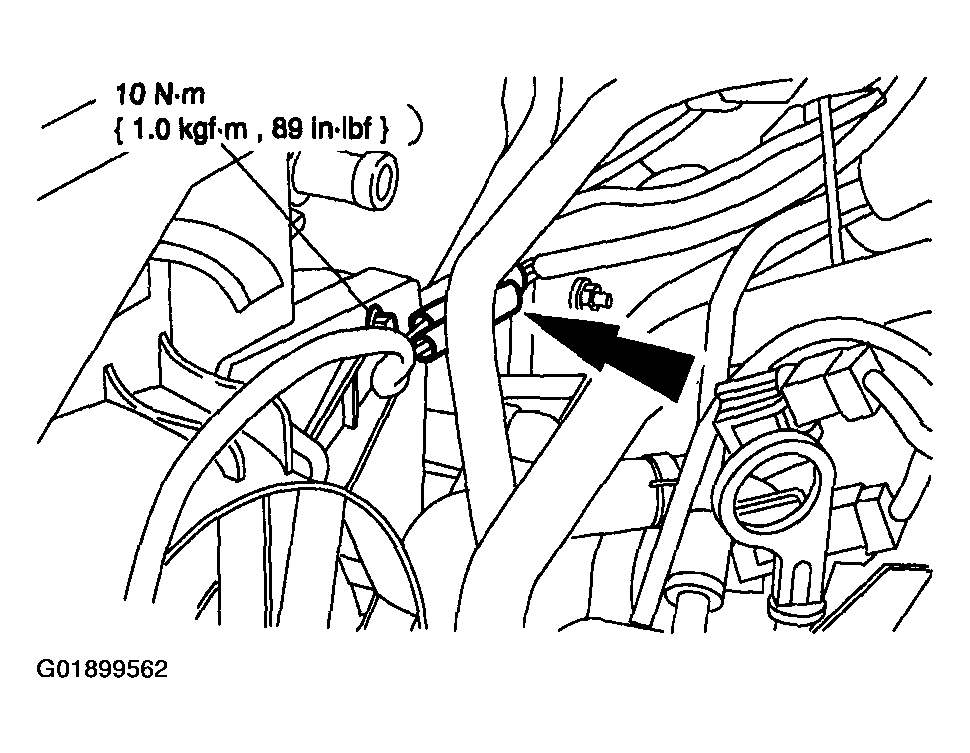

Fig 9: Removing Bolt And Disconnect Electrical Connector
Courtesy of MAZDA MOTORS CORP.
If necessary remove the bolt and disconnect the electrical connector, remove the RH fan.
To install, reverse the removal procedure.
