Removal and Installation

WARNING: This page is about a different variant/trim than selected.

Drain the cooling system. refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING .
Raise the vehicle. .

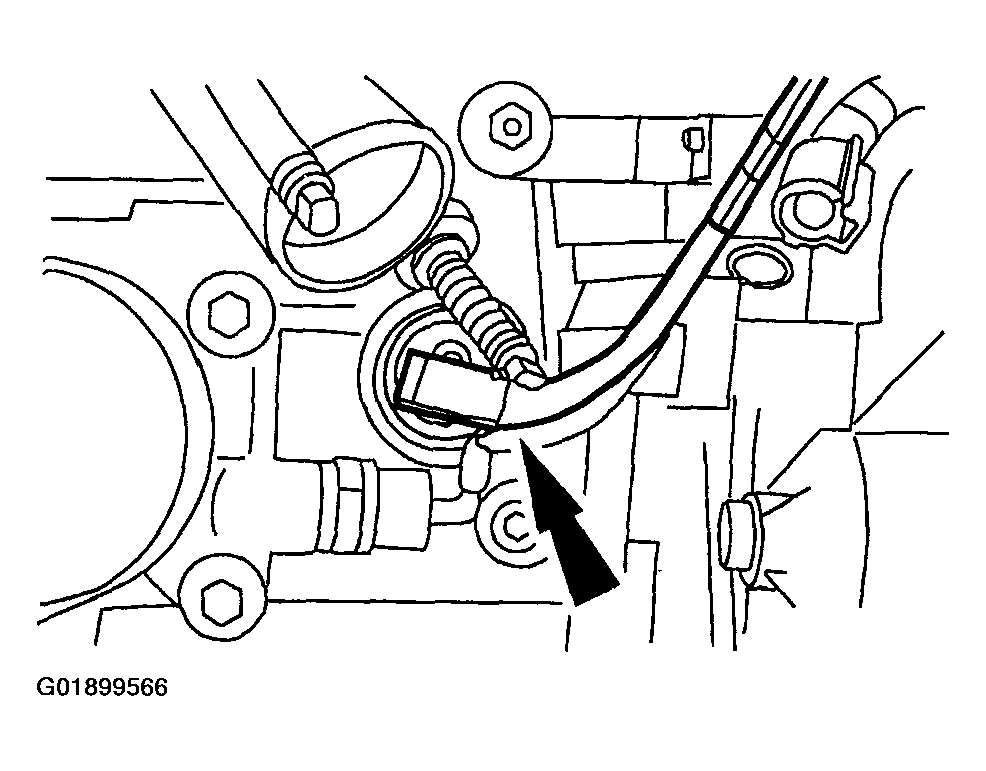

Fig 1: Disconnecting Block Heater Power Cable From Block Heater
Courtesy of MAZDA MOTORS CORP.
Disconnect the block heater power cable from the block heater.

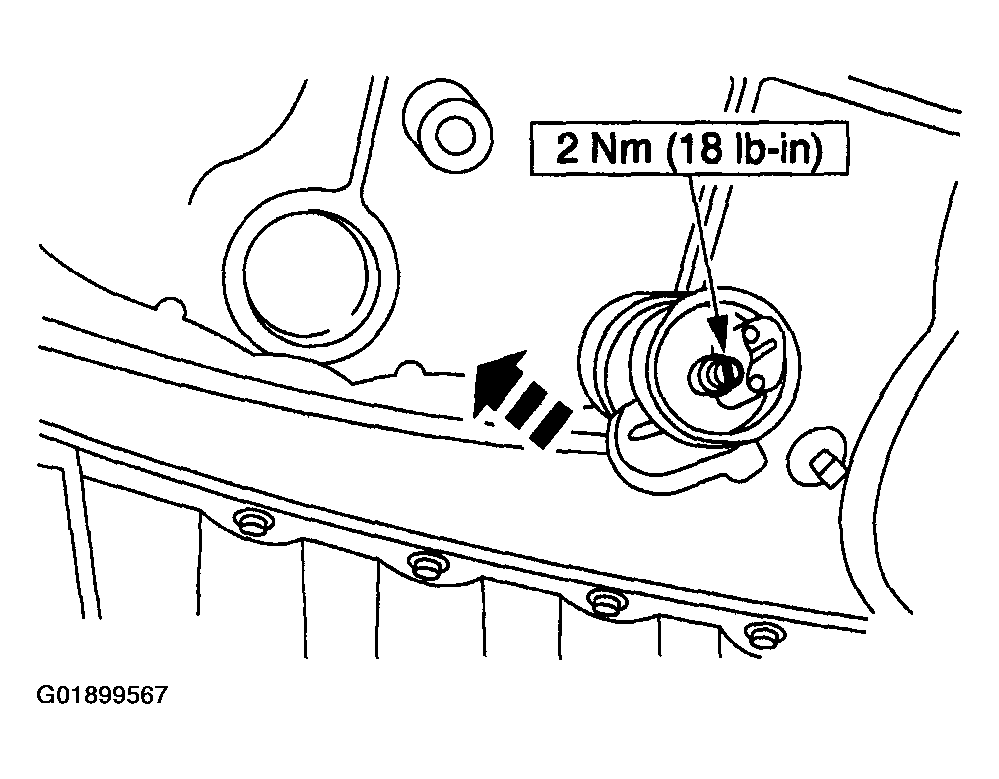

Fig 2: Removing Block Heater
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not loosen the block heater retaining screw more than necessary for removal.
Remove the block heater.
CAUTION:
- Make sure the power cable is routed and secured away from rotating or hot components or damage to the cable may occur.
To install, reverse the removal procedure.
