Section 3 (Technical Data (Transmission))
>>
Specifications
>>
Automatic Transaxle
>>
Low/Reverse Clutch Pack Clearance
Low/Reverse Clutch Pack Clearance
WARNING:
This page is about a different variant/trim than selected.

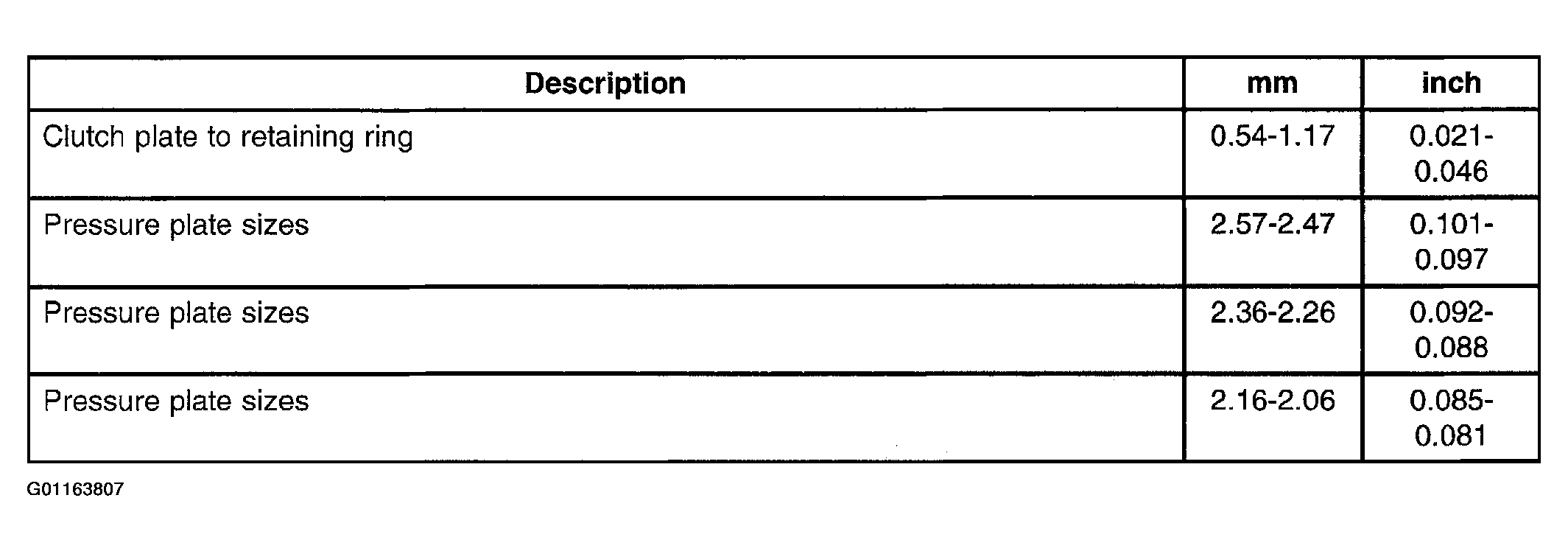

Fig 1: Low/Reverse Clutch Pack Clearance
Courtesy of MAZDA MOTORS CORP.
