Piston - Pin Connecting Rod Assembly, Press Fit: Disassembly

WARNING: This page is about a different variant/trim than selected.
  1. Use the Piston Pin Tool (SST 303-S024) to press the piston pin out from the piston assembly and connecting rod.

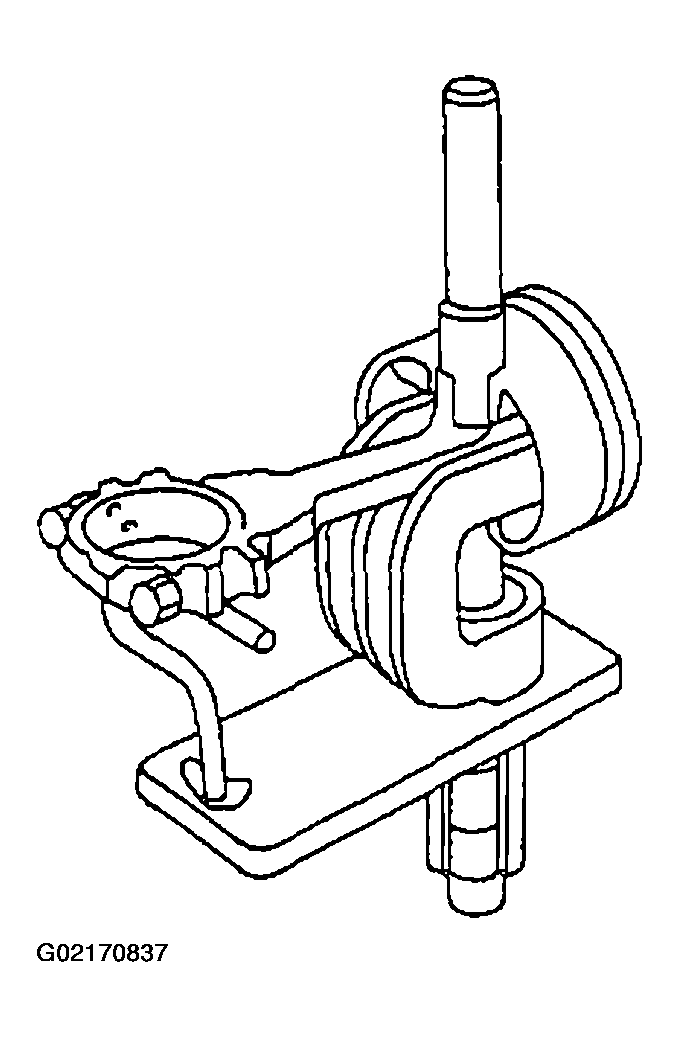

    Fig 1: Removing Piston Pin
    G02170837Courtesy of MAZDA MOTORS CORP.
  2. Remove the connecting rod and piston rings from the piston.

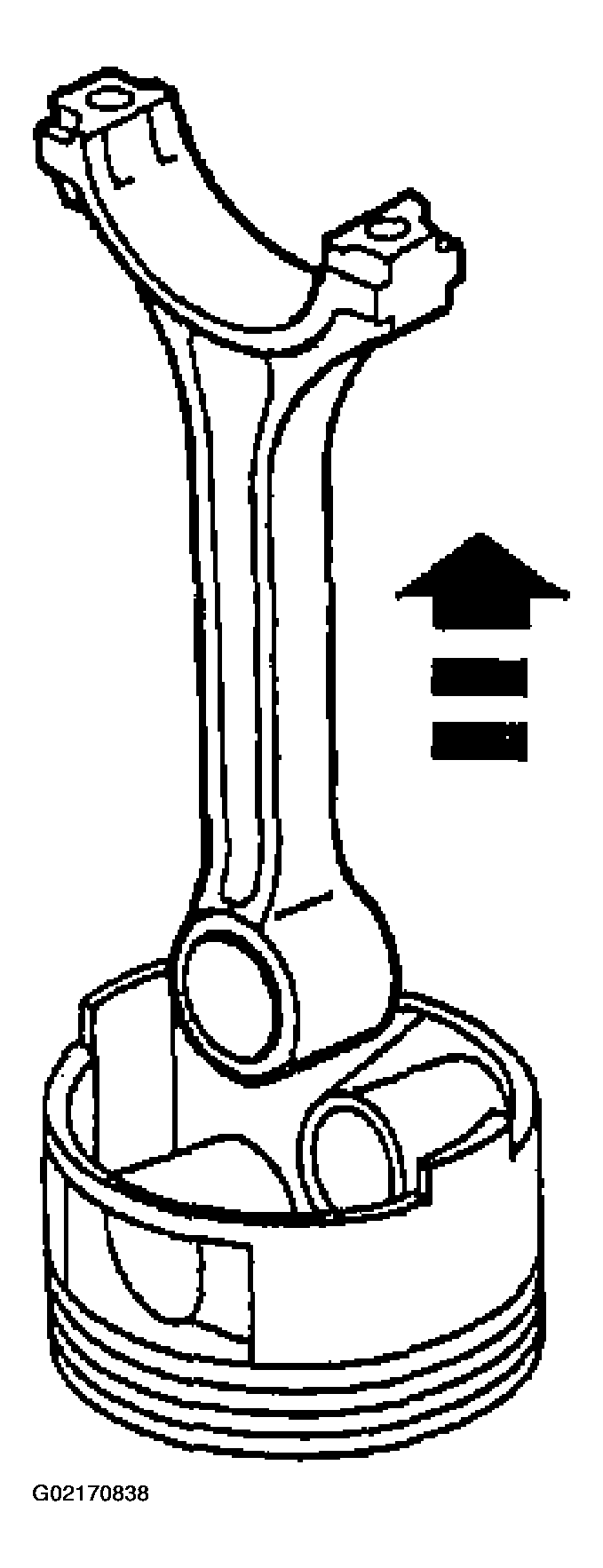

    Fig 2: Removing Connecting Rod & Piston Rings
    G02170838Courtesy of MAZDA MOTORS CORP.
  3. Clean and inspect the piston, piston pin and connecting rod. See MECHANICAL - GENERAL INSPECTION .
