Valve - Spring Installed Length

WARNING: This page is about a different variant/trim than selected.
  1. Measure the installed length of each valve spring. Refer to SPECIFICATIONS .
    1. If out of specification, install new components.

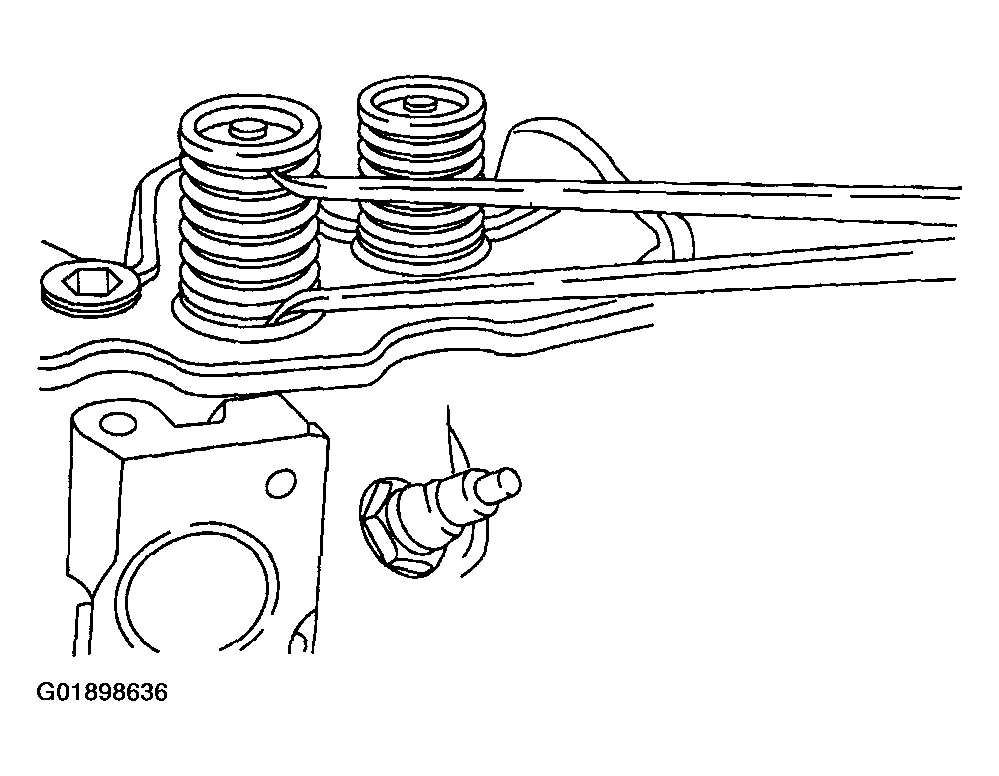

      Fig 1: Measuring Valve Spring Installed Length
      G01898636Courtesy of MAZDA MOTORS CORP.
