Piston - Ring-To-Groove Clearance

WARNING: This page is about a different variant/trim than selected.
  1. Inspect for a step in the grooves.
    Fig 1: Inspecting Piston Ring Groove
    G01898652Courtesy of MAZDA MOTORS CORP.
  2. Measure the piston ring-to-groove clearance. Refer to SPECIFICATIONS .
    1. If out of specification, install new components as necessary.

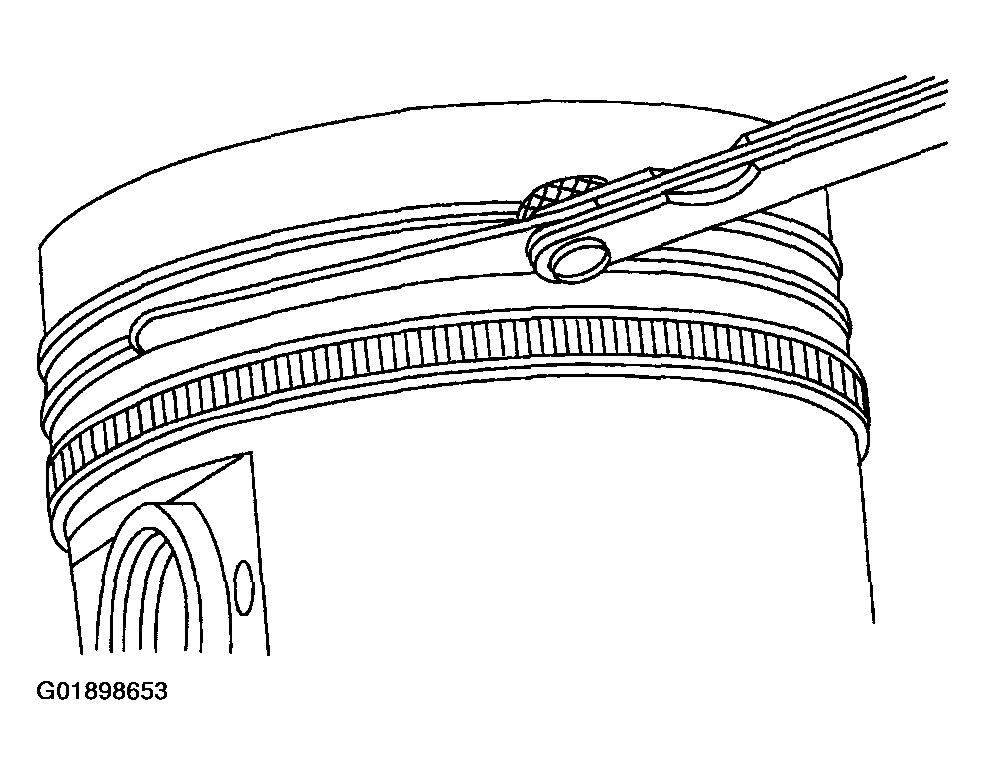

    Fig 2: Measuring Piston Ring-To-Groove Clearance
    G01898653Courtesy of MAZDA MOTORS CORP.
