Piston - Ring End Gap

WARNING: This page is about a different variant/trim than selected.

CAUTION: Use care when fitting piston rings to avoid possible damage to the piston ring or the cylinder bore.

CAUTION: Piston rings should not be transferred from one piston to another.

NOTE: Cylinder bore must be within specification for taper and out-of-round.

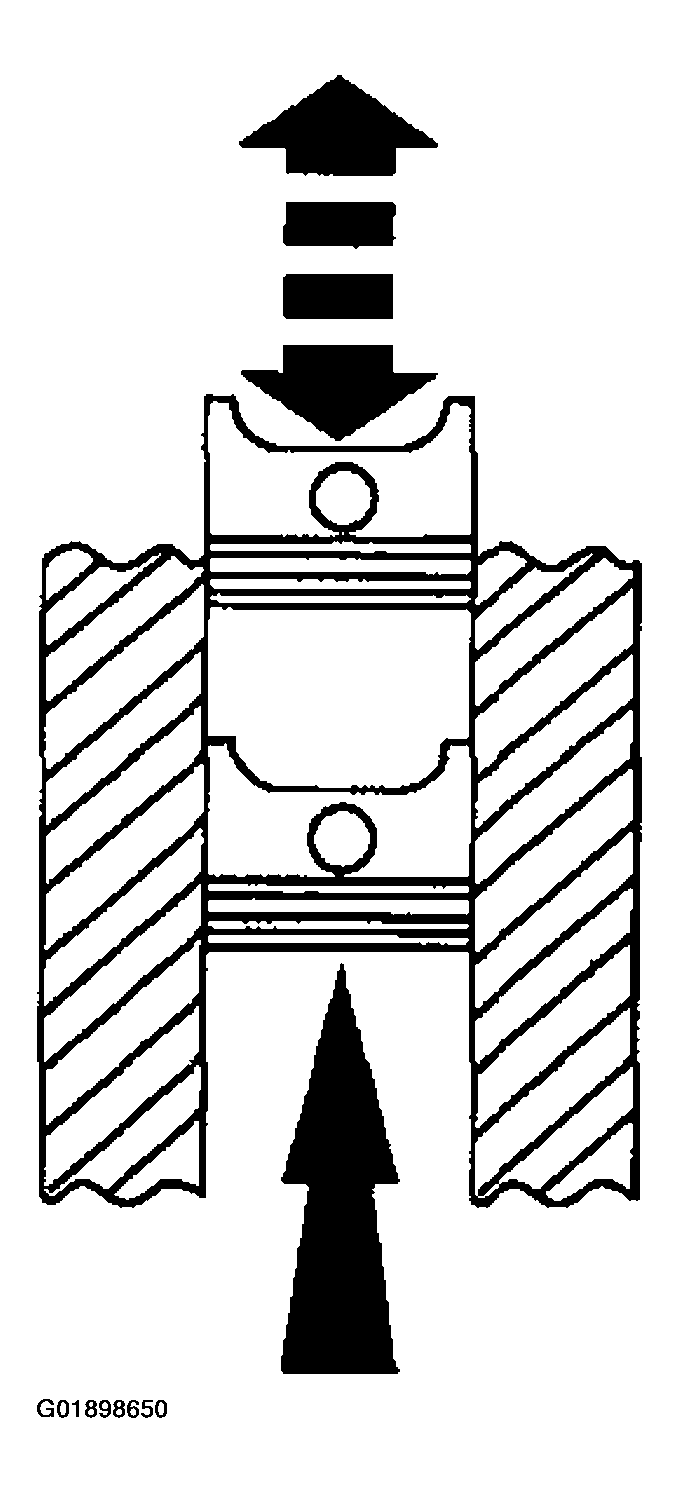

Use a piston without rings to push a piston ring in a cylinder to the bottom of ring travel.

Fig 1: Checking Piston Ring Travel
Courtesy of MAZDA MOTORS CORP.

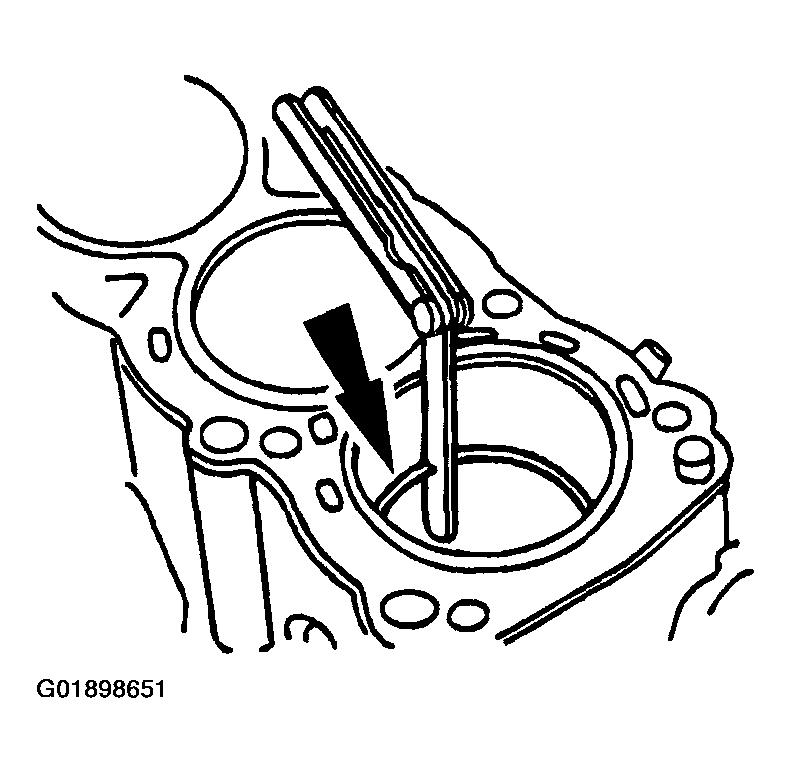

Use a feeler gauge to measure the top piston ring end gap and the second piston ring end gap. Refer to SPECIFICATIONS .

Fig 2: Measuring Piston Ring End Gap
Courtesy of MAZDA MOTORS CORP.
