Camshaft Journal - Clearance, PLASTIGAGE Method

WARNING: This page is about a different variant/trim than selected.
NOTE: The camshaft journals must meet specifications before checking camshaft journal clearance.
  1. Remove the camshaft bearing cap and lay Plasti-gage across the surface.
    2. NOTE: Do not turn the camshaft while carrying out this procedure.
  2. Position the camshaft bearing cap and install the bolts.
  3. Use Plastigage to verify the camshaft journal clearance. Refer to SPECIFICATIONS .
    1. If it is out of specification, install new components as necessary.

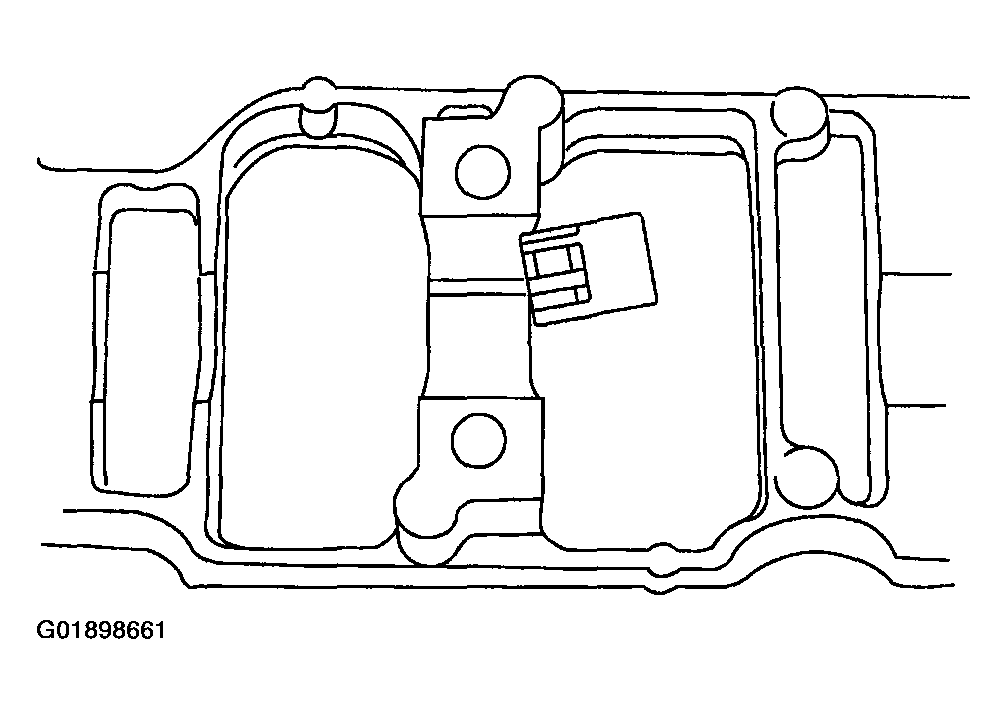

      Fig 1: Measuring Camshaft Journal Clearance
      G01898661Courtesy of MAZDA MOTORS CORP.
