Section 2 (Engine Mechanical - 2.0L): Flywheel: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the clutch. Refer to CLUTCH ASSEMBLY .
  2. Remove the bolts and the flywheel.

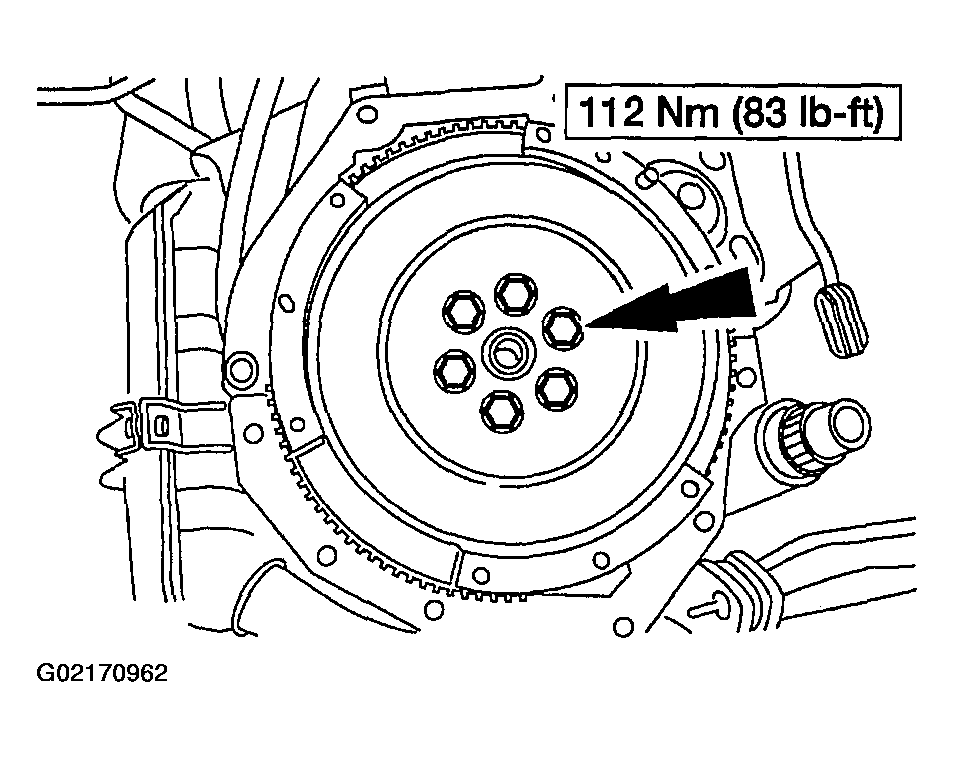

    Fig 1: Removing/Installing flywheel
    G02170962Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
