Engine - Manual Transaxle: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Clutches and brakes contain asbestos fibers. Avoid breathing dust. Breathing asbestos dust may cause asbestosis and cancer.
WARNING: Dust and dirt present on wheel brake and clutch assemblies may contain asbestos fibers that are hazardous to your health when made airborne by cleaning with compressed air or by dry brushing. Failure to follow these instructions may result in personal injury.
WARNING: Wheel brake assemblies and clutch facings should be cleaned using a vacuum cleaner recommended for use with asbestos fibers such as brake/clutch/service vacuum 164-R3600. Dust and dirt from vacuum should be disposed of in a manner that prevents dust exposure such as sealed bags. The bag must be labeled as per OSHA instructions and the trash hauler notified as to the bag's contents. Failure to follow these instructions may result in personal injury.
WARNING: If a vacuum suitable for asbestos is not available, cleaning should be done wet. If dust generation is still possible, technicians should wear government approved toxic dust purifying respirators. Failure to follow these instructions may result in personal injury.
WARNING: Grinding or sanding on brake linings, pads, rotors, drums or clutch facings should be done only while using correctly exhaust-ventilated equipment. Failure to follow these instructions may result in personal injury.
WARNING: OSHA requires areas where asbestos dust generation is possible to be isolated and posted with warning signs. Only technicians concerned with carrying out brake or clutch repair should be present in the area. Failure to follow these instructions may result in personal injury.
  1. Remove the hood.
  2. Relieve the fuel system pressure. Refer to FUEL SYSTEM PRESSURE RELEASE .
  3. Remove the battery tray.
  4. Remove the air cleaner assembly.
  5. Drain the engine coolant.
  6. Recover the A/C system refrigerant. Refer to REFRIGERANT RECOVERY/RECYCLING .

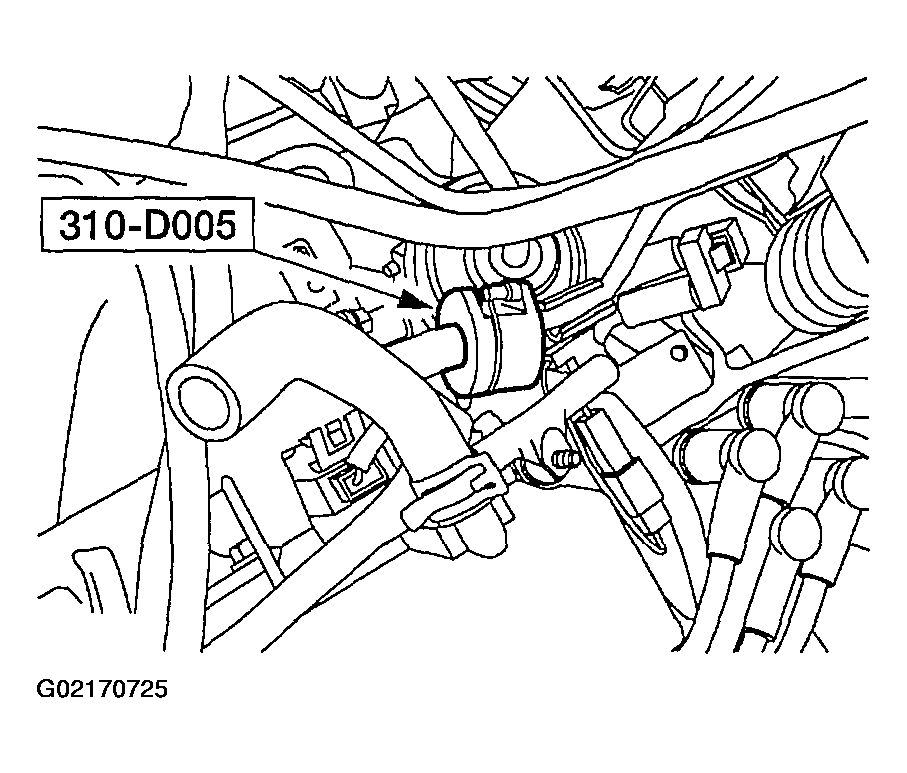

  7. Using the special tool, disconnect the fuel line.
    Fig 1: Disconnecting Fuel Line
    G02170725Courtesy of MAZDA MOTORS CORP.
  8. Disconnect the throttle cables and the cruise control cable (if equipped).

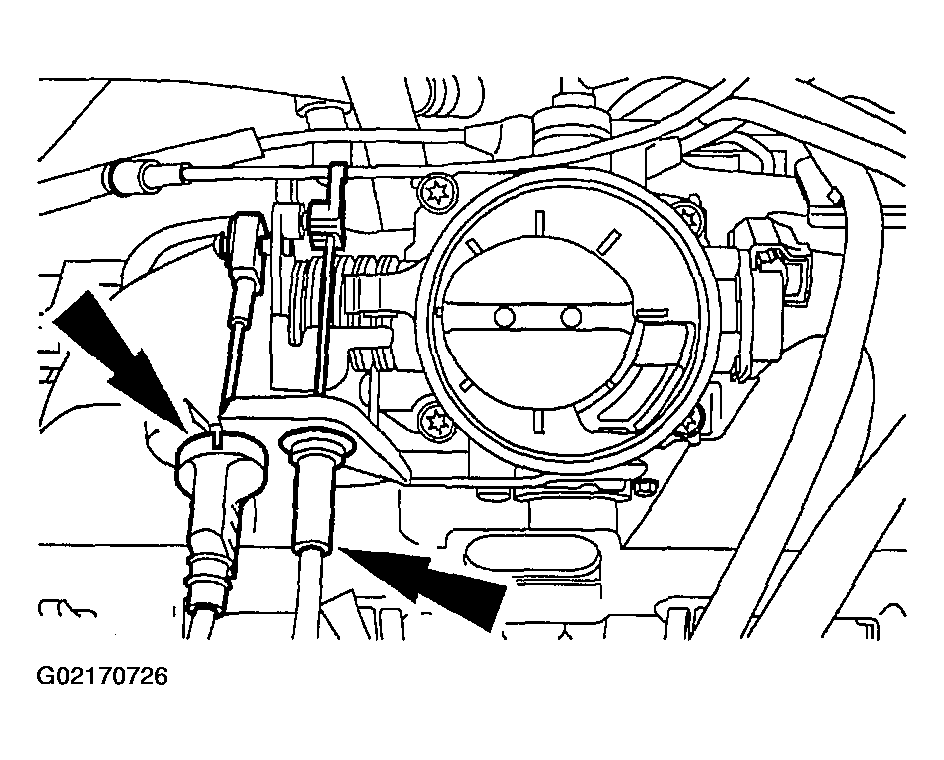

    Fig 2: Disconnecting Throttle Cables & Cruise Control Cable
    G02170726Courtesy of MAZDA MOTORS CORP.
  9. Disconnect the Exhaust Gas Recirculation (EGR) vacuum regulator valve.
    1. Disconnect the electrical connector.
    2. Disconnect the vacuum hoses.

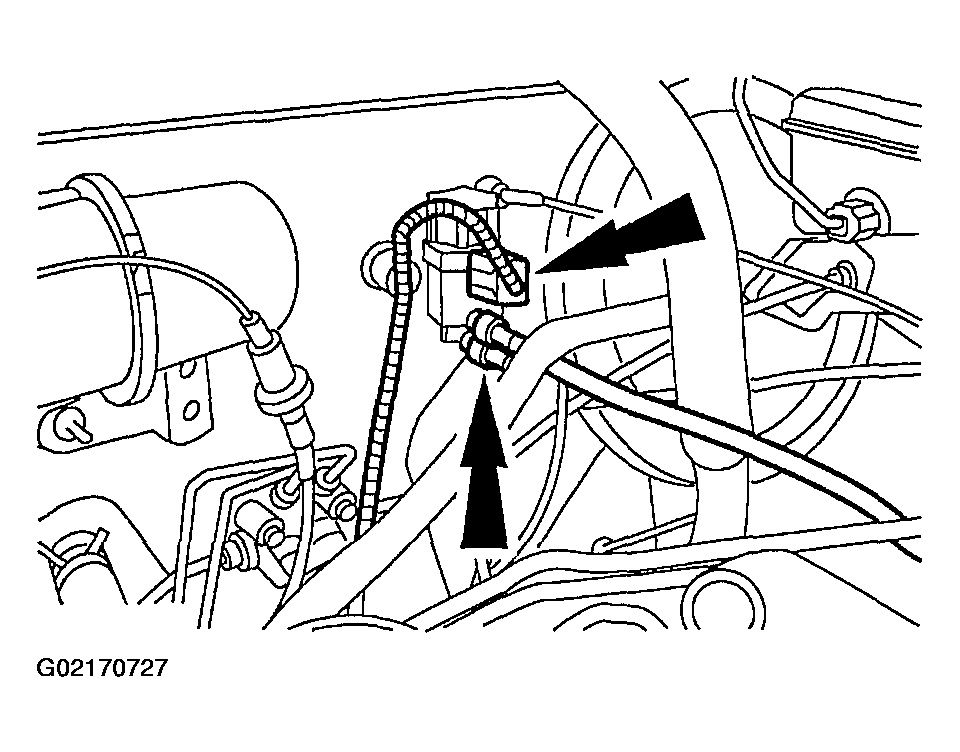

    Fig 3: Disconnecting Exhaust Gas Recirculation Valve
    G02170727Courtesy of MAZDA MOTORS CORP.

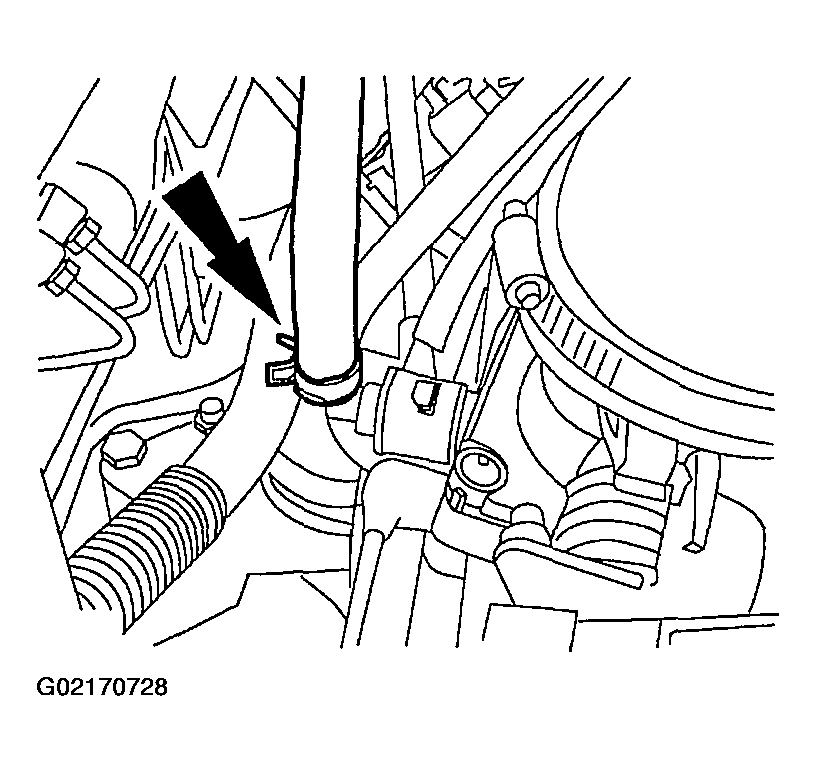

  10. Disconnect the brake booster vacuum supply hose.
    Fig 4: Disconnecting Brake Booster Vacuum Supply Hose
    G02170728Courtesy of MAZDA MOTORS CORP.
  11. Disconnect the Powertrain Control Module (PCM) wire harness and ground.

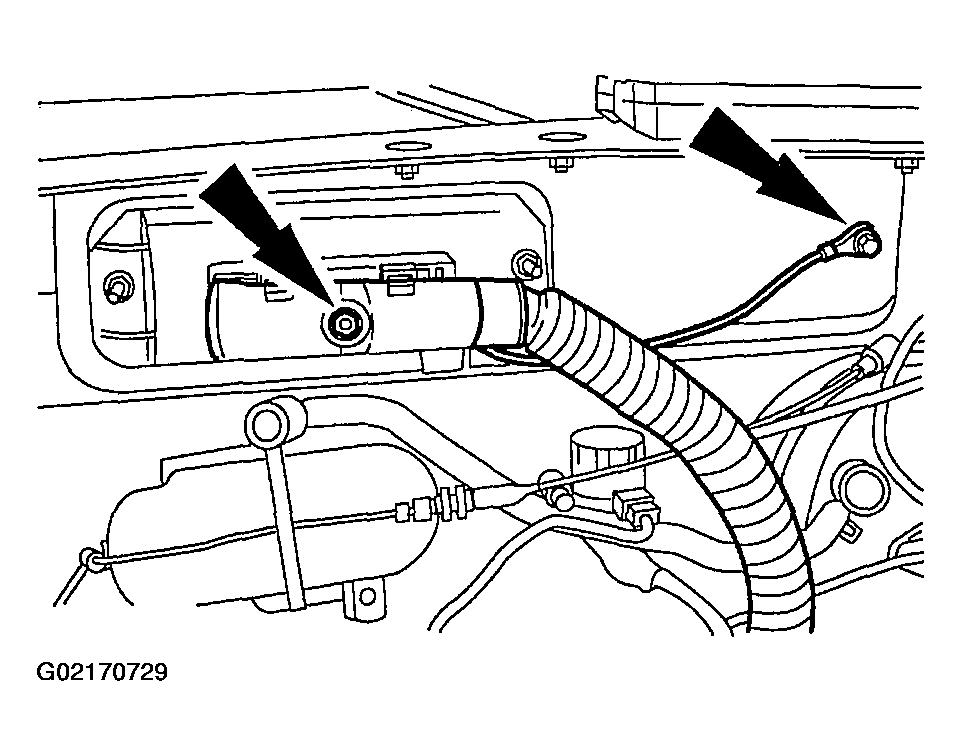

    Fig 5: Disconnecting Powertrain Control Module Wire Harness & Ground
    G02170729Courtesy of MAZDA MOTORS CORP.

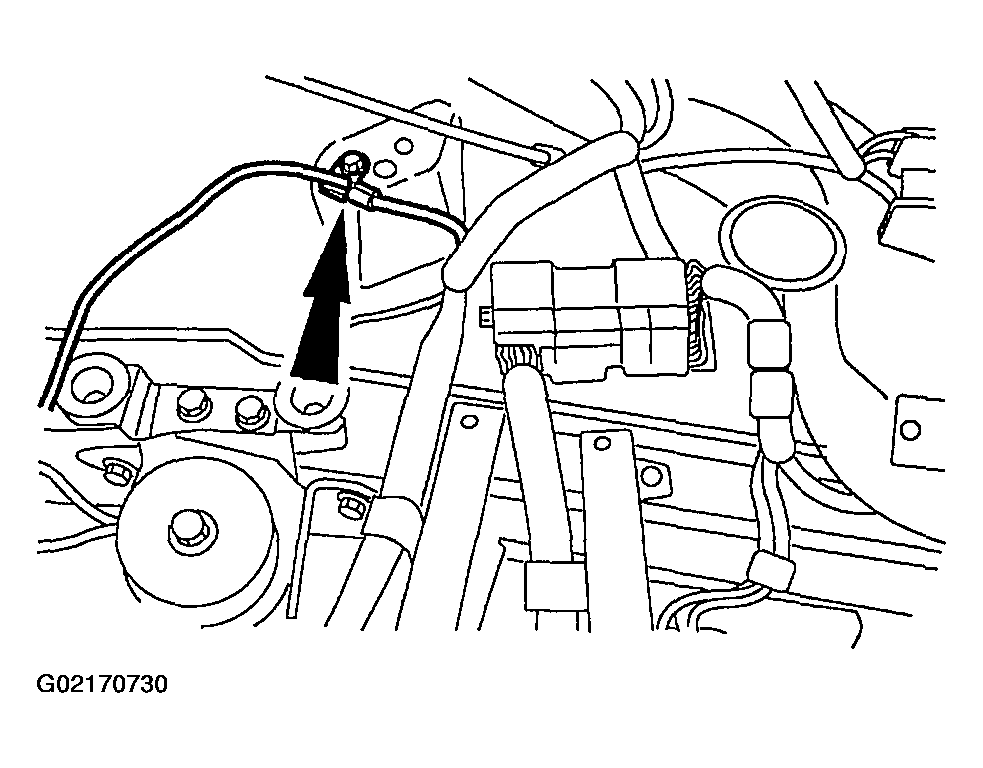

  12. Disconnect the ground wire.
    Fig 6: Disconnecting Ground Wire
    G02170730Courtesy of MAZDA MOTORS CORP.
  13. Disconnect the wire harness connector.

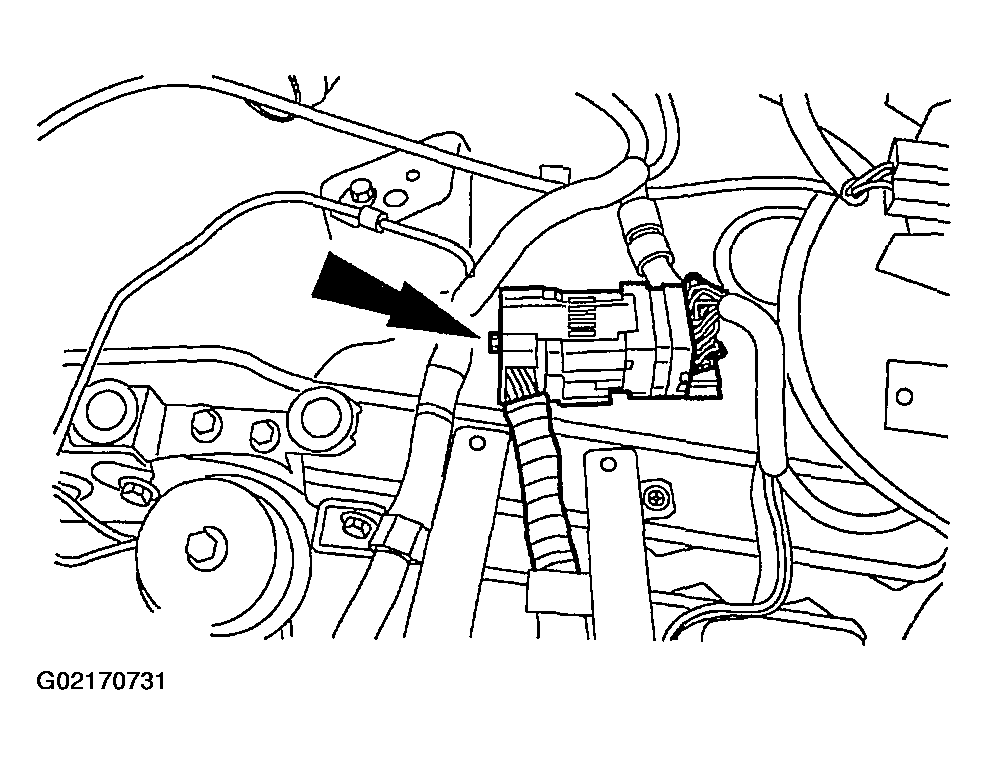

    Fig 7: Disconnecting Wire Harness Connector
    G02170731Courtesy of MAZDA MOTORS CORP.
  14. Disconnect the power distribution box electrical connectors.

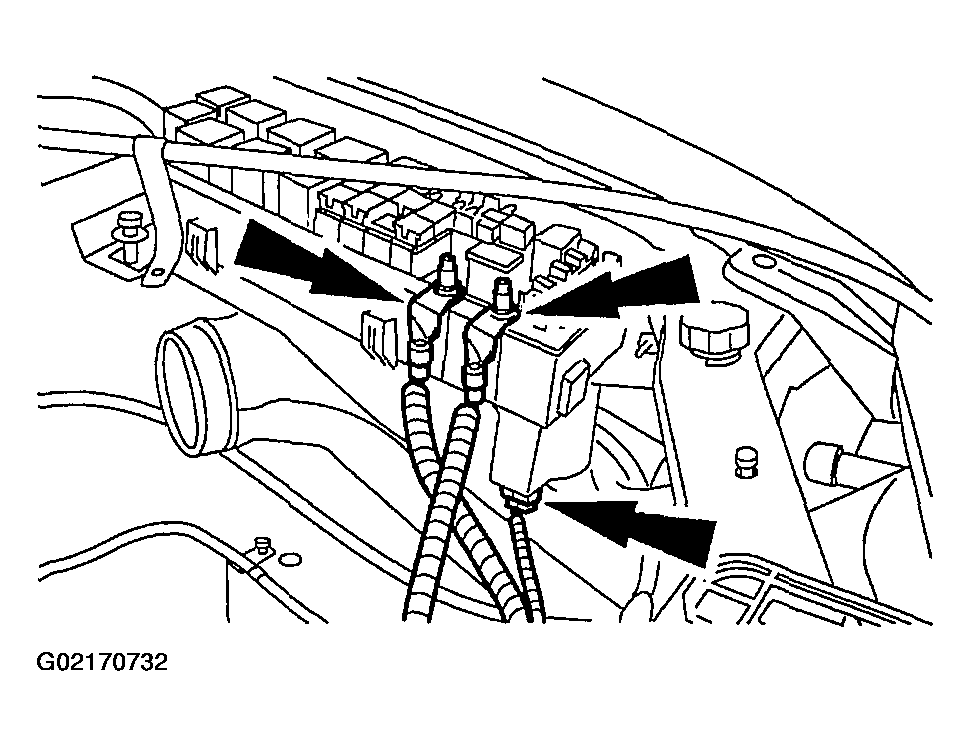

    Fig 8: Disconnecting Power Distribution Box Electrical Connectors
    G02170732Courtesy of MAZDA MOTORS CORP.

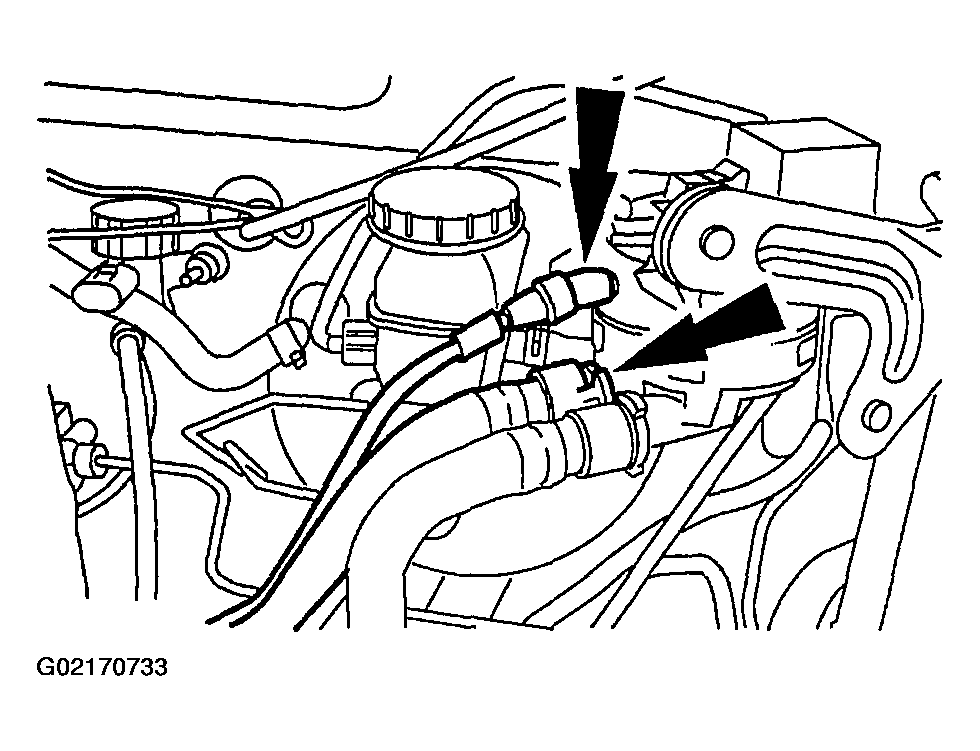

  15. Disconnect the vacuum lines at the Evaporative Emission (EVAP) canister.
    Fig 9: Disconnecting Evaporative Emission Canister
    G02170733Courtesy of MAZDA MOTORS CORP.
  16. Disconnect the upper radiator hose.

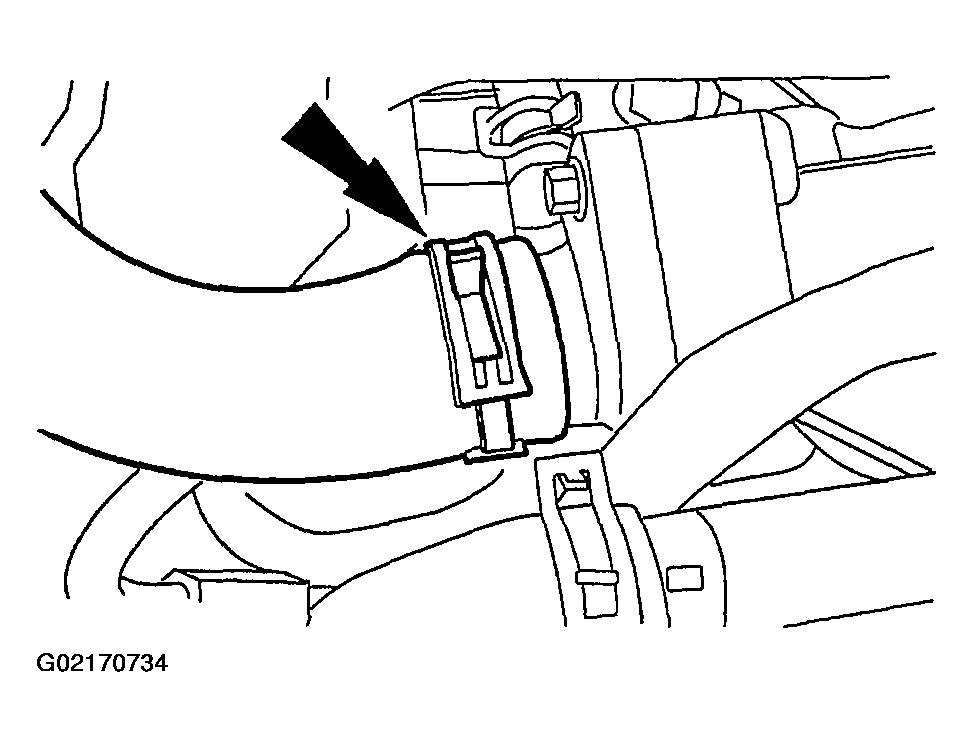

    Fig 10: Disconnecting Upper Radiator Hose
    G02170734Courtesy of MAZDA MOTORS CORP.
  17. Remove the power steering line bracket bolt.

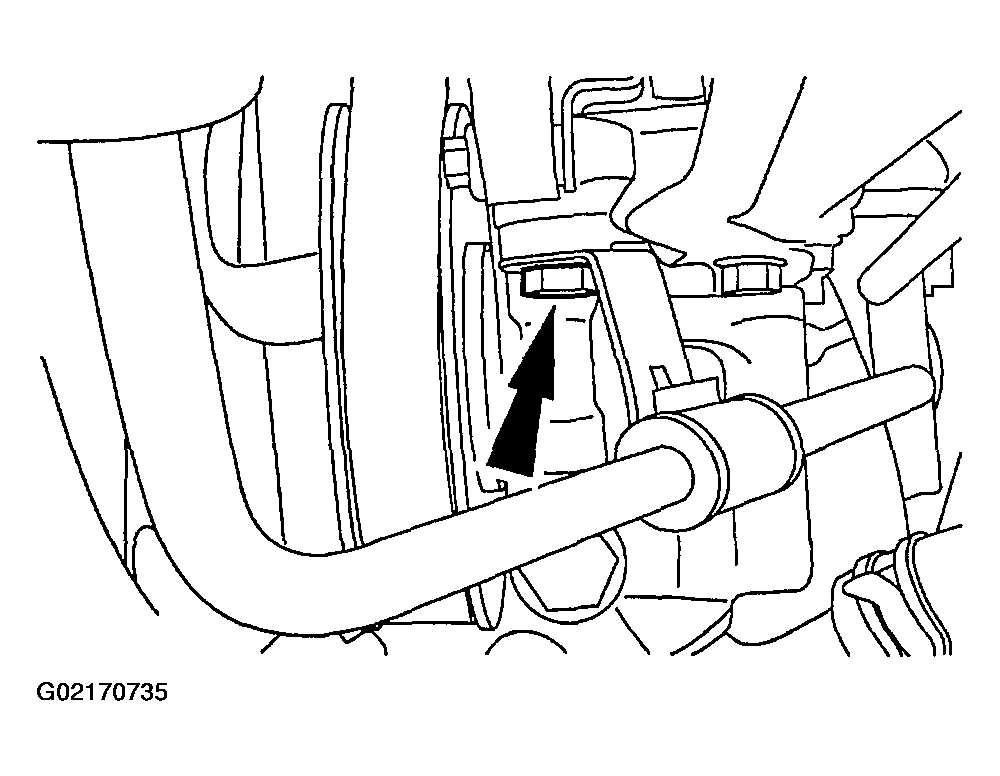

    Fig 11: Removing Power Steering Line Bracket Bolt
    G02170735Courtesy of MAZDA MOTORS CORP.
  18. Remove the power steering line bracket bolt.

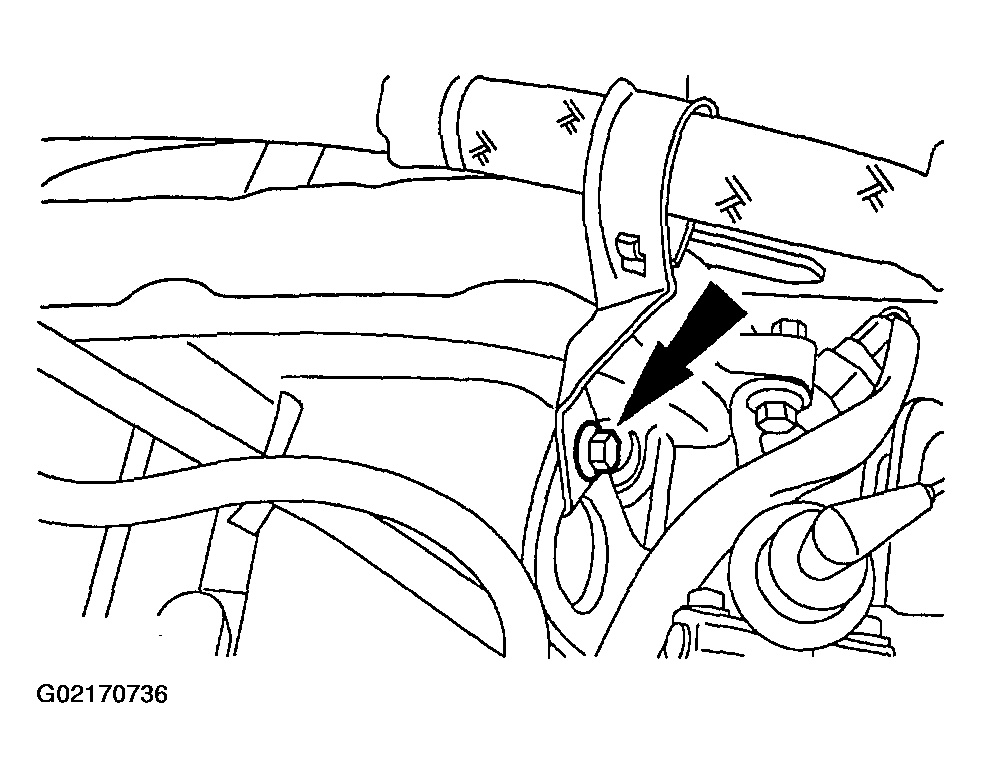

    Fig 12: Removing Power Steering Line Bracket Bolt
    G02170736Courtesy of MAZDA MOTORS CORP.

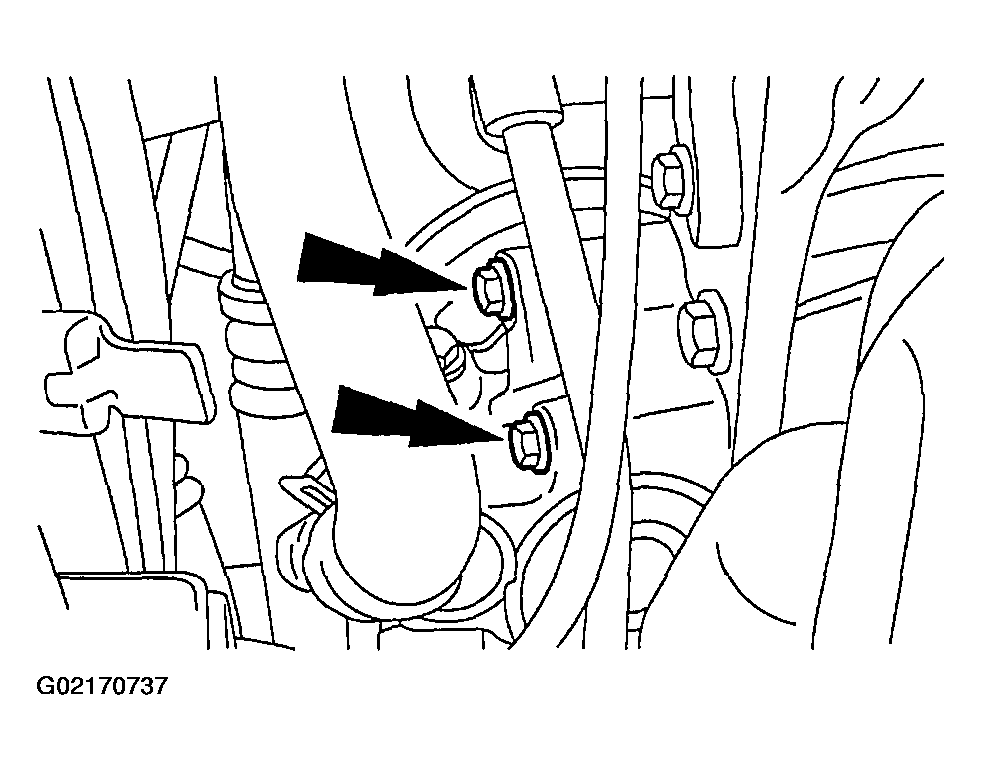

  19. Remove the upper power steering pump bolts.
    Fig 13: Removing Upper Power Steering Pump Bolts
    G02170737Courtesy of MAZDA MOTORS CORP.
  20. Disconnect the coolant hose.

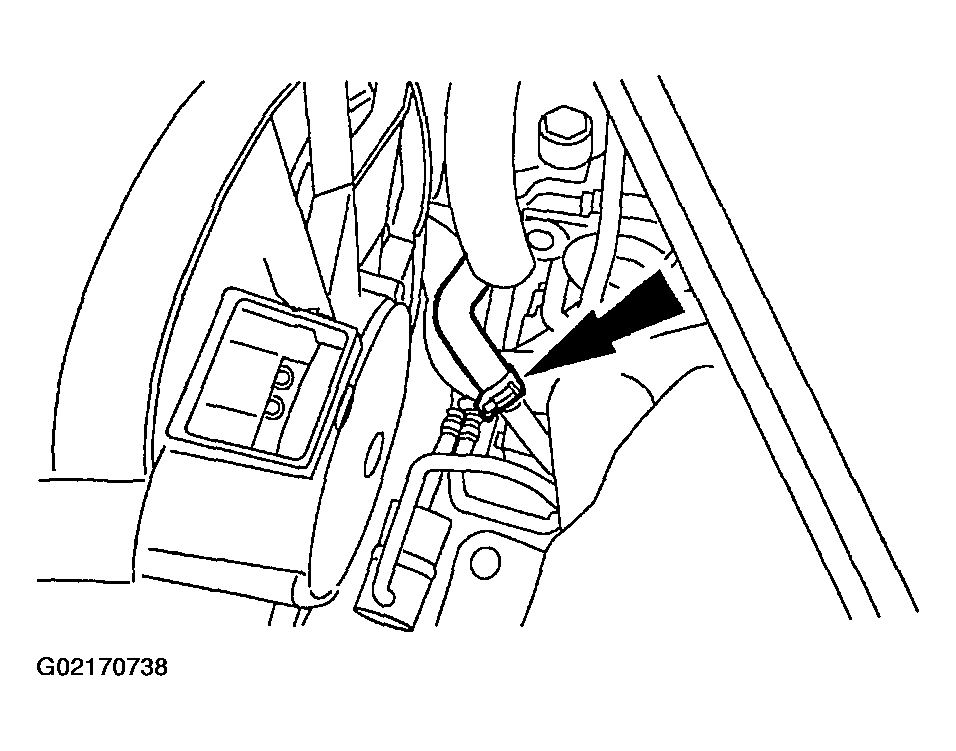

    Fig 14: Disconnecting Coolant Hose
    G02170738Courtesy of MAZDA MOTORS CORP.
  21. Disconnect the heater hoses.

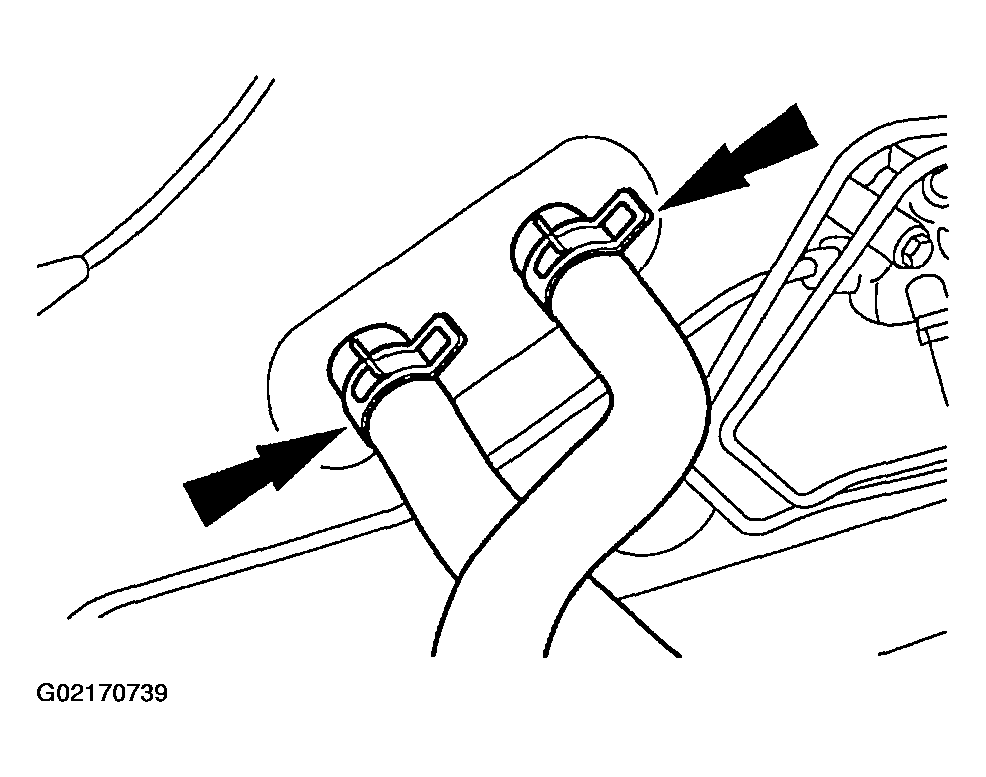

    Fig 15: Disconnecting Heater Hoses
    G02170739Courtesy of MAZDA MOTORS CORP.
  22. Remove the cruise control unit (if equipped) and position aside.

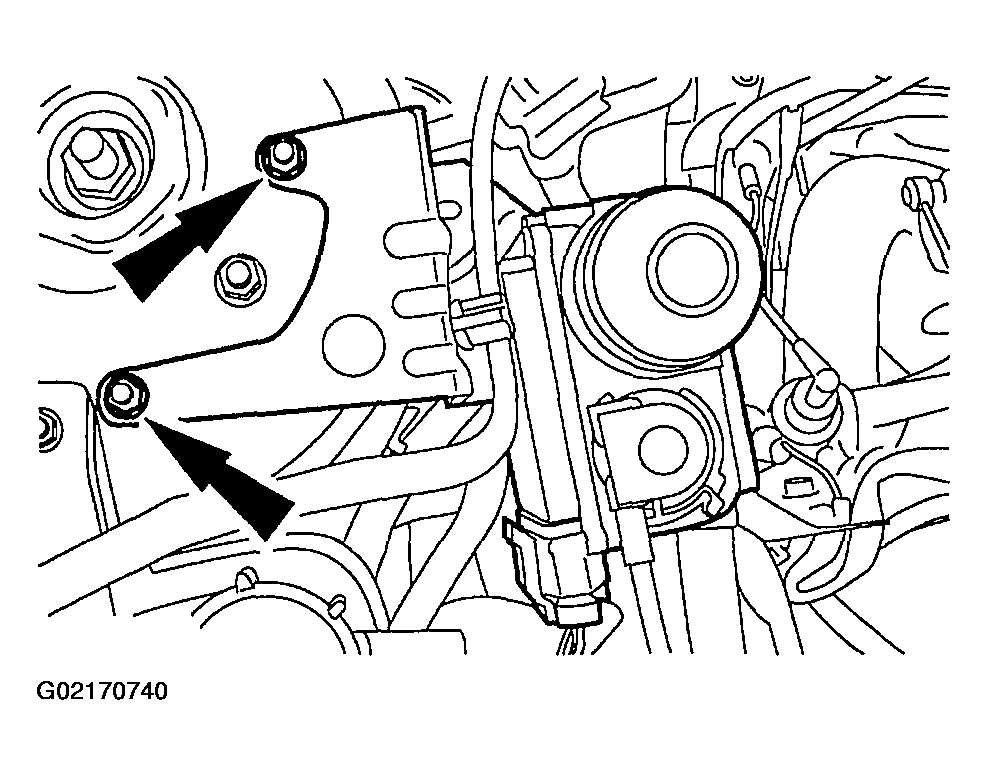

    Fig 16: Removing Cruise Control Unit
    G02170740Courtesy of MAZDA MOTORS CORP.
  23. Remove the catalytic converter.
  24. Disconnect the coolant hose.

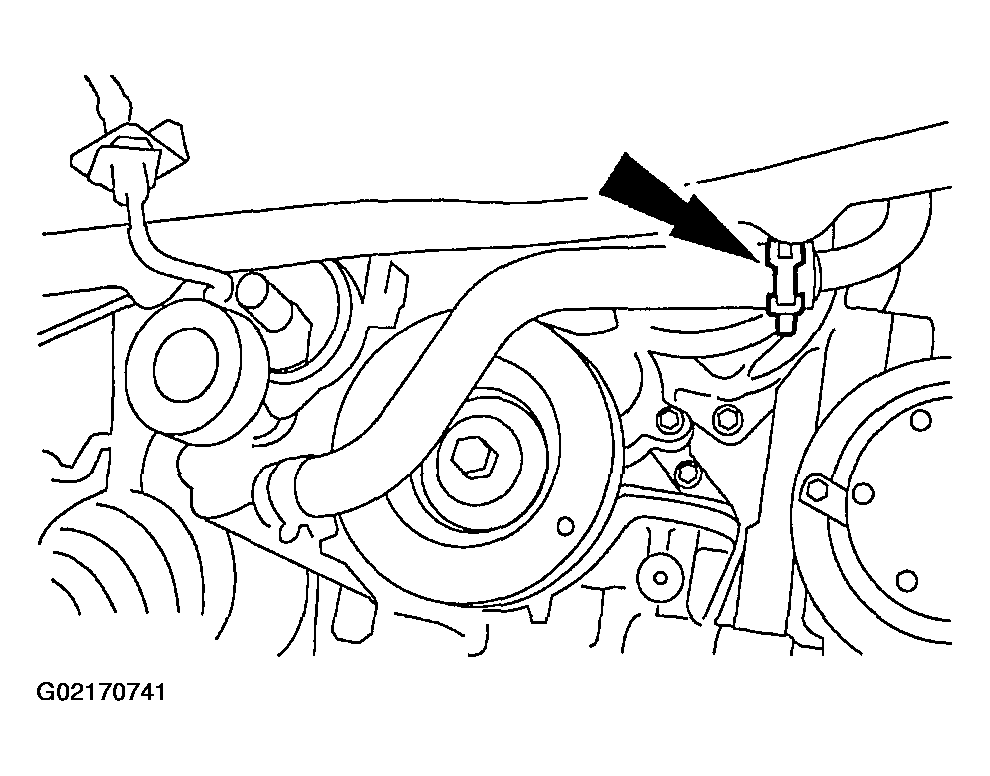

    Fig 17: Disconnecting Coolant Hose
    G02170741Courtesy of MAZDA MOTORS CORP.
  25. Remove the A/C compressor. Refer to COMPRESSOR .
  26. Remove the halfshafts. Refer to REMOVAL, DISASSEMBLY, REASSEMBLY & INSTALLATION .
  27. Disconnect the shifter linkages.

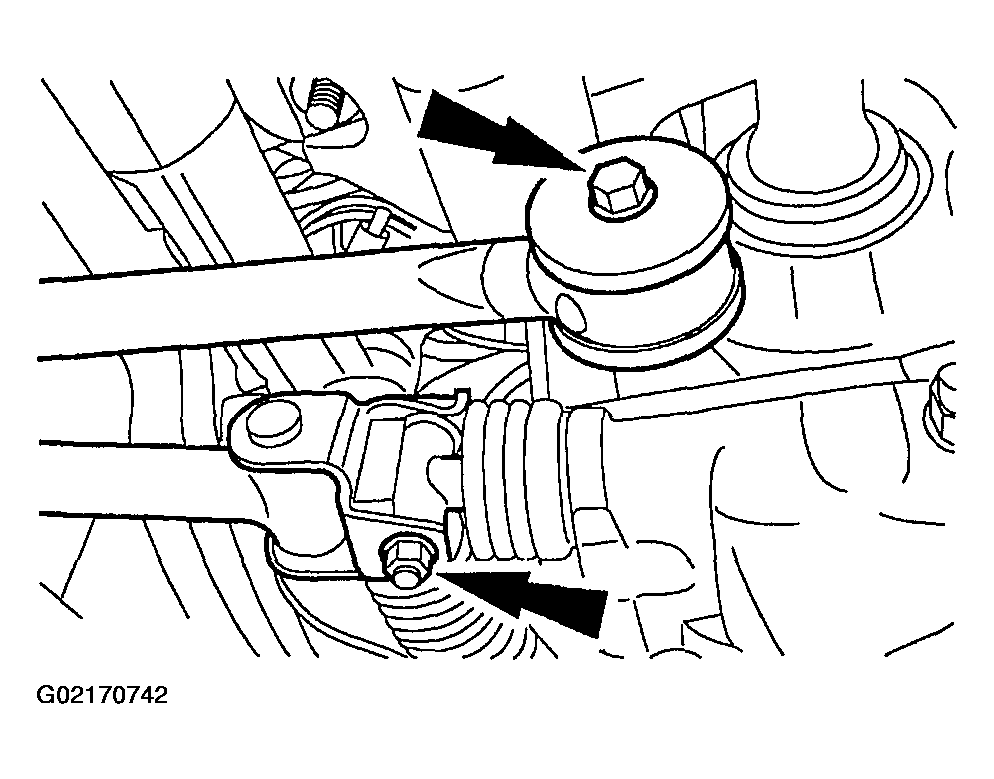

    Fig 18: Disconnecting Shifter Linkage
    G02170742Courtesy of MAZDA MOTORS CORP.

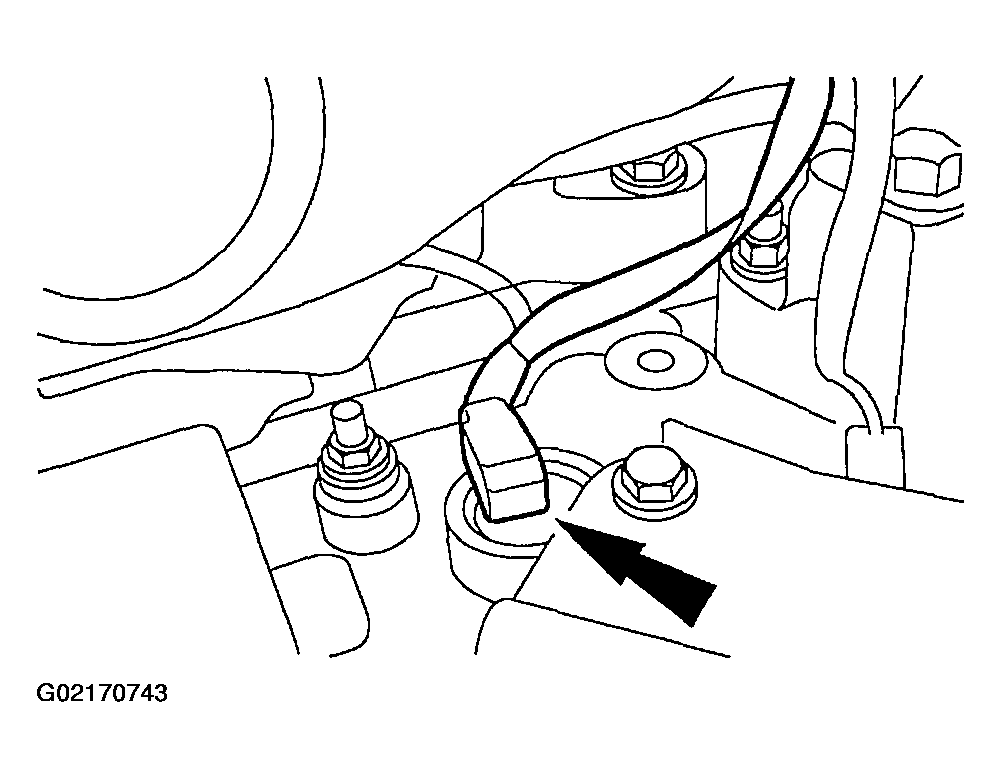

  28. Disconnect the block heater electrical connector.
    Fig 19: Disconnecting Block Heater Electrical Connector
    G02170743Courtesy of MAZDA MOTORS CORP.
  29. Remove the front transaxle mount through bolt.

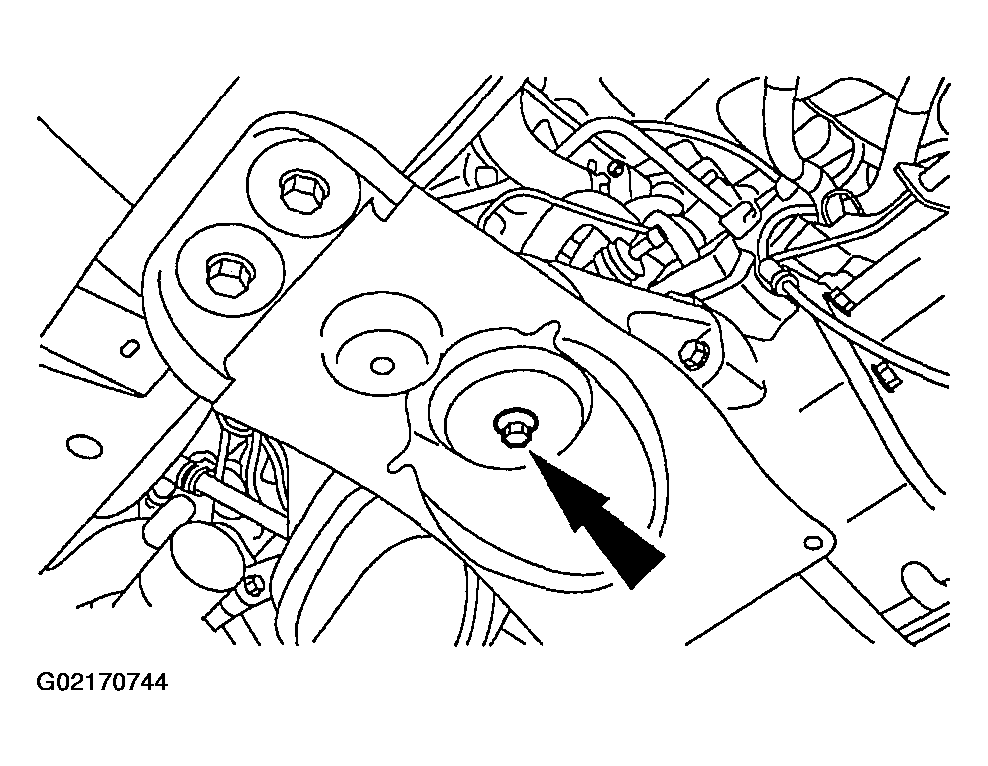

    Fig 20: Removing Front Transaxle Mount Through Bolt
    G02170744Courtesy of MAZDA MOTORS CORP.
  30. Remove the engine to transaxle bolts.

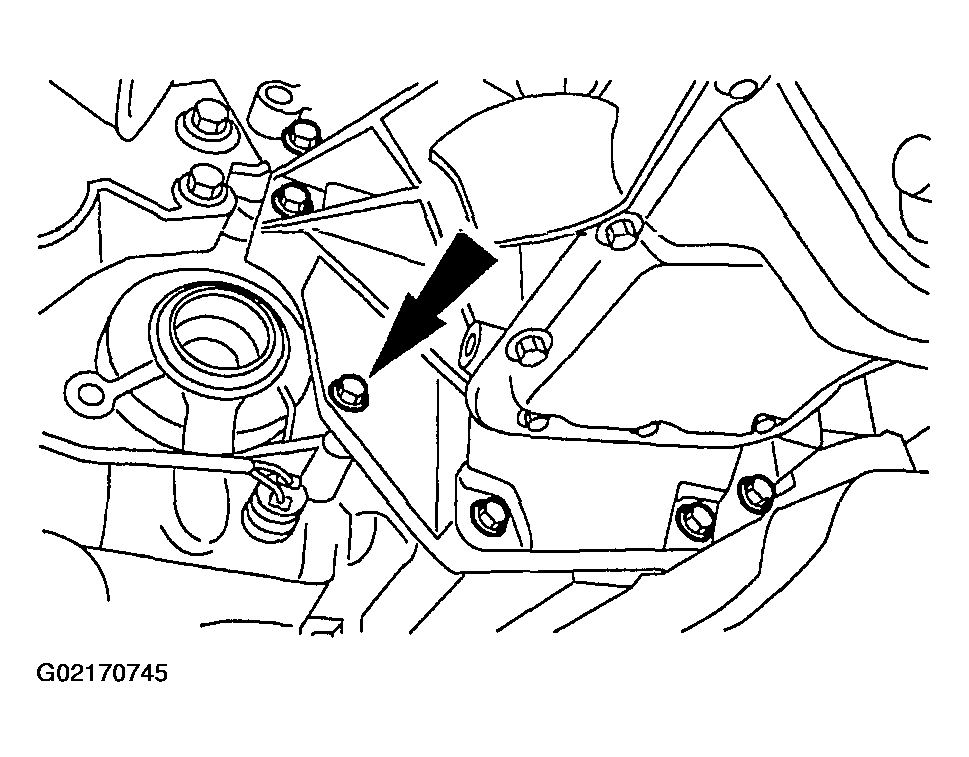

    Fig 21: Removing Engine-To-Transaxle Bolts
    G02170745Courtesy of MAZDA MOTORS CORP.
  31. Disconnect the lower radiator hose.

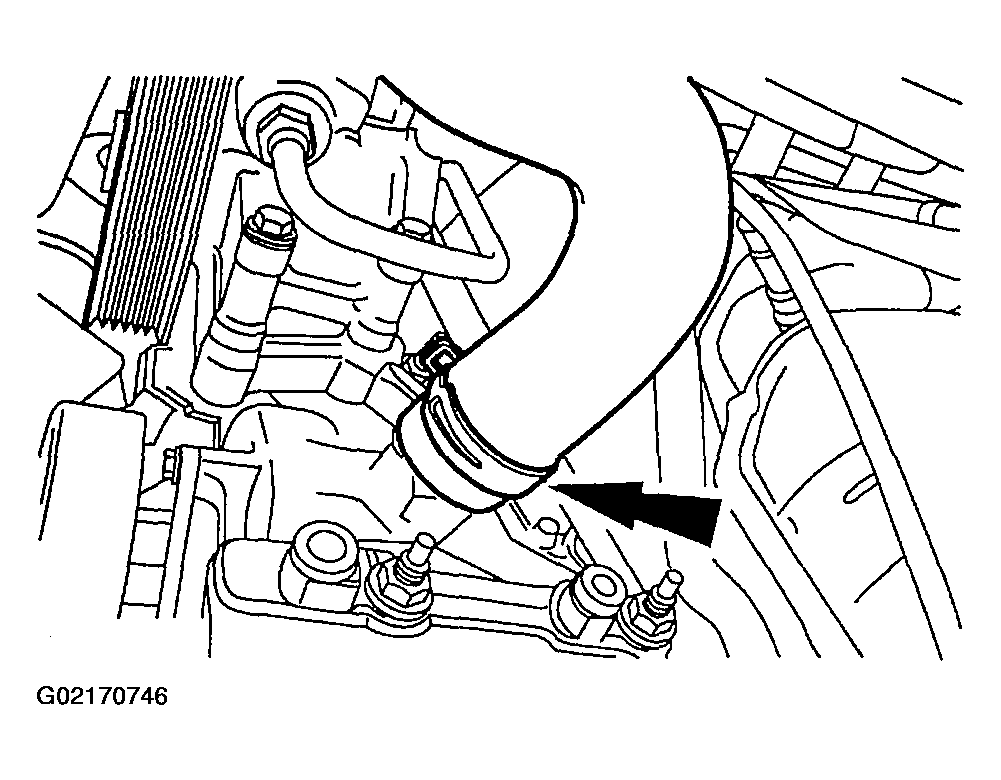

    Fig 22: Disconnecting Lower Radiator Hose
    G02170746Courtesy of MAZDA MOTORS CORP.
  32. Remove the lower power steering pump bolts and position the pump aside.

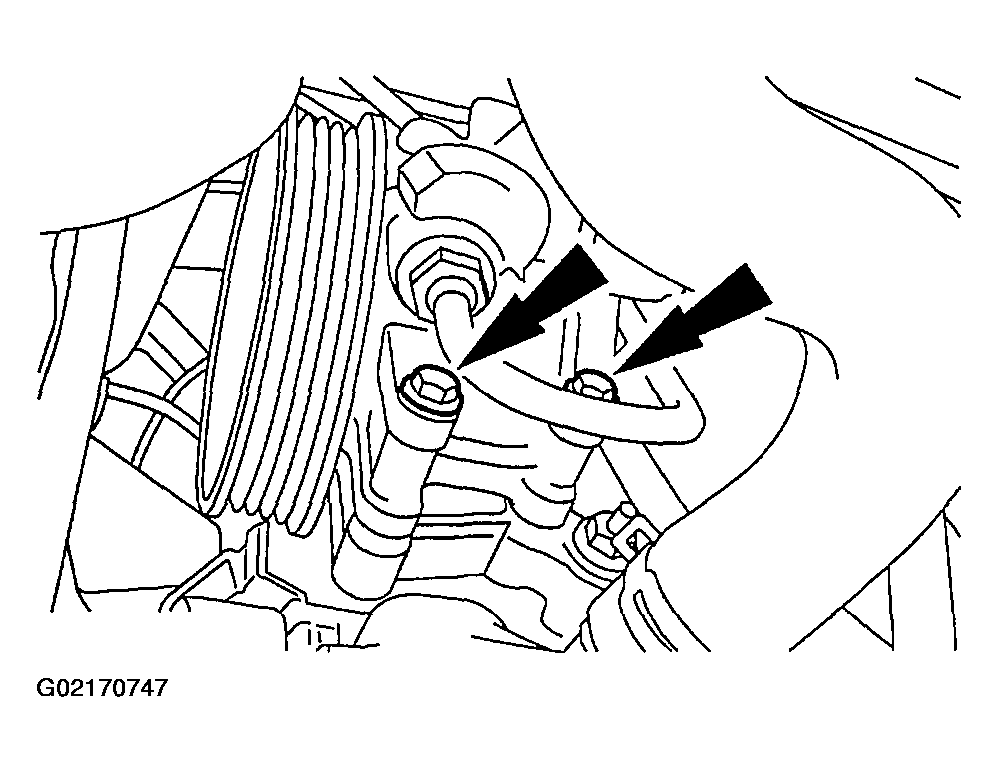

    Fig 23: Removing Lower Power Steering Pump Bolts
    G02170747Courtesy of MAZDA MOTORS CORP.
  33. Lower the vehicle.
  34. Disconnect the power steering line brackets and position the lines out of the way.

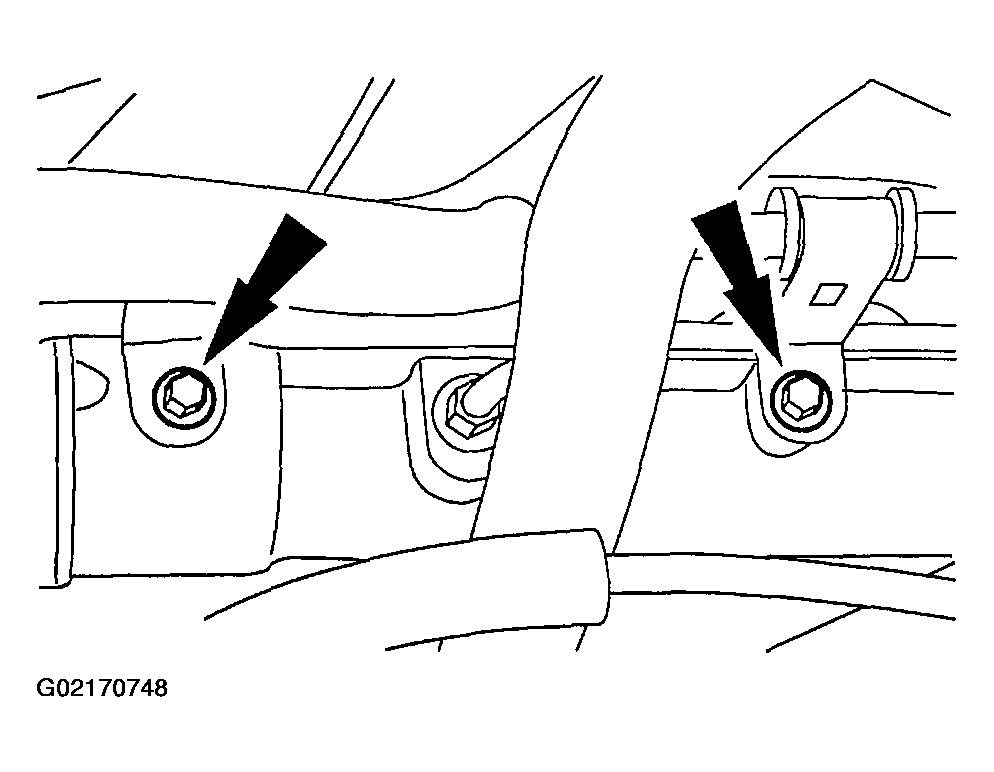

    Fig 24: Disconnecting Power Steering Line Brackets
    G02170748Courtesy of MAZDA MOTORS CORP.
  35. Remove the clutch slave cylinder bolts.

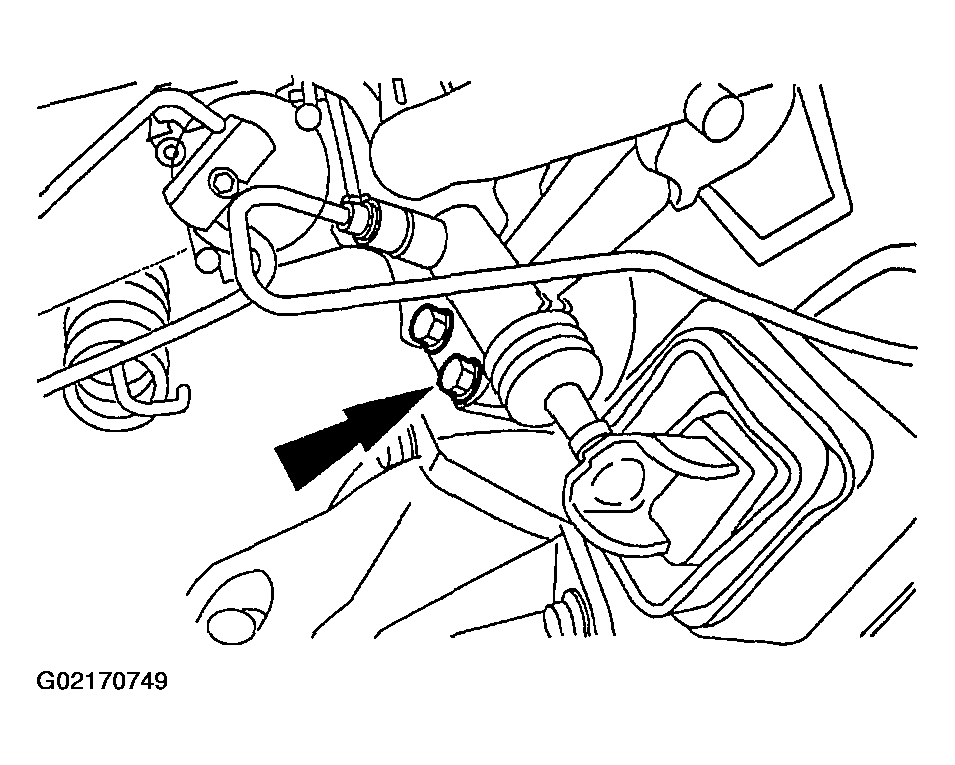

    Fig 25: Removing Clutch Slave Cylinder Bolts
    G02170749Courtesy of MAZDA MOTORS CORP.
  36. Remove the clutch slave cylinder line from the bracket and position the clutch slave cylinder aside.

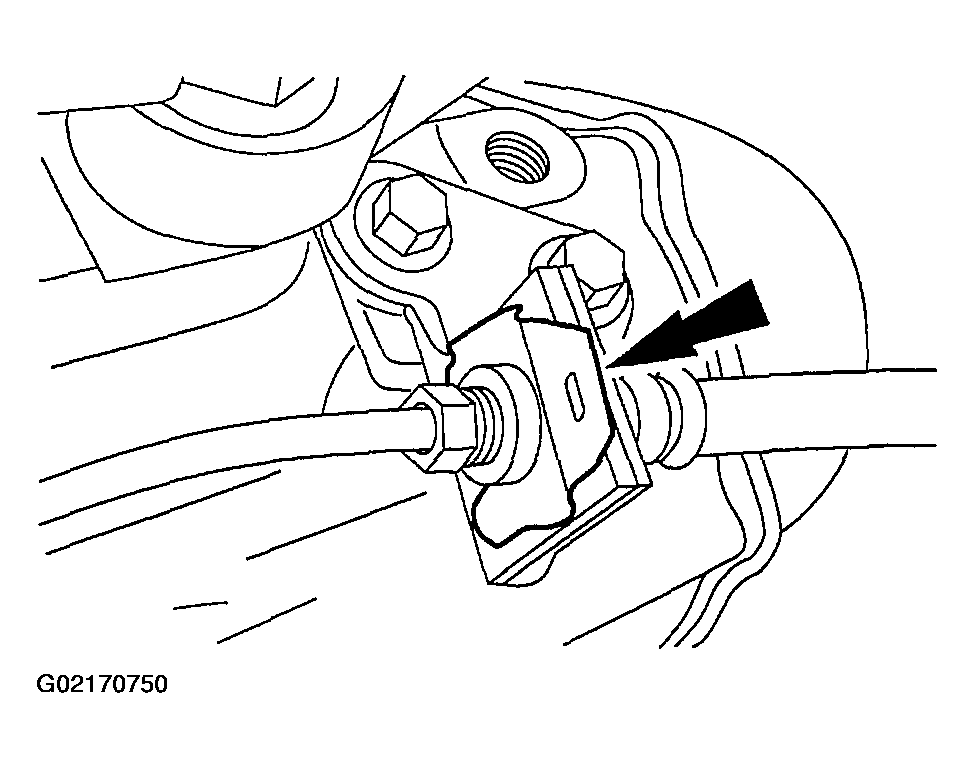

    Fig 26: Removing Clutch Slave Cylinder Line
    G02170750Courtesy of MAZDA MOTORS CORP.
  37. Support the engine using a suitable lifting device.
  38. Remove the rear transaxle mount.

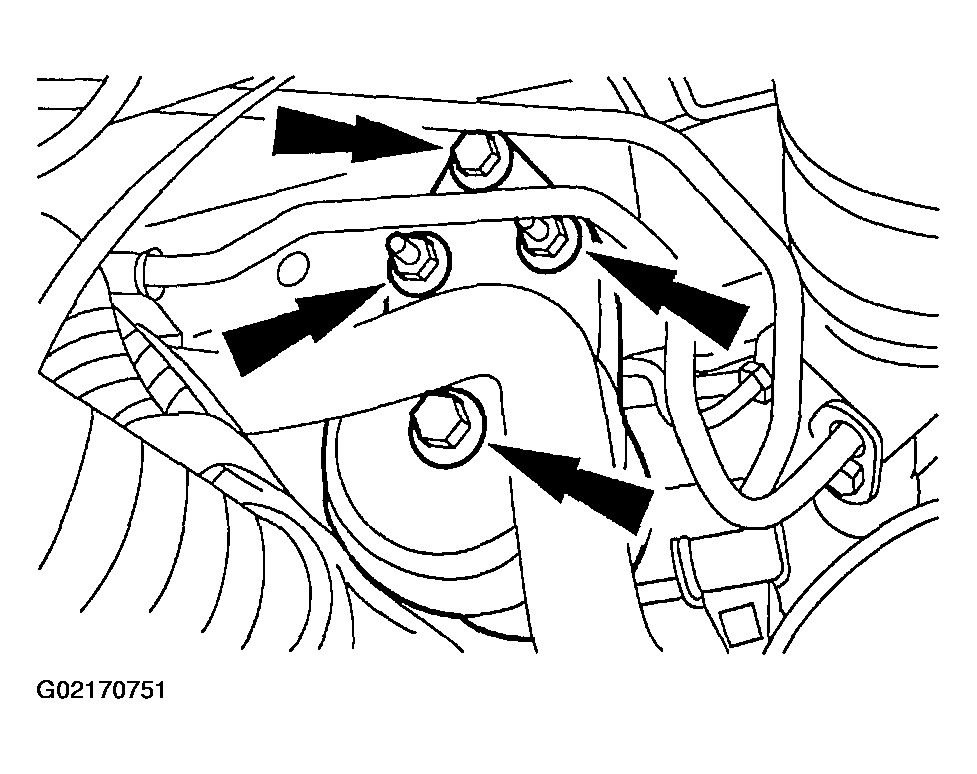

    Fig 27: Removing Rear Transaxle Mount
    G02170751Courtesy of MAZDA MOTORS CORP.
  39. Remove the LH transaxle mount.

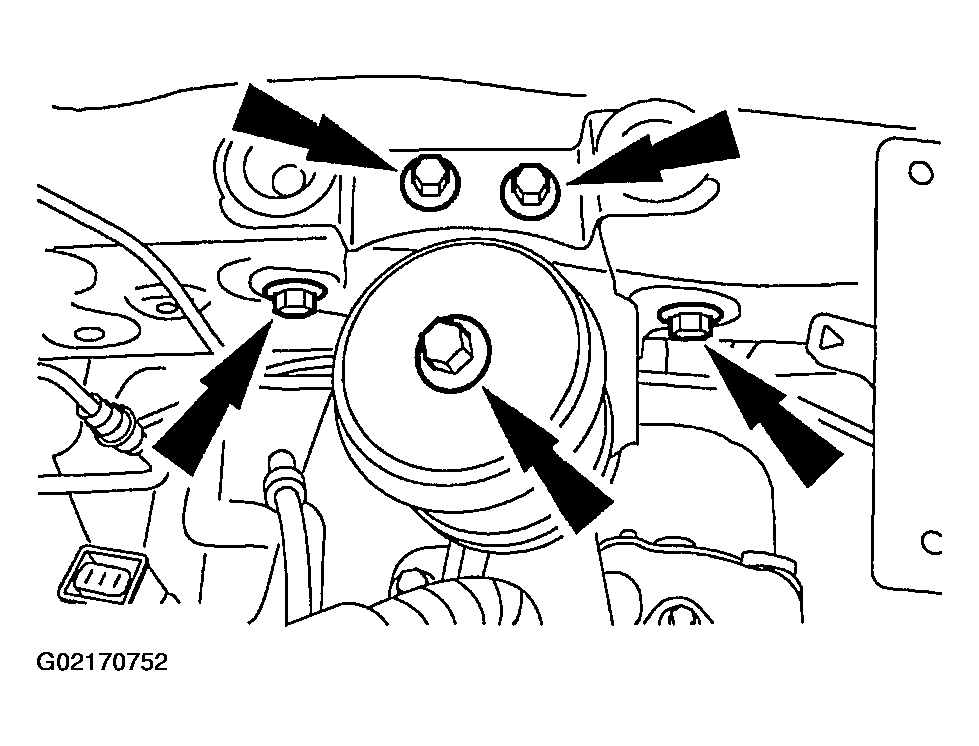

    Fig 28: Removing LH Transaxle Mount
    G02170752Courtesy of MAZDA MOTORS CORP.

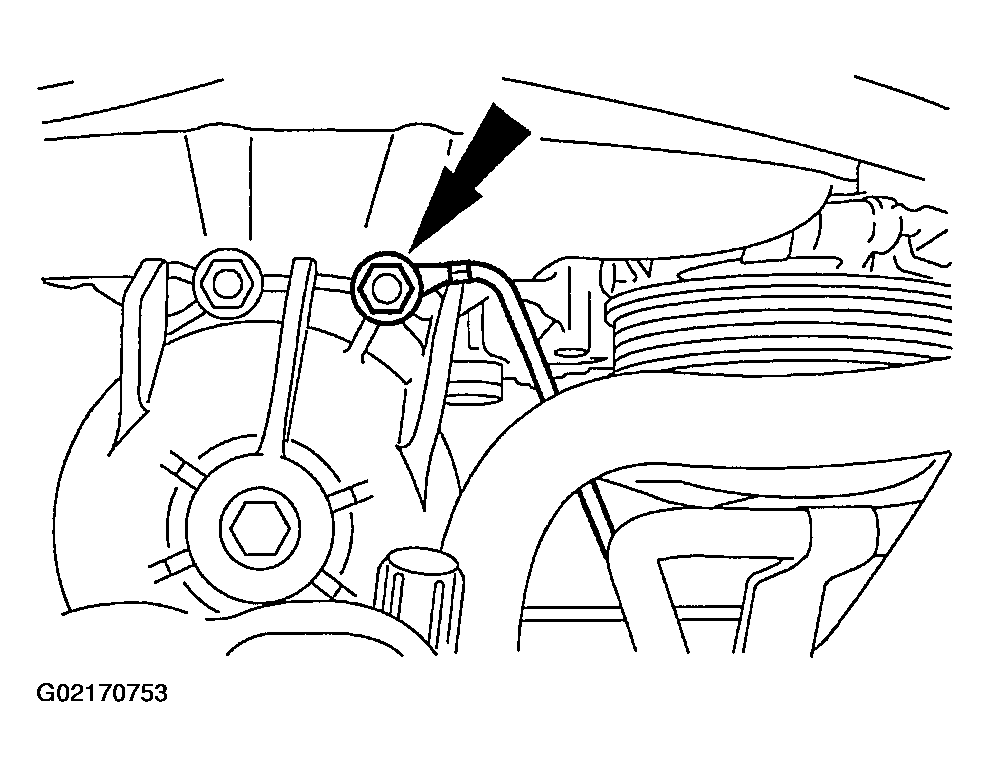

  40. Disconnect the ground cable.
    Fig 29: Disconnecting Ground Cable
    G02170753Courtesy of MAZDA MOTORS CORP.
  41. Remove the engine mount upper bracket.

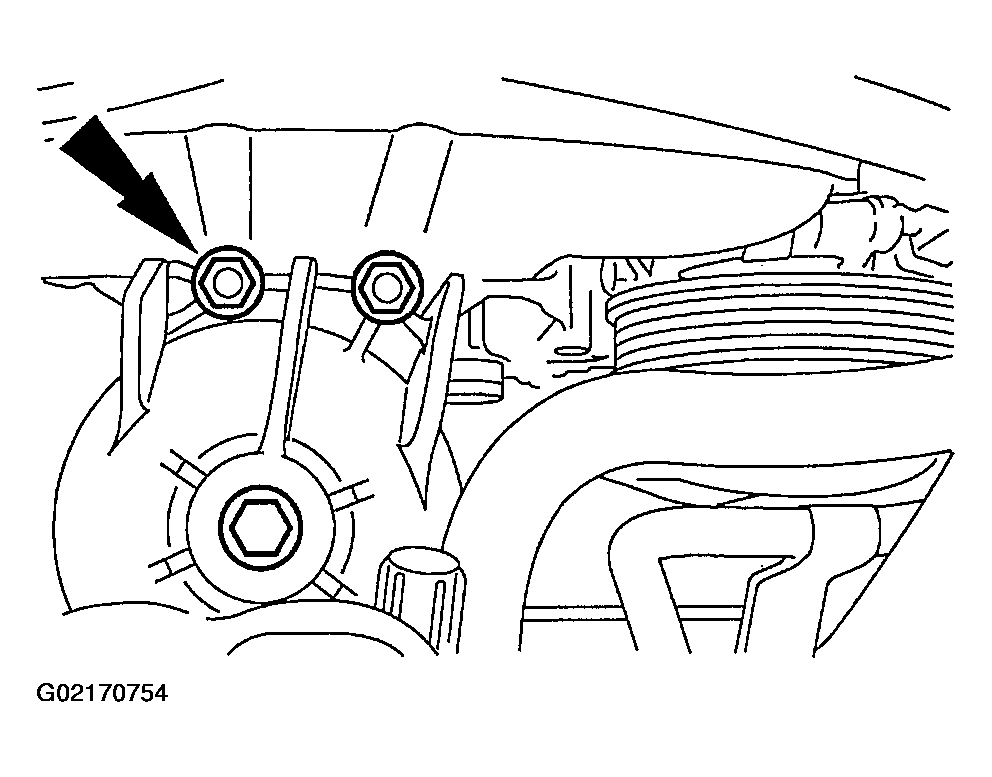

    Fig 30: Removing Engine Mount Upper Bracket
    G02170754Courtesy of MAZDA MOTORS CORP.
  42. Install the special tool and suitable lifting device and remove the engine and transaxle as an assembly.

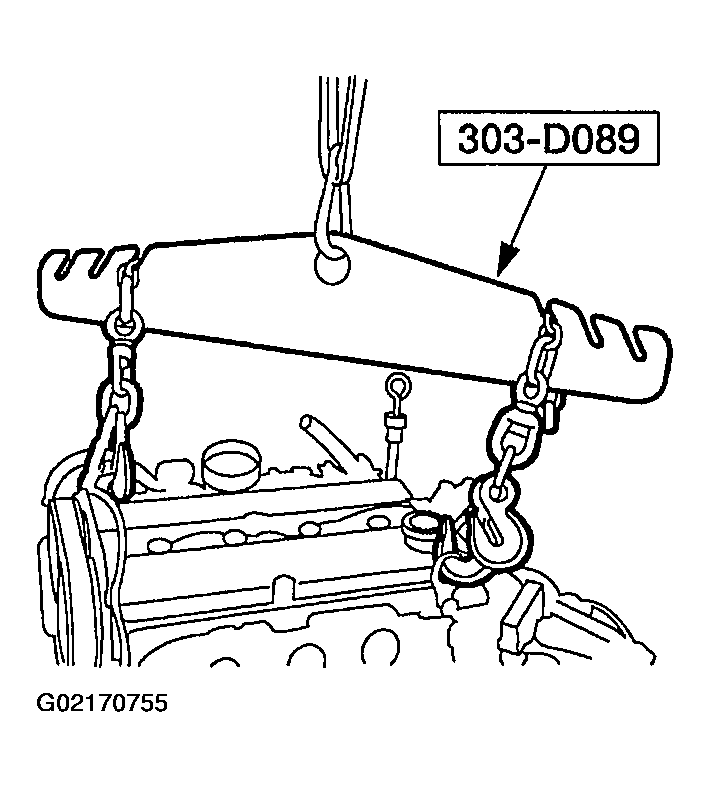

    Fig 31: Installing Special Tool
    G02170755Courtesy of MAZDA MOTORS CORP.
  43. Disconnect the generator electrical connectors.

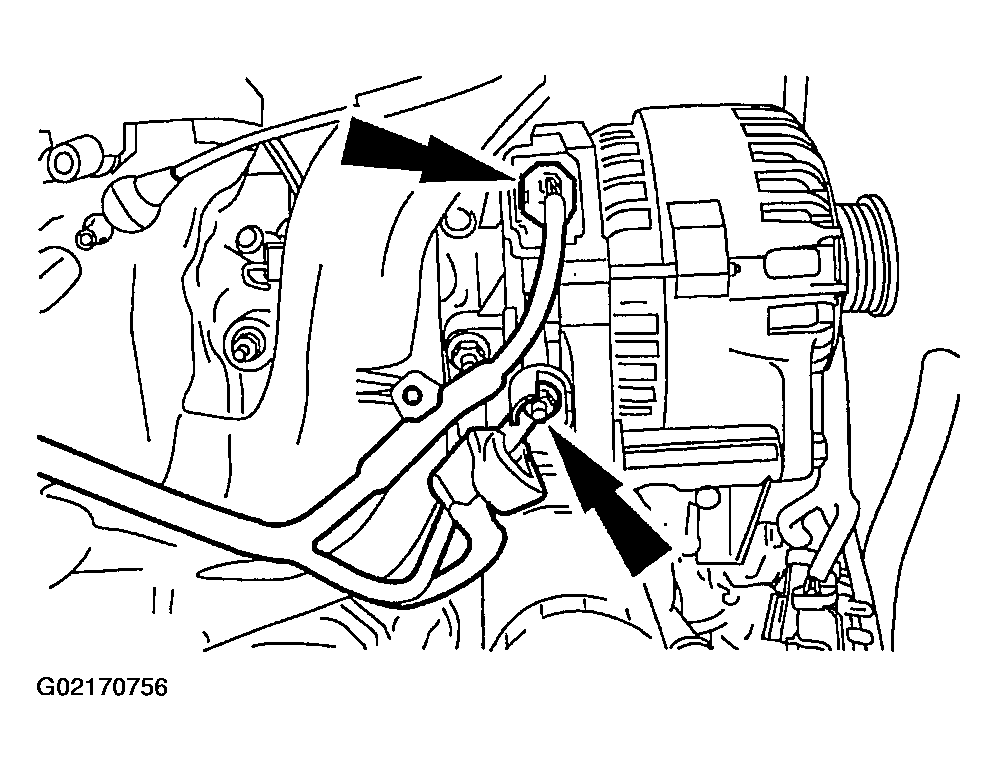

    Fig 32: Disconnecting Generator Electrical Connectors
    G02170756Courtesy of MAZDA MOTORS CORP.

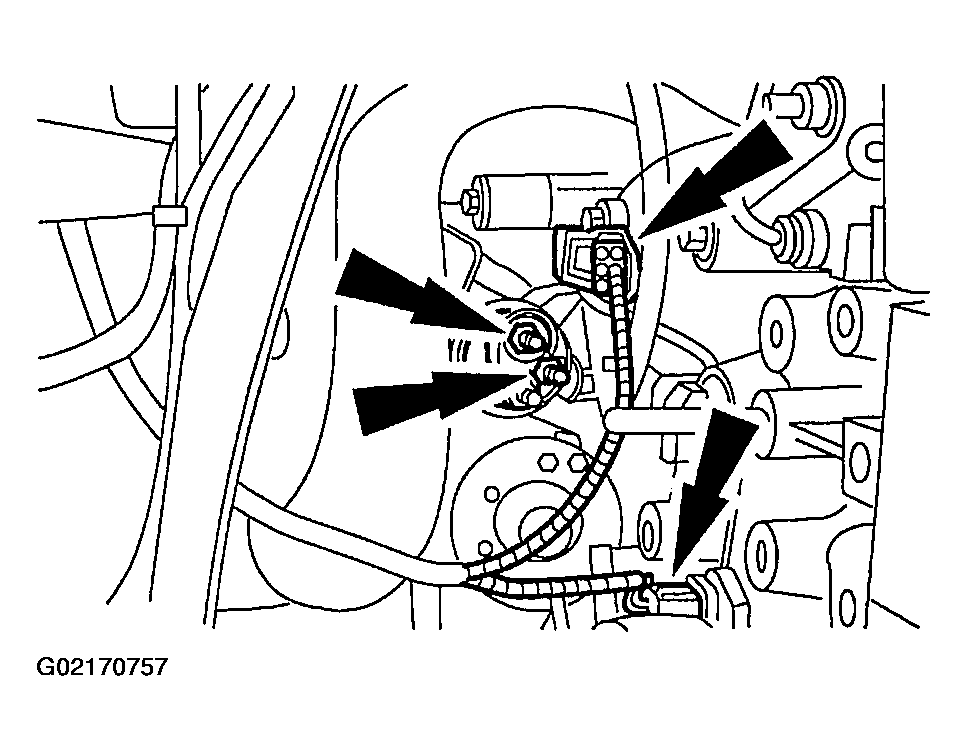

  44. Disconnect the electrical connectors.
    1. Disconnect the knock sensor electrical connector.
    2. Disconnect the oil pressure sender electrical connector.
    3. Disconnect the starter electrical connector.
    Fig 33: Disconnecting Electrical Connectors
    G02170757Courtesy of MAZDA MOTORS CORP.

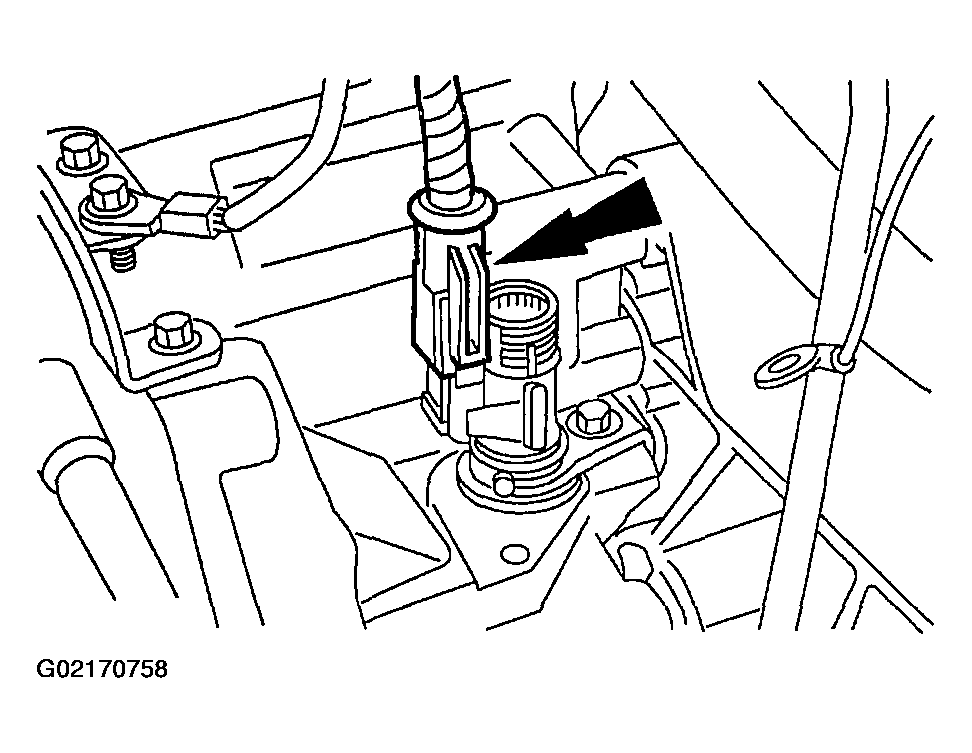

  45. Disconnect the Vehicle Speed Sensor (VSS) electrical connector.
    Fig 34: Disconnecting Vehicle Speed Sensor Electrical Connector
    G02170758Courtesy of MAZDA MOTORS CORP.

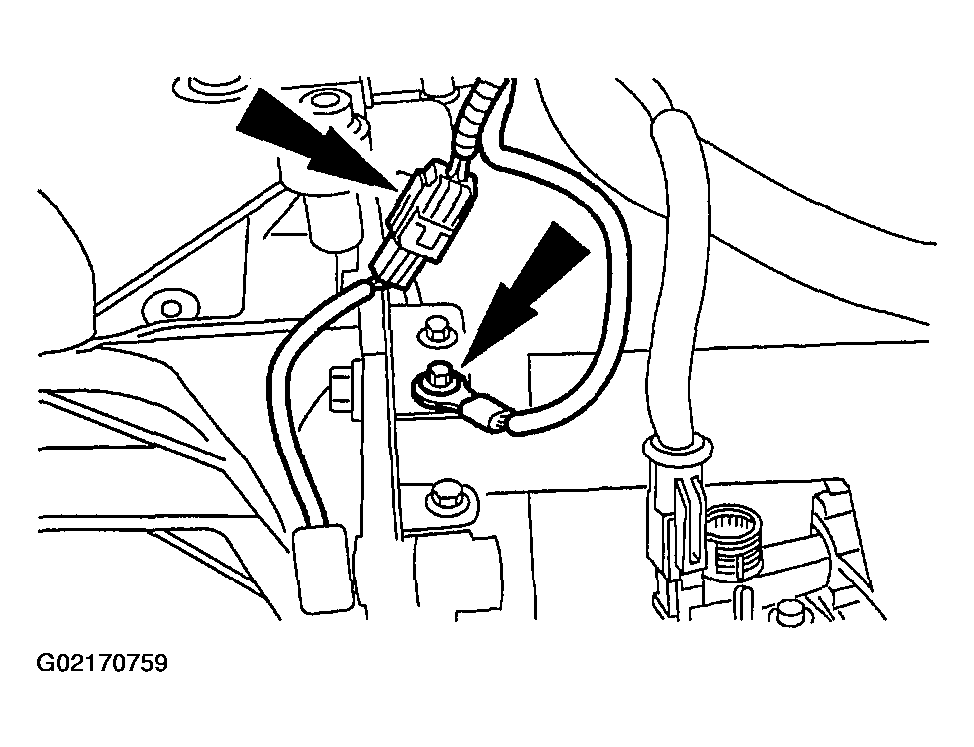

  46. Disconnect the Park Neutral Position (PNP) switch electrical connector and ground wire.
    Fig 35: Disconnecting Park Neutral Position Switch Electrical Connector
    G02170759Courtesy of MAZDA MOTORS CORP.

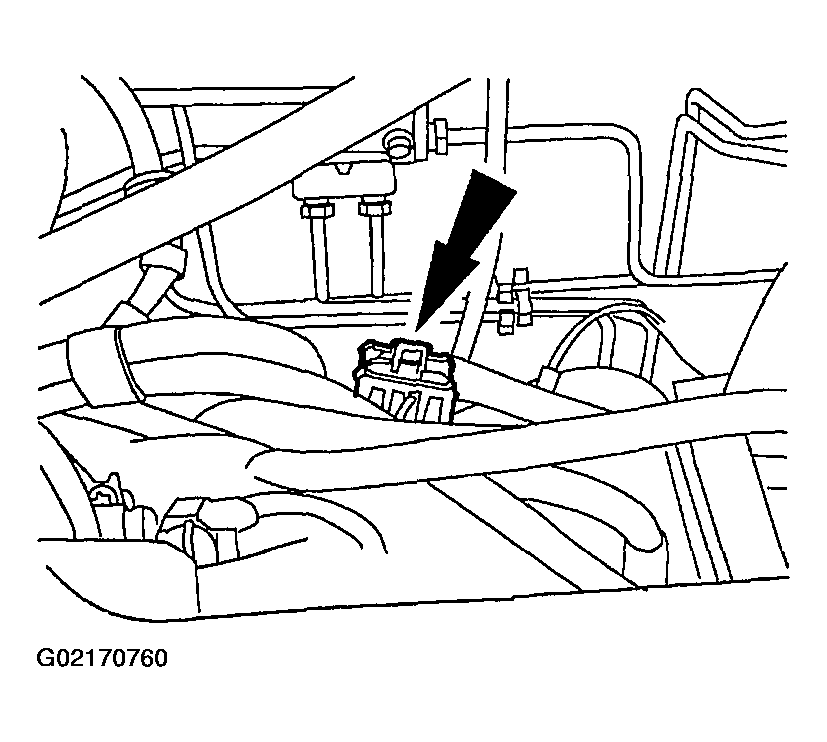

  47. Disconnect the fuel charging wiring harness electrical connector.
    Fig 36: Disconnecting Fuel Charging Wiring Harness Electrical Connector
    G02170760Courtesy of MAZDA MOTORS CORP.

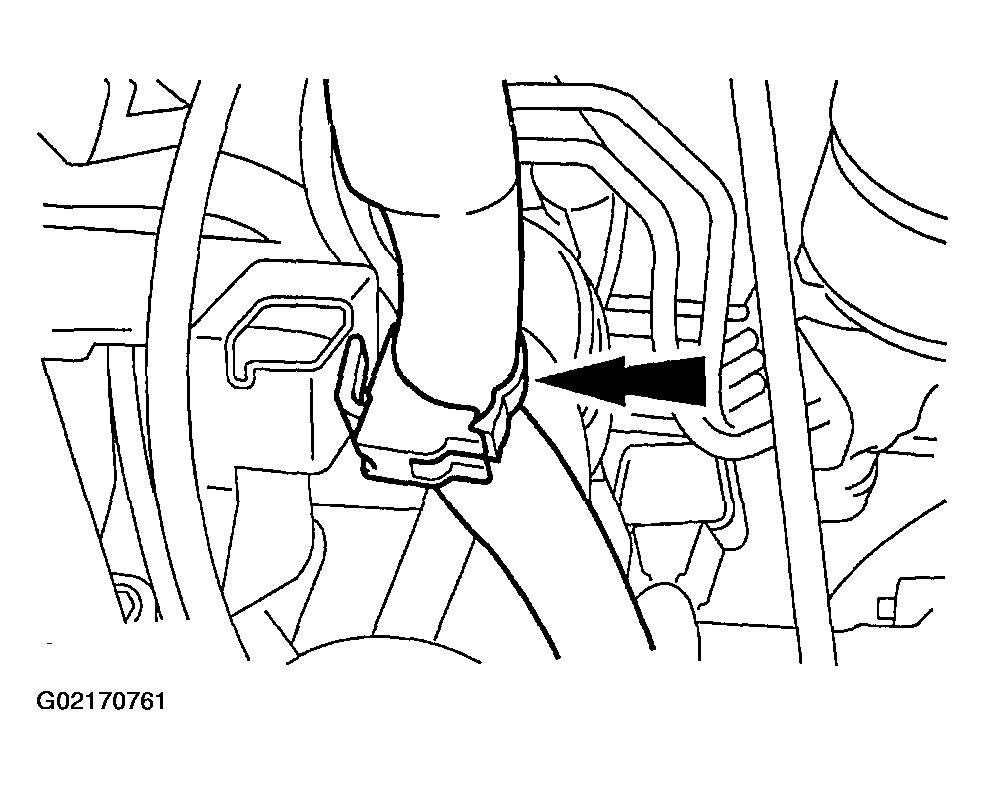

  48. Disconnect the PCM wire harness from the bracket.
    Fig 37: Disconnecting PCM Wire Harness
    G02170761Courtesy of MAZDA MOTORS CORP.
  49. Disconnect the ground wire.

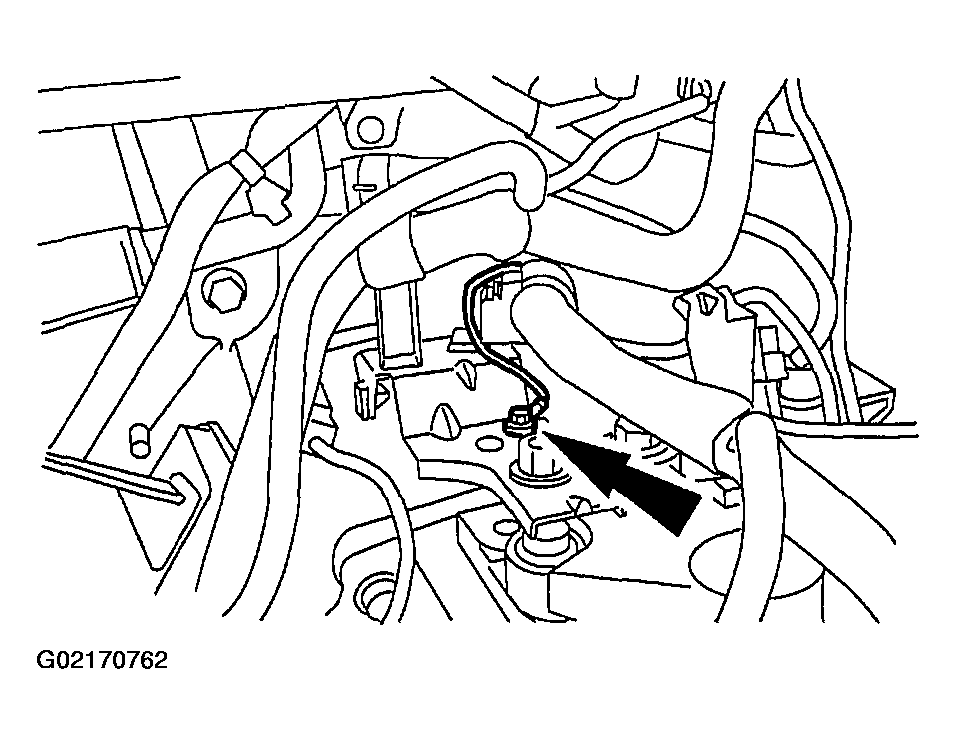

    Fig 38: Disconnecting Ground Wire
    G02170762Courtesy of MAZDA MOTORS CORP.

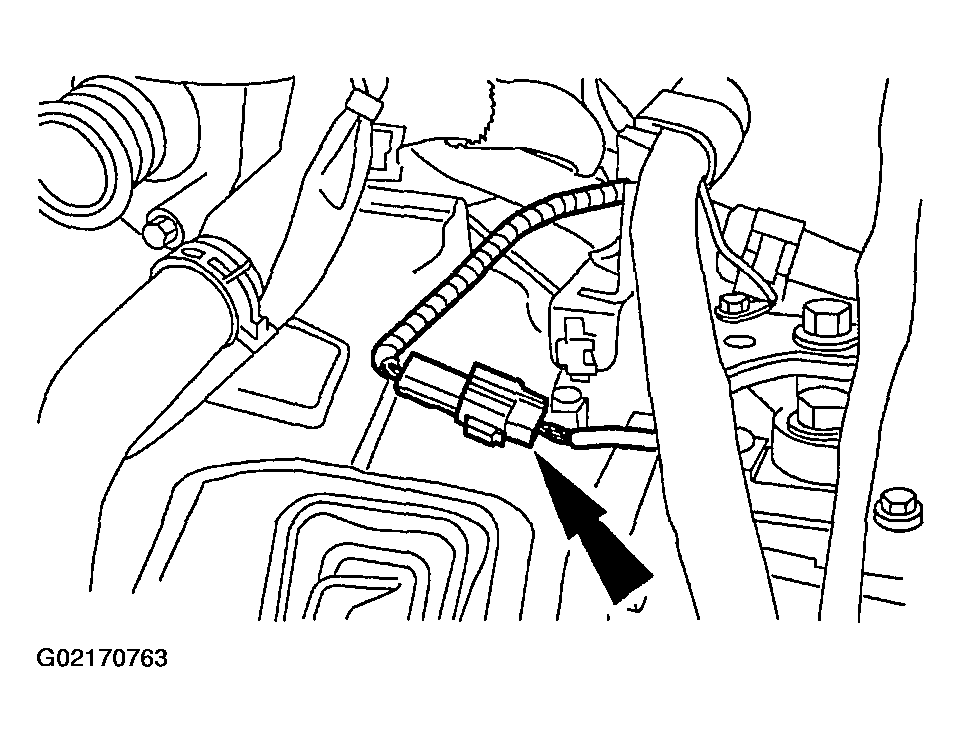

  50. Disconnect the backup lamp switch electrical connector.
    Fig 39: Disconnecting Backup Lamp Switch Electrical Connector
    G02170763Courtesy of MAZDA MOTORS CORP.

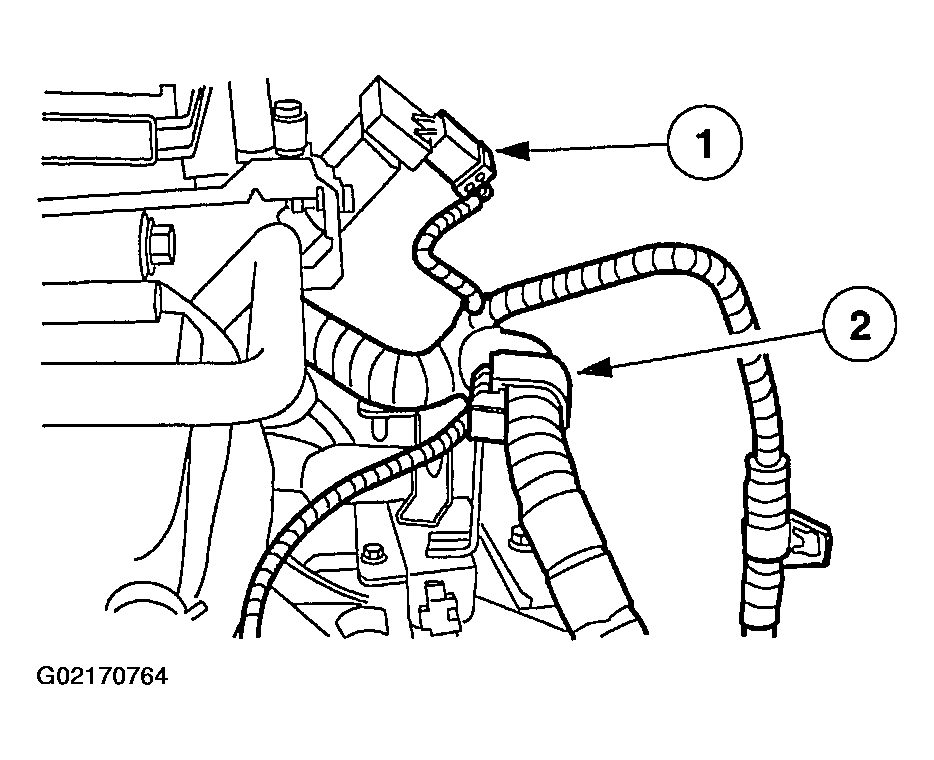

  51. Remove the wire harness.
    • Disconnect the differential pressure feedback EGR sensor.
    • Remove the wire harness from the brackets and remove from the engine/transaxle assembly.
    Fig 40: Removing Wire Harness
    G02170764Courtesy of MAZDA MOTORS CORP.

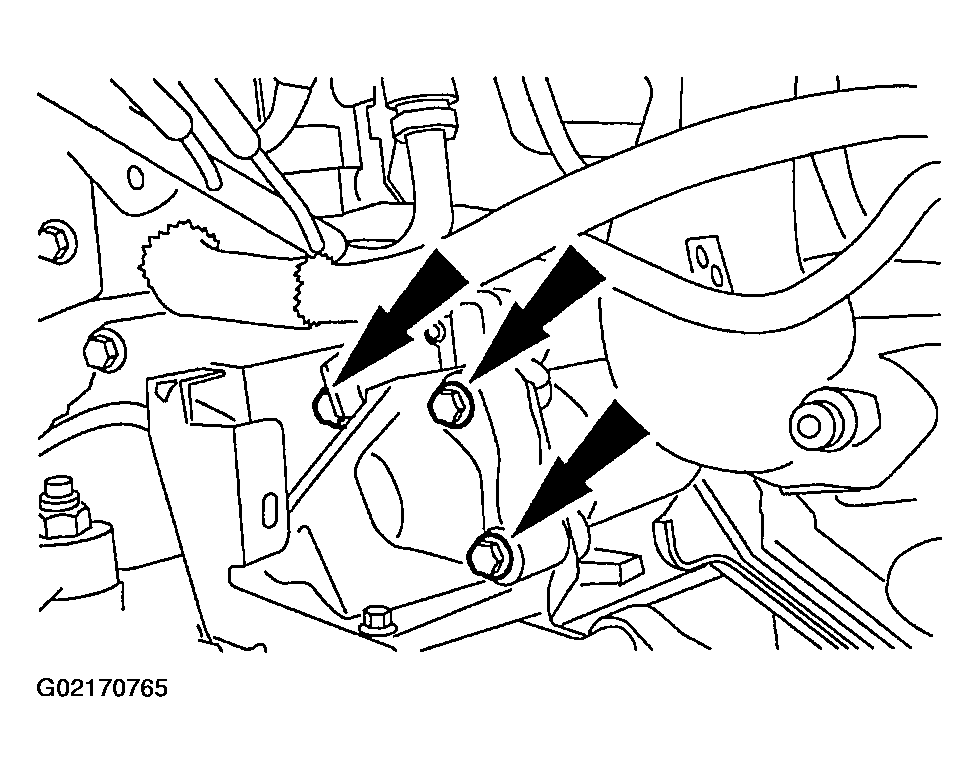

  52. Remove the starter.
    Fig 41: Removing Starter
    G02170765Courtesy of MAZDA MOTORS CORP.
  53. Remove the engine to transaxle bolts.

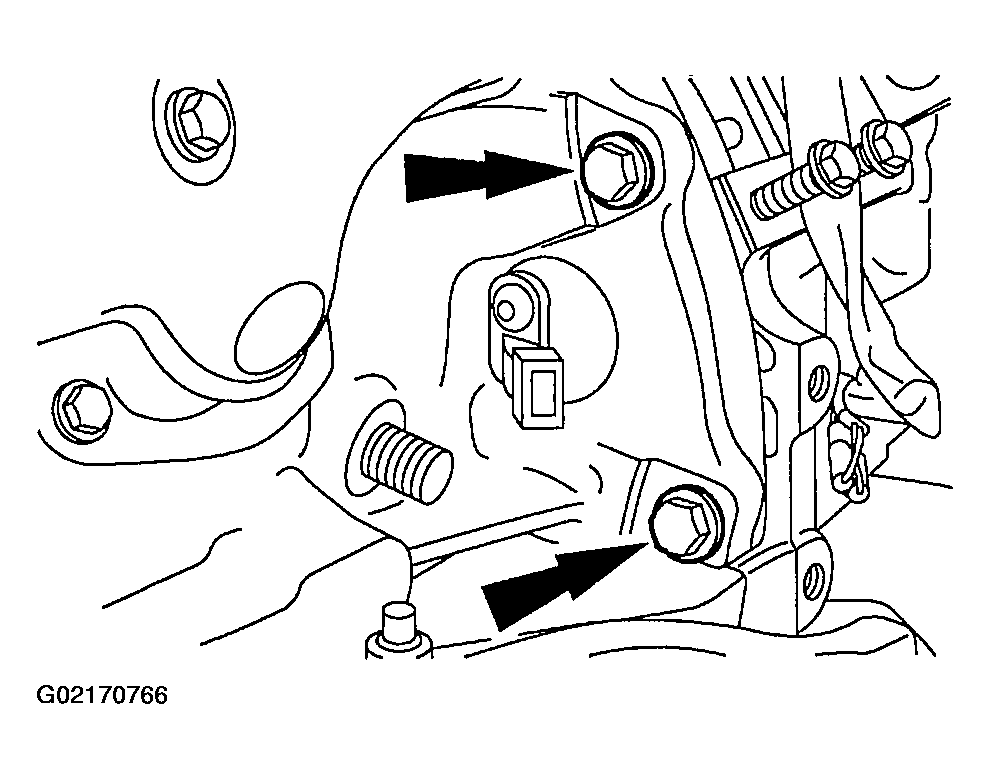

    Fig 42: Removing Engine-To-Transaxle Bolts
    G02170766Courtesy of MAZDA MOTORS CORP.
  54. Remove the engine to transaxle bolts and remove the transaxle.

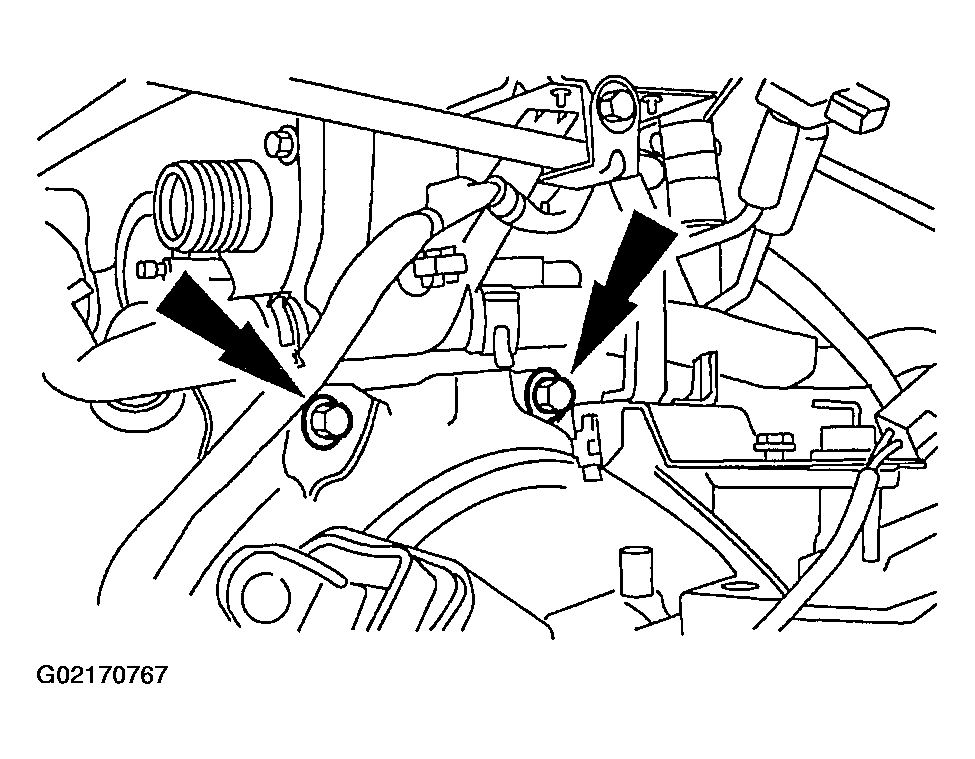

    Fig 43: Removing Engine-To-Transaxle Bolts
    G02170767Courtesy of MAZDA MOTORS CORP.
  55. Using the special tool 303-673, lock the flywheel to the engine.

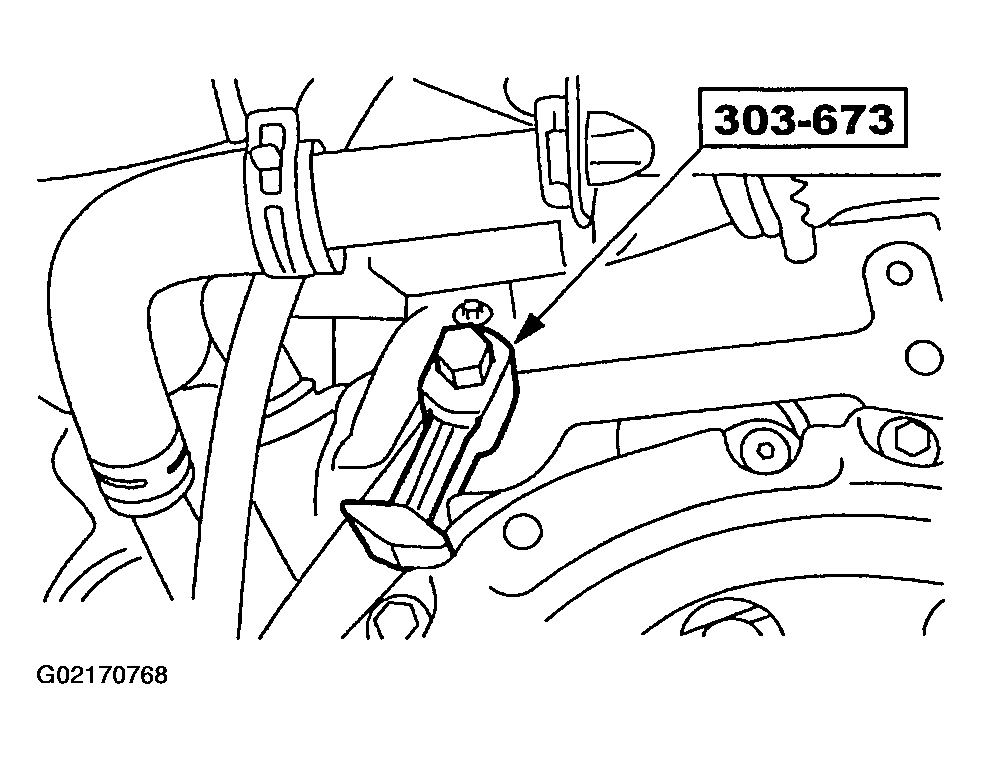

    Fig 44: Installing Special Tool
    G02170768Courtesy of MAZDA MOTORS CORP.

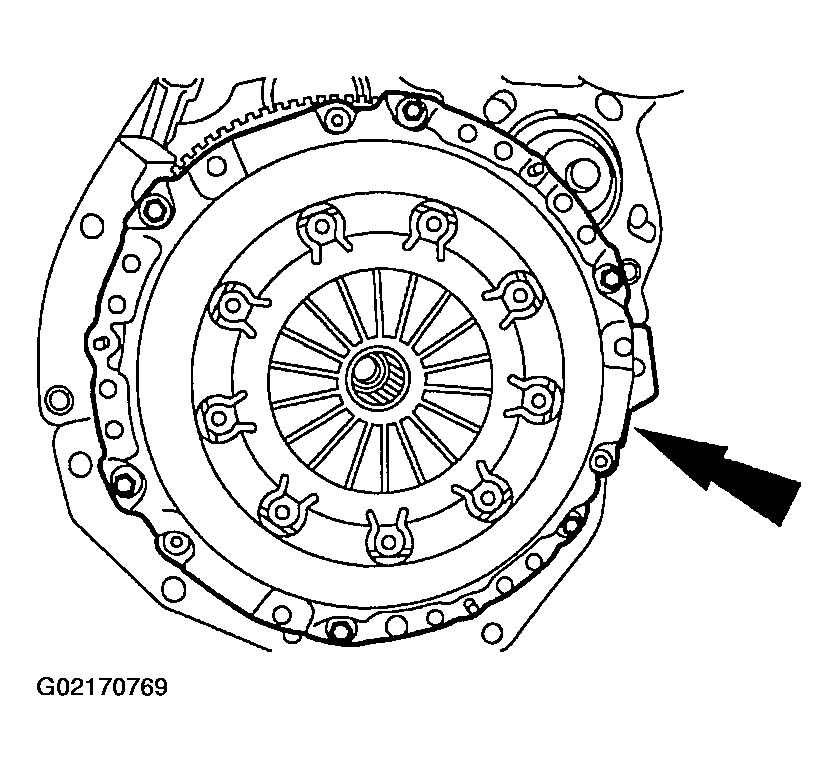

    56. WARNING: The clutch disc and clutch pressure plate are heavy and may fall if not held when the bolts are removed. Failure to follow these instructions may result in personal injury.
    CAUTION: Loosen the bolts evenly to prevent pressure plate damage.
    Fig 45: Removing Clutch Pressure Plate & Clutch Disc
    G02170769Courtesy of MAZDA MOTORS CORP.
  56. Remove the bolts, clutch pressure plate and clutch disc.
  57. Remove the flywheel. Refer to FLYWHEEL .

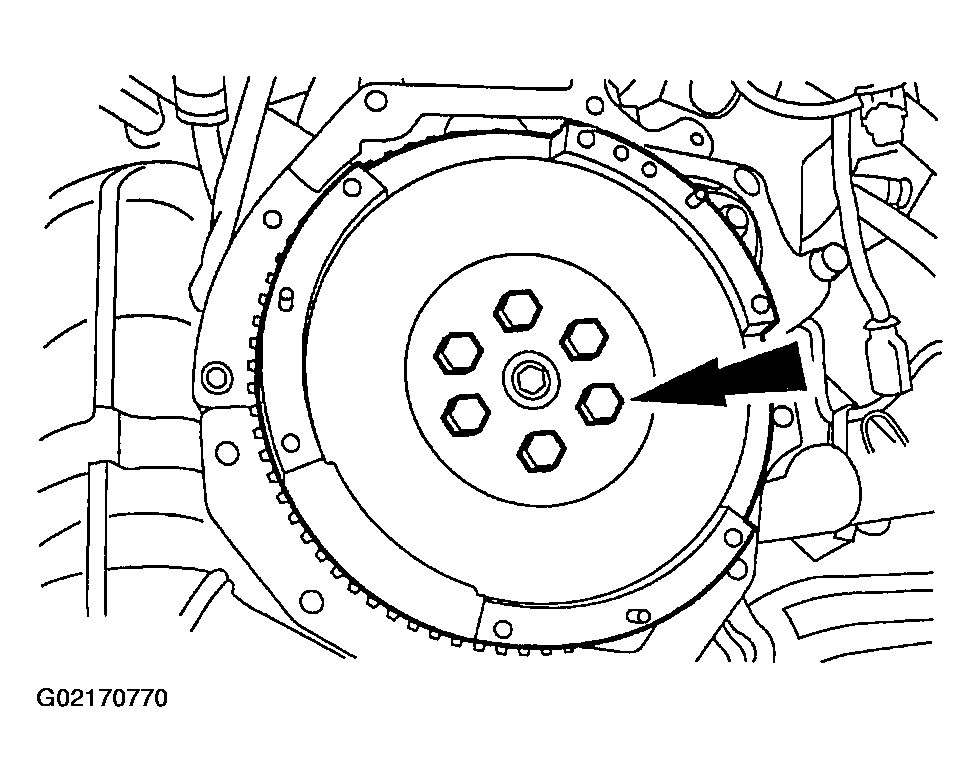

    Fig 46: Removing Flywheel
    G02170770Courtesy of MAZDA MOTORS CORP.
  58. Remove rear cover plates and dowels.

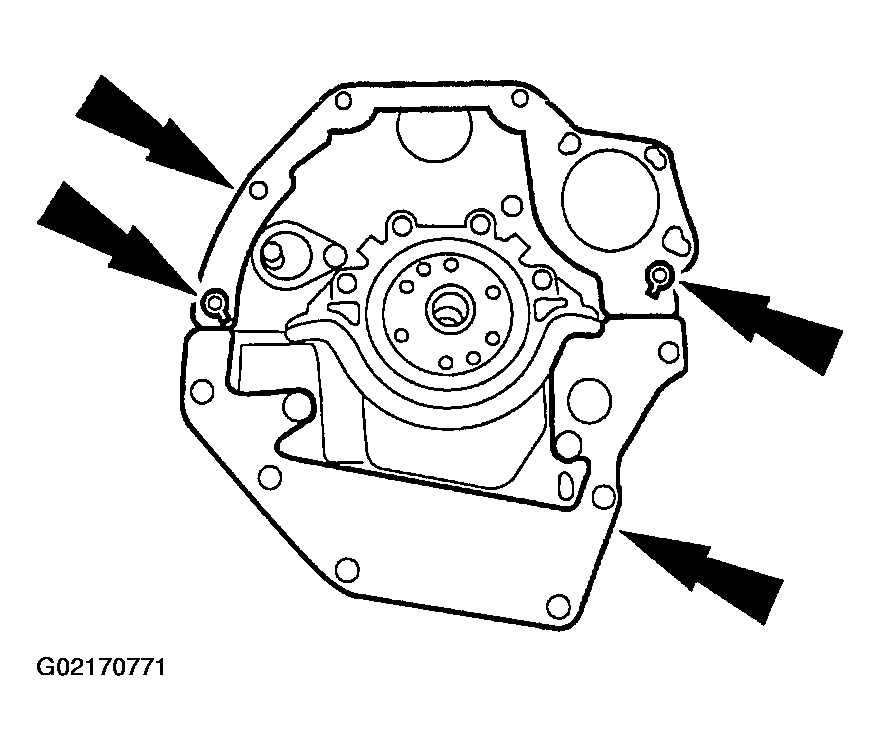

    Fig 47: Removing Rear Cover Plates & Dowels
    G02170771Courtesy of MAZDA MOTORS CORP.
  59. Mount the engine on a suitable engine stand.
