Engine Identification

WARNING: This page is about a different variant/trim than selected.

NOTE: For repair procedures not covered in this article, see ENGINE OVERHAUL PROCEDURES article in GENERAL INFORMATION.

Engine can be identified by engine model and number. See ENGINE IDENTIFICATION CODE table. Engine model and number is stamped on left side of cylinder block. See Fig 1.

ENGINE IDENTIFICATION CODE

Engine	Code
2.0L Zetec 4-Cylinder	FS

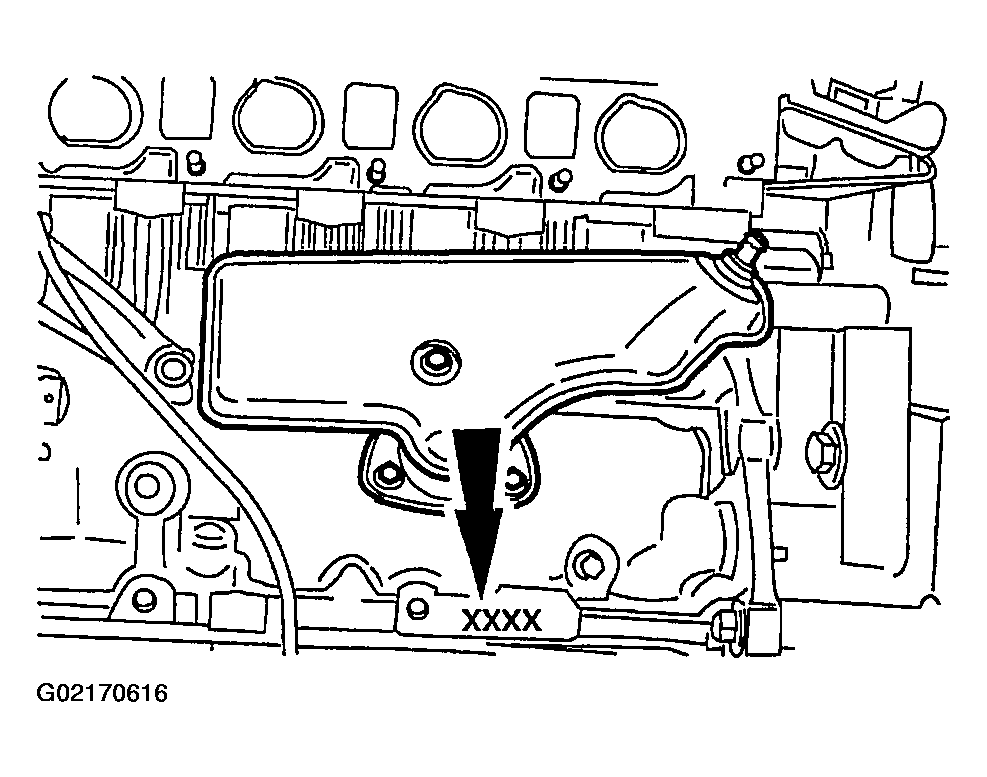

Fig 1: Locating Serial Number On Cylinder Block

Courtesy of MAZDA MOTORS CORP.
