Removal & Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air cleaner outlet pipe.
  2. Remove the ignition wires from the spark plugs.

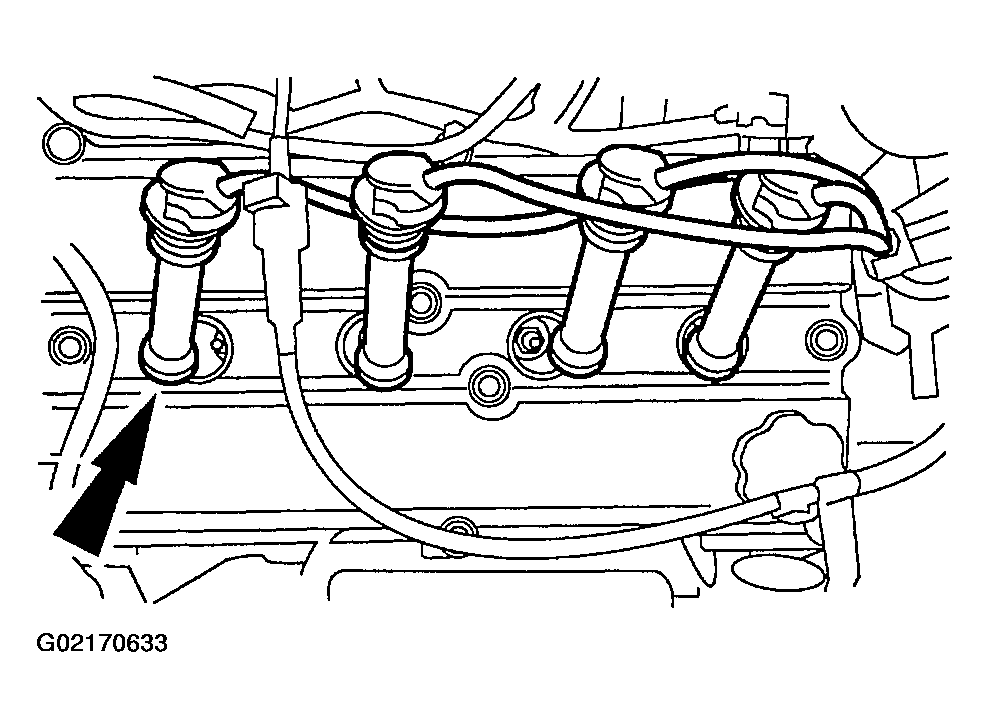

    Fig 1: Removing Ignition Wires
    G02170633Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the throttle cables.
    1. Disconnect the cruise control actuator cable (if equipped).
    2. Disconnect the accelerator cable.

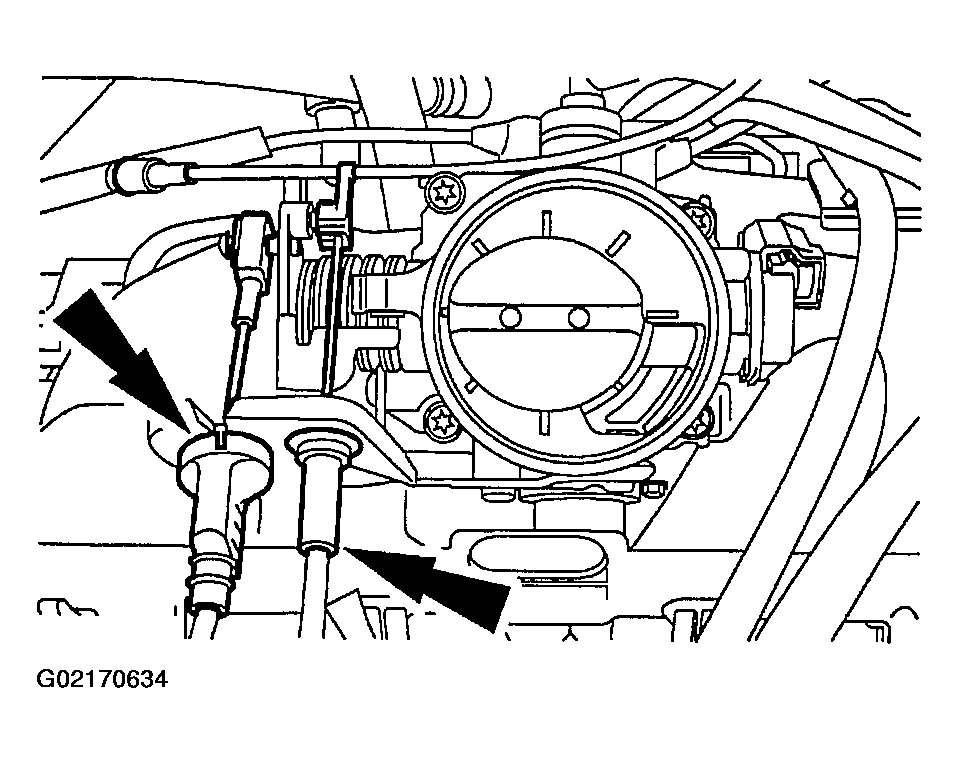

    Fig 2: Disconnecting Throttle Cables
    G02170634Courtesy of MAZDA MOTORS CORP.
  4. Remove the valve cover. Refer to VALVE COVER .
    1. Remove the studbolts
    2. Remove the bolts.

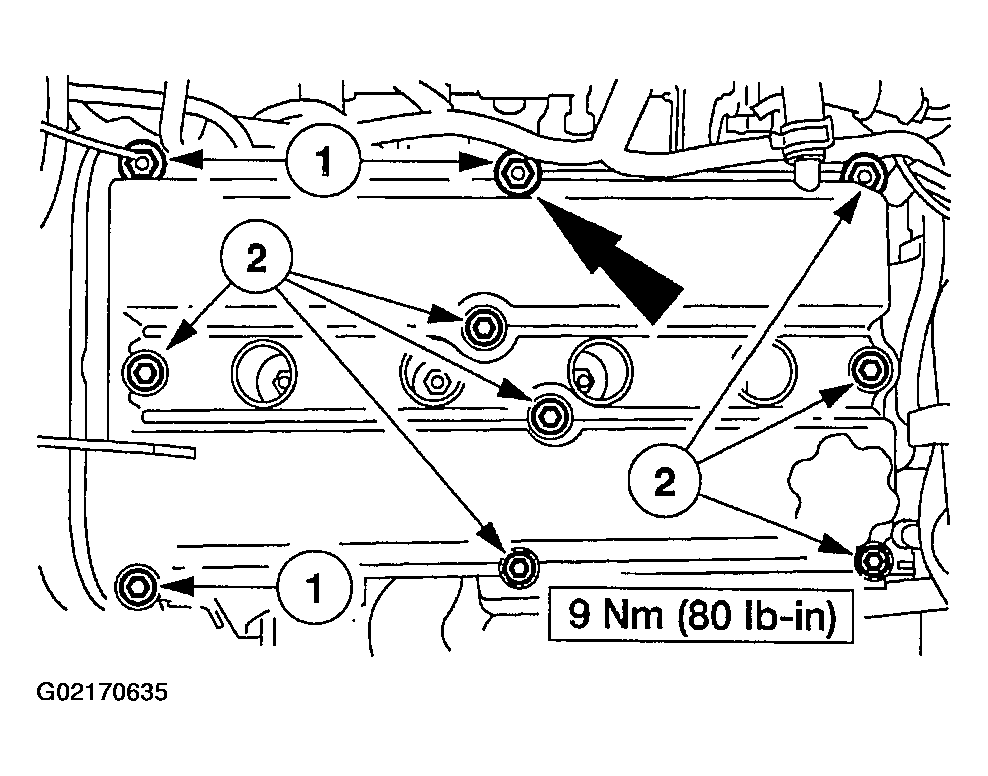

    Fig 3: Removing Valve Cover
    G02170635Courtesy of MAZDA MOTORS CORP.
    5. CAUTION: The valve cover sealing surfaces are soft materials. Do not use abrasive grinding discs to remove gasket material; only use manual scrapers. Do not scratch or gouge sealing surfaces or oil leaks may occur.
  5. Clean and inspect the sealing surfaces of the valve cover and the cylinder head. Both surfaces must be clean and flat.
  6. To install, reverse the removal procedure.
    1. Install a new valve cover gasket if damaged.
