Valve - Valve Spring, Valve Spring Retainer And Valve Stem Seal: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the spark plugs.
Remove the valve tappets. Refer to VALVE TAPPETS .

NOTE: If the air pressure fails to hold the valves closed while carrying out the following steps, valve or valve seat damage is indicated and the cylinder head must be removed.

NOTE: Make sure the applicable piston is at the top of its stroke.

Install the air line with an adapter in the spark plug hole and turn on the air supply.
Install the special tools, compress the valve spring, and remove the valve spring retainer and valve spring.

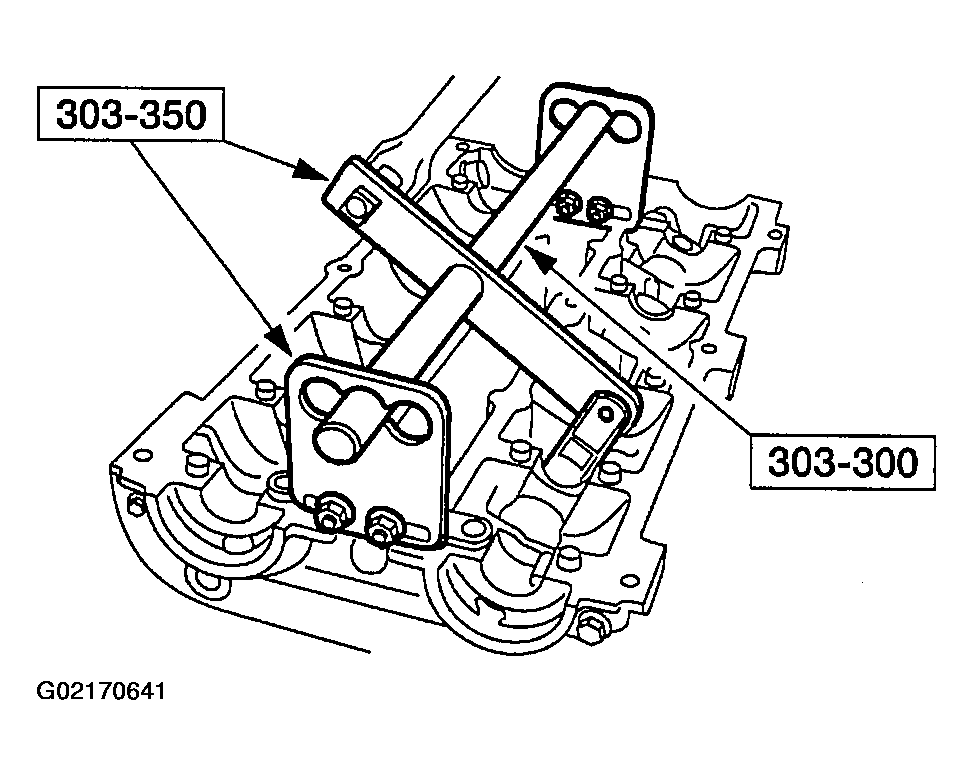

Fig 1: Removing Valve Spring Retainer & Valve Spring
Courtesy of MAZDA MOTORS CORP.
Inspect the valve spring, valve spring retainer and valve spring retainer key. Install new parts as necessary.

NOTE: If air pressure has forced the piston to the bottom of the cylinder, any loss of air pressure will allow the valve(s) to fall into the cylinder. A rubber band, tape or string wrapped around the end of the valve stem will prevent this from happening.

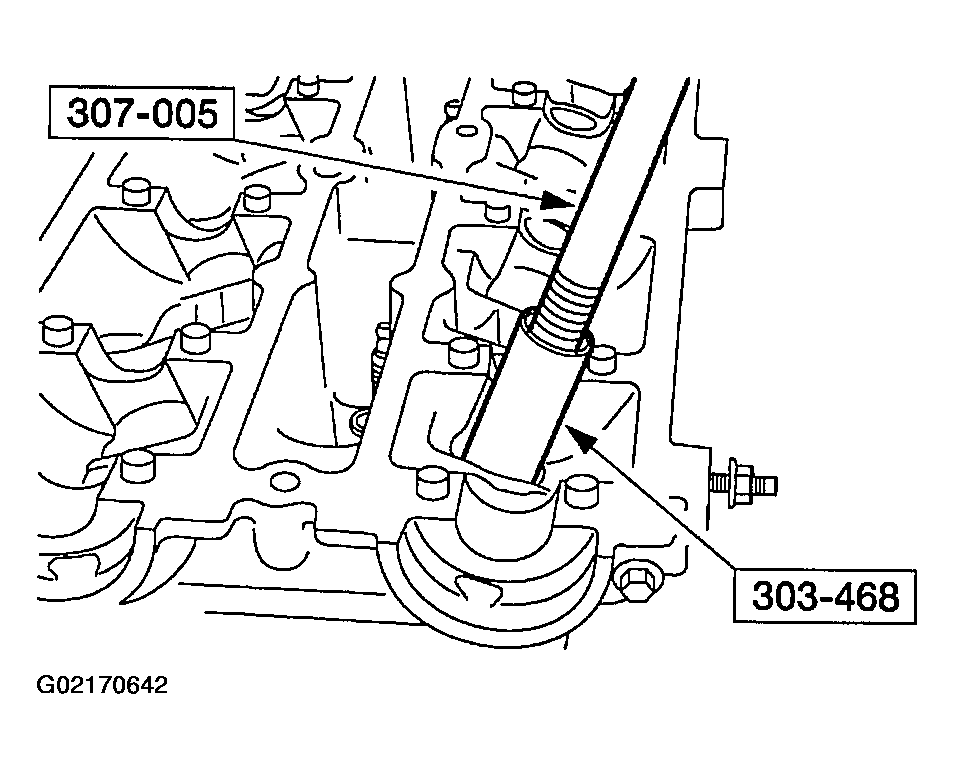

Fig 2: Removing Valve Stem Seal

Courtesy of MAZDA MOTORS CORP.

Use the special tools to remove the valve stem seal.
