Valve - Valve Clearance, Adjust: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Lubricate the valve tappets with SAE 5W-20 Motor Oil.

Install the valve tappets.

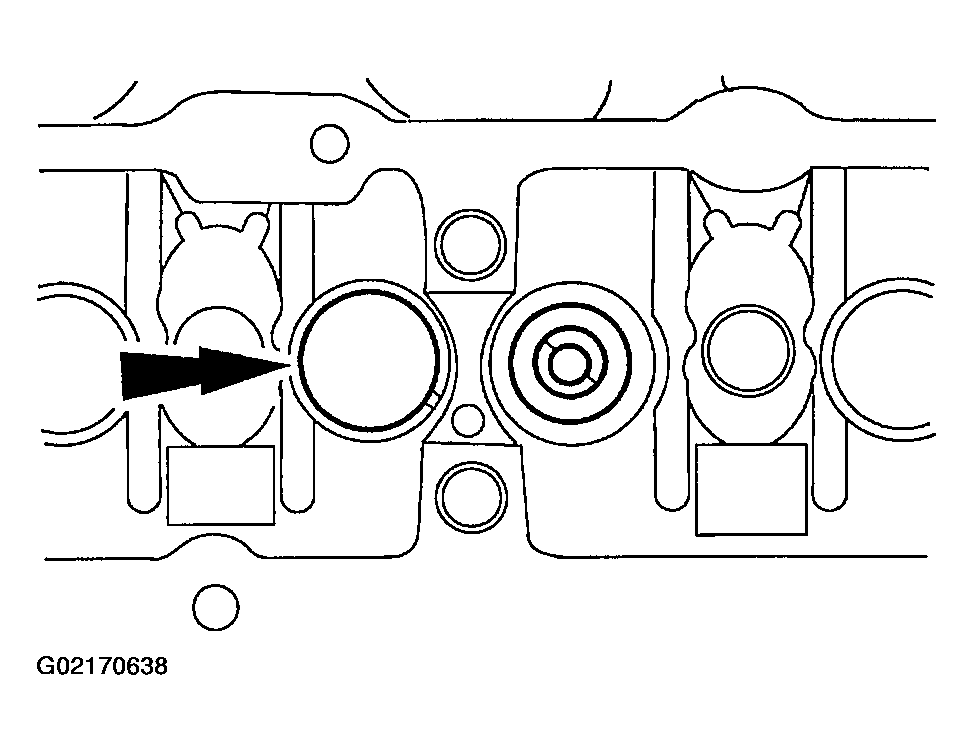

Fig 1: Installing Valve Tappets
Courtesy of MAZDA MOTORS CORP.
Install the camshafts. Refer to CAMSHAFTS .
Confirm each valve's clearance at base circle with the lobe pointed away from the tappet.

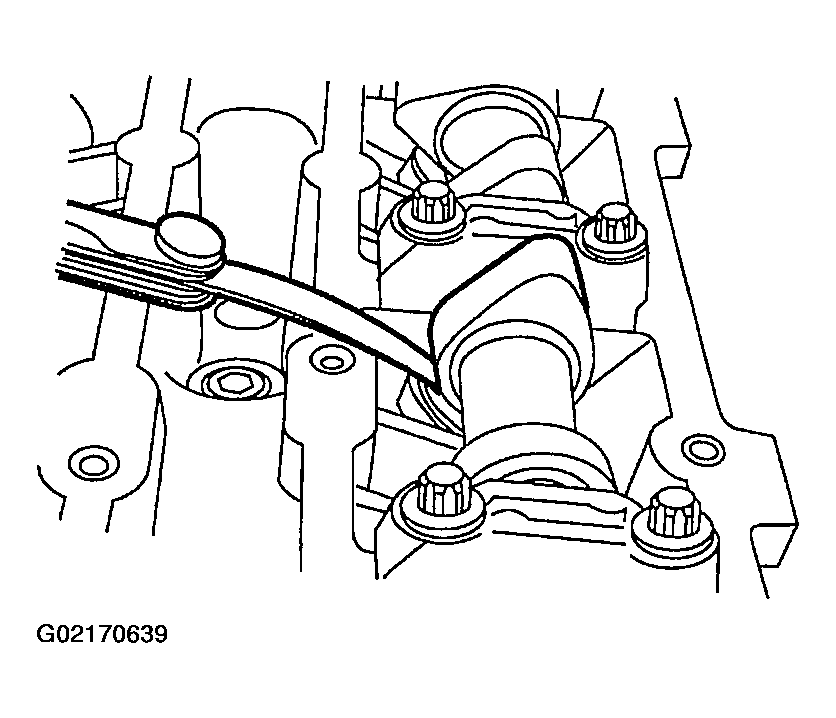

Fig 2: Measuring Valve Clearance
Courtesy of MAZDA MOTORS CORP.
Install the timing belt. Refer to TIMING BELT .
