Removal & Installation

WARNING: This page is about a different variant/trim than selected.

Raise and support the vehicle. Refer to JACKING & HOISTING .
Remove the bolts and the RH lower splash shield.

Fig 1: Removing RH Lower Splash Shield
Courtesy of MAZDA MOTORS CORP.
Loosen the bolt retaining the crankshaft pulley.

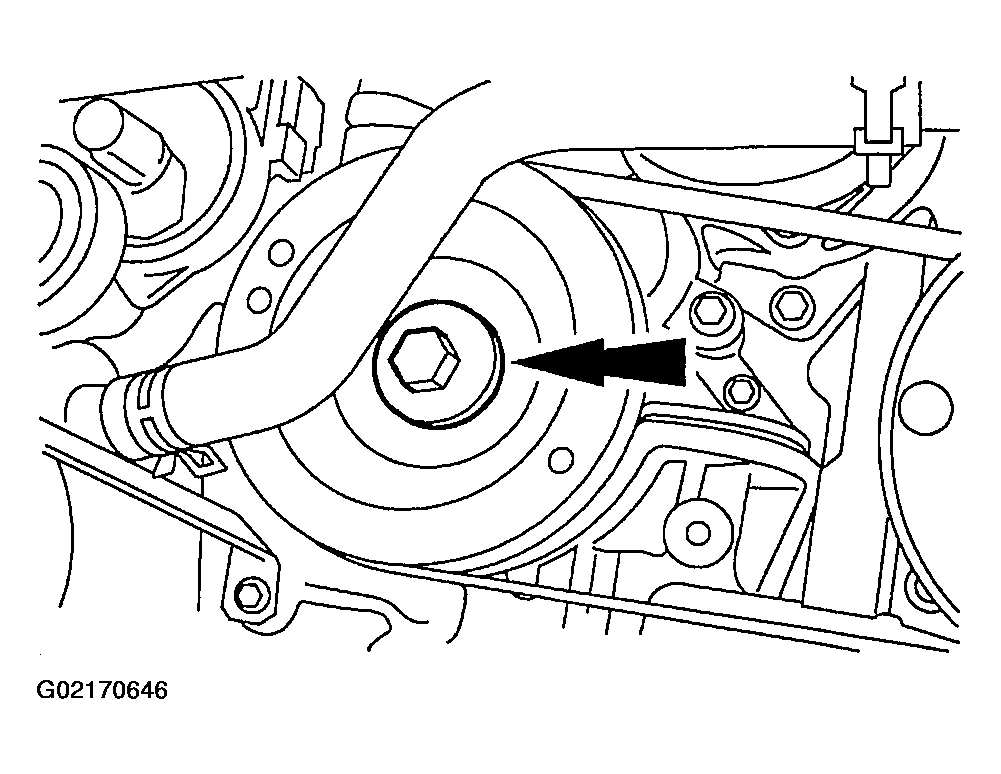

Fig 2: Identifying Crankshaft Pulley Retaining Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the accessory drive belt.

Fig 3: Removing Accessory Drive Belt
Courtesy of MAZDA MOTORS CORP.
Remove the bolt and the crankshaft pulley.

Fig 4: Removing Bolt & Crankshaft Pulley
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
