Crankshaft Front Oil Seal: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Using the special tool, install a new crankshaft front seal.

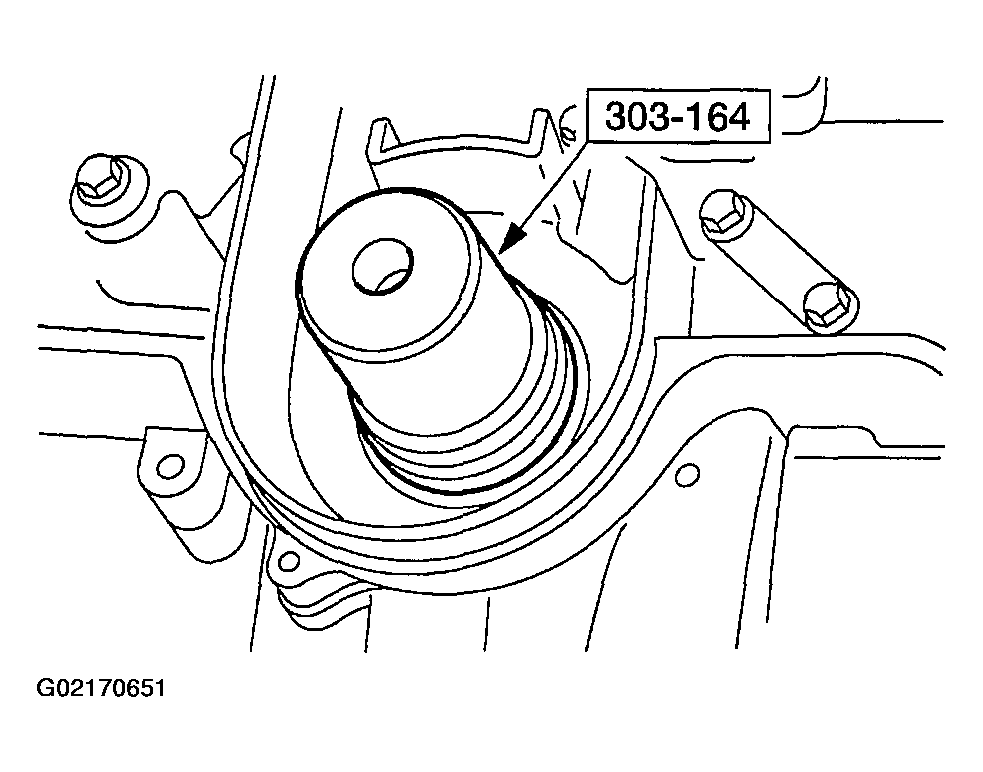

    Fig 1: Installing Crankshaft Front Seal
    G02170651Courtesy of MAZDA MOTORS CORP.
  2. Install the timing belt guide and crankshaft sprocket.

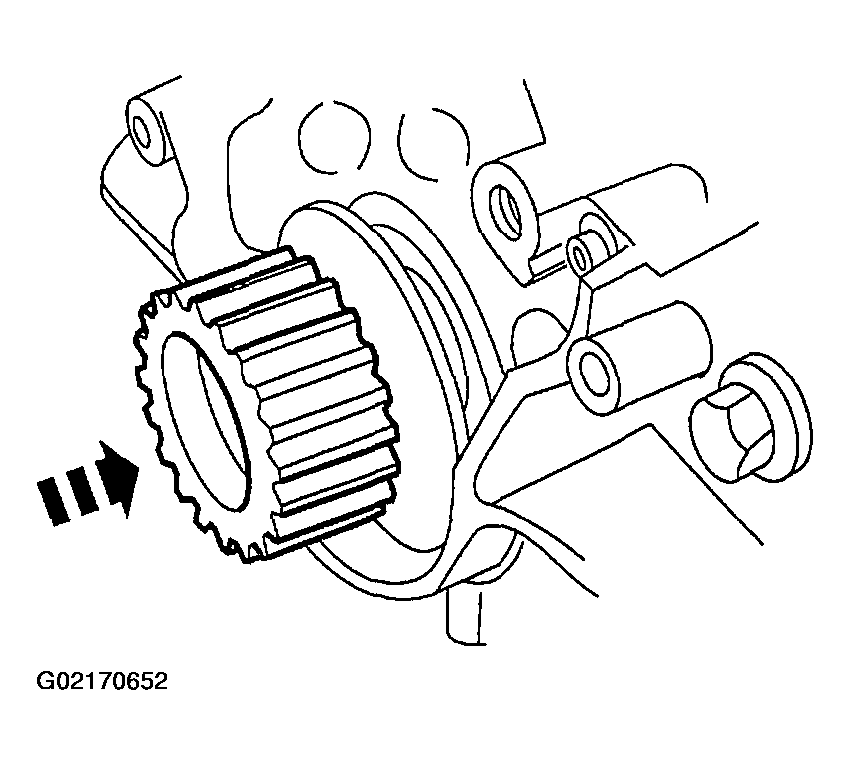

    Fig 2: Installing Timing Belt Guide & Crankshaft Sprocket
    G02170652Courtesy of MAZDA MOTORS CORP.
  3. Install the timing belt. Refer to TIMING BELT .
