Accessory Drive

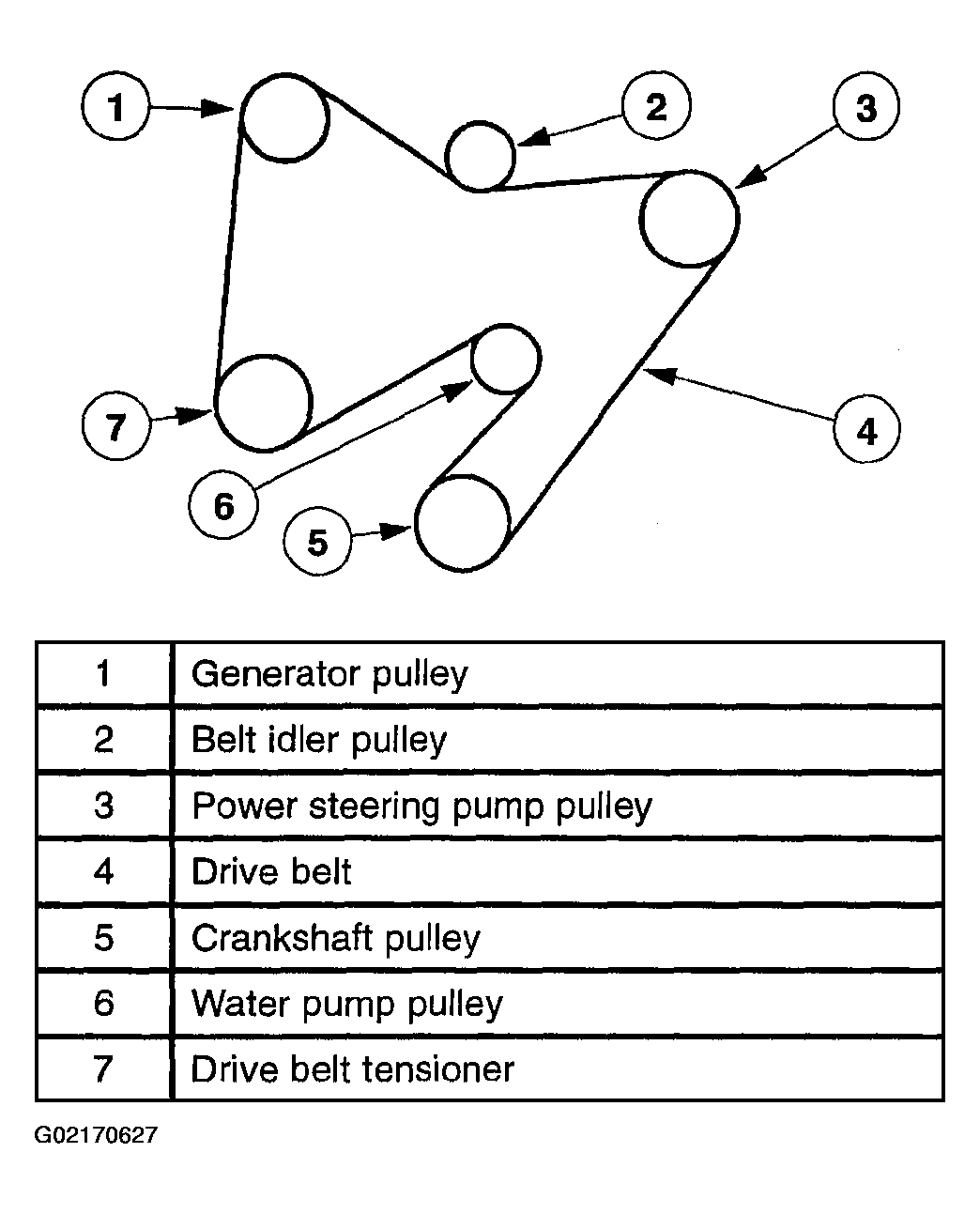

Fig 1: Belt Routing - 2. 0L Zetec Without A/C

Courtesy of MAZDA MOTORS CORP.

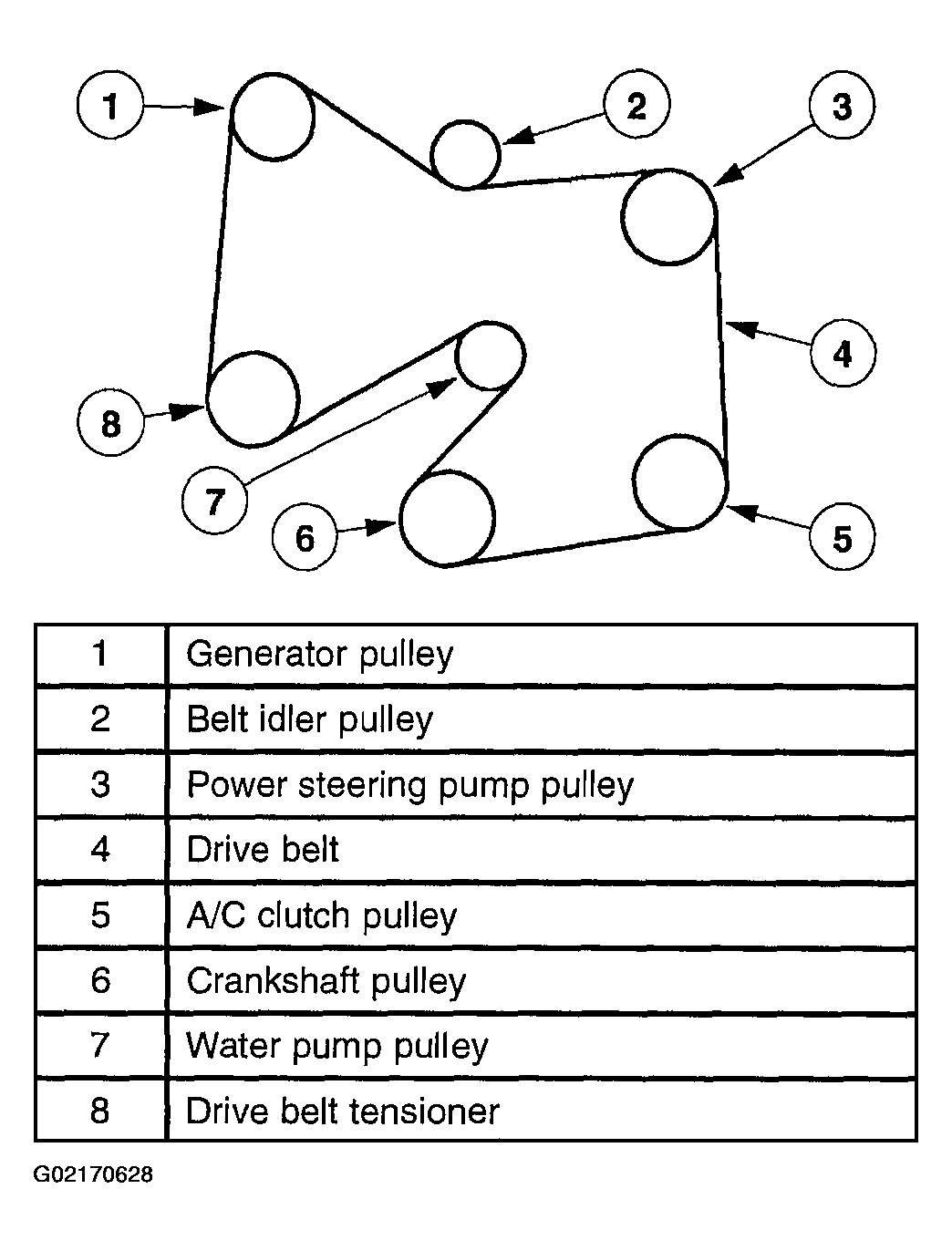

Fig 2: Belt Routing - 2. 0L Zetec With A/C

Courtesy of MAZDA MOTORS CORP.

This vehicle is equipped with:

• A V-ribbed serpentine accessory drive belt.
• An automatic drive belt tensioner.

New drive belts must be of the same type as originally installed.

Check the drive belt condition at 160,934 km (100,000 miles) then after every 24,140 km (15,000 miles).
