Removal & Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the accessory drive belt. Refer to ACCESSORY DRIVE BELT .
  2. Remove the bolt and the accessory drive belt idler pulley.

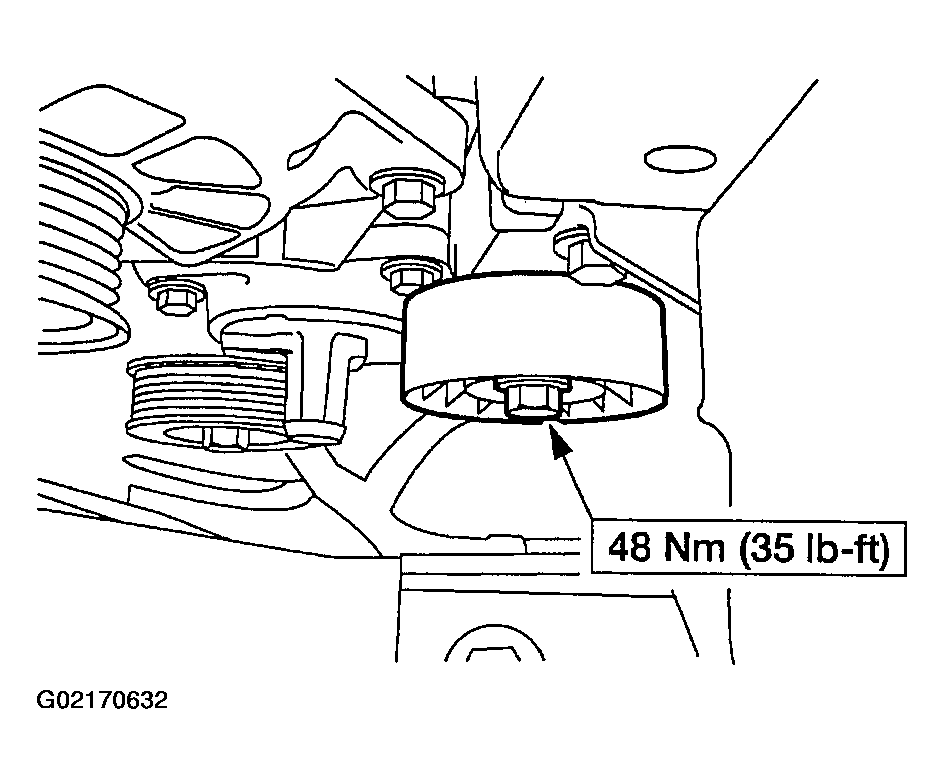

    Fig 1: Removing Accessory Drive Belt Tensioner Idler Pulley
    G02170632Courtesy of MAZDA MOTORS CORP.
  3. To install, reverse the removal procedure.
