Cylinder Head: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the ignition coil bracket.
  2. Remove the thermostat housing.
  3. Remove the Positive Crankcase Ventilation (PCV) tube.
  4. Remove the intake manifold.
  5. Remove the exhaust manifold.
  6. Remove the power steering bracket retainers and position aside.

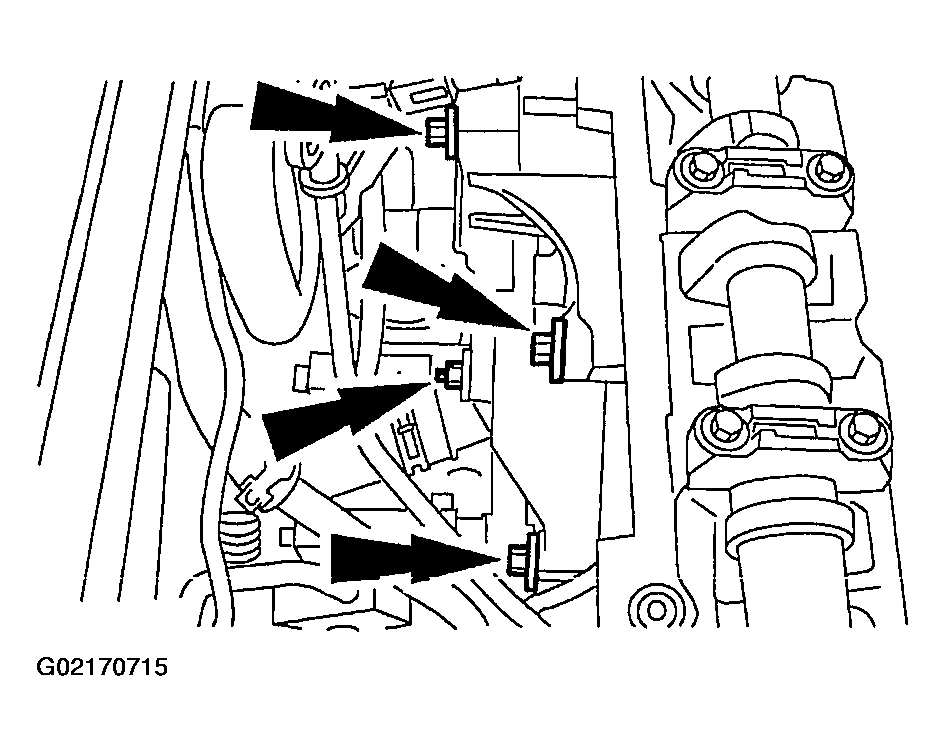

    Fig 1: Removing Power Steering Bracket Retainers
    G02170715Courtesy of MAZDA MOTORS CORP.
  7. Remove the valve tappets. Refer to VALVE TAPPETS .
  8. Raise and support the vehicle. Refer to JACKING & HOISTING .
  9. Install the engine mount lower bracket.

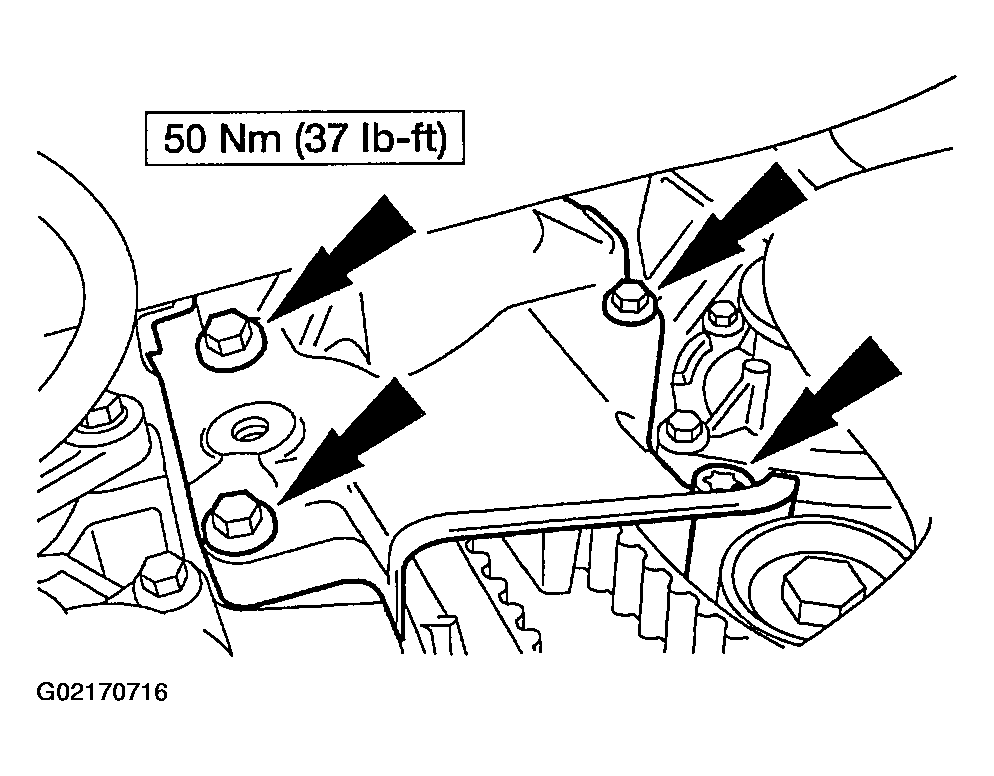

    Fig 2: Installing Engine Mount Lower Bracket
    G02170716Courtesy of MAZDA MOTORS CORP.
  10. Lower the vehicle.
  11. Install the engine mount upper bracket.

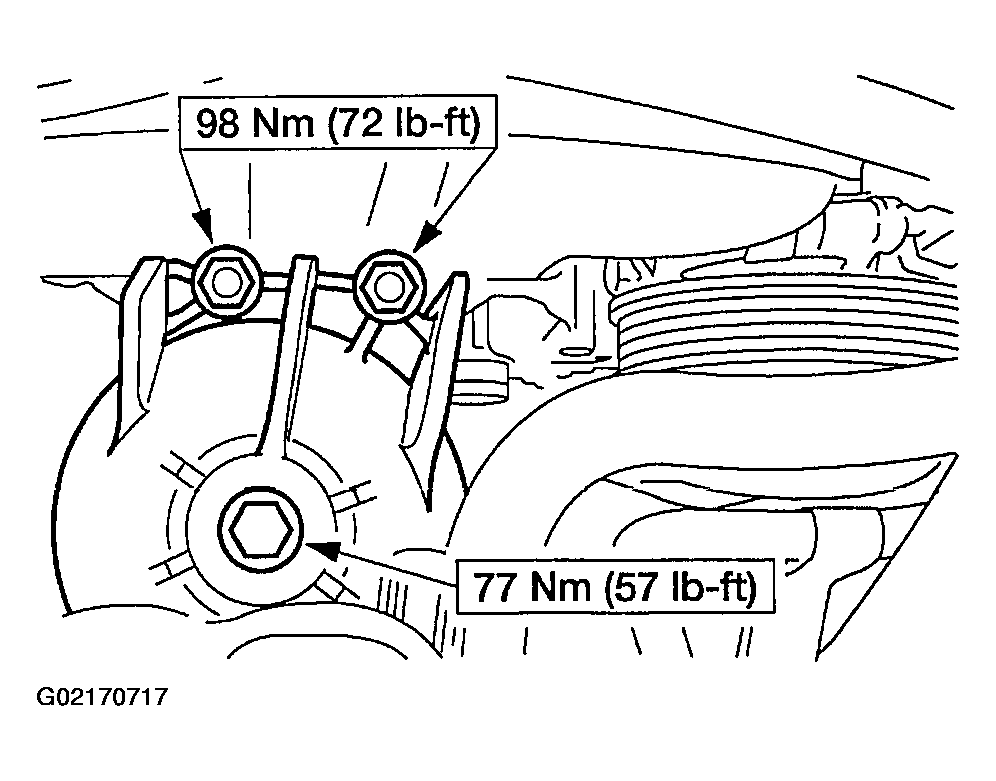

    Fig 3: Installing Engine Mount Upper Bracket
    G02170717Courtesy of MAZDA MOTORS CORP.
  12. Remove the special tool.

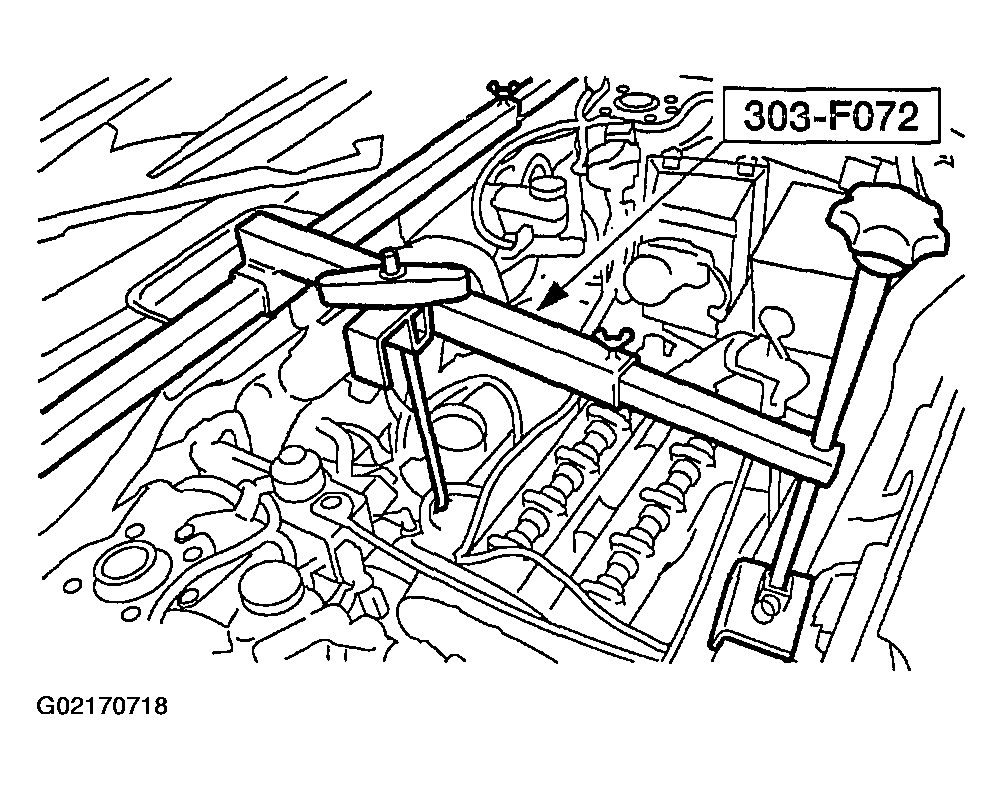

    Fig 4: Removing Engine Support
    G02170718Courtesy of MAZDA MOTORS CORP.
    13. CAUTION: The bolts are torque-to-yield and new bolts must be installed or engine damage may occur.

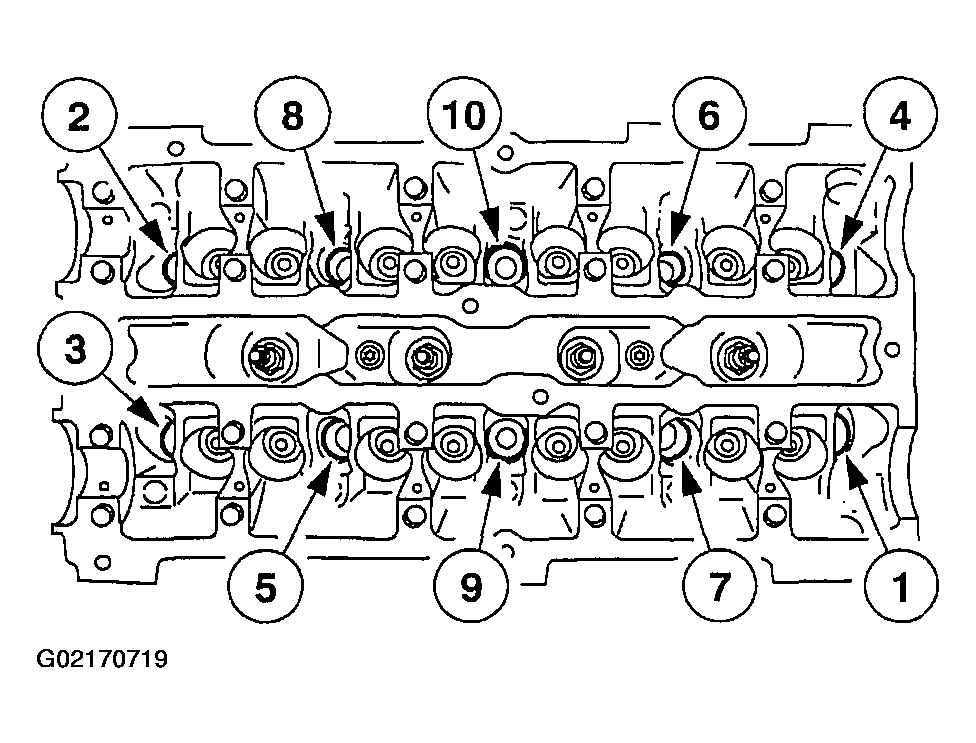

    Fig 5: Identifying Cylinder Head Bolt Removal Sequence
    G02170719Courtesy of MAZDA MOTORS CORP.
  13. Remove the cylinder head bolts in the sequence shown and remove the cylinder head.
    1. Discard the gasket.
    2. Discard the bolts.
