Cylinder Head: Disassembly

WARNING: This page is about a different variant/trim than selected.

Remove the bracket.

Fig 1: Removing Bracket
Courtesy of MAZDA MOTORS CORP.
Remove the rear lifting eye.

Fig 2: Removing Rear Lifting Eye
Courtesy of MAZDA MOTORS CORP.
Remove the front lifting eye.

Fig 3: Removing Front Lifting Eye
Courtesy of MAZDA MOTORS CORP.
Remove the Cylinder Head Temperature (CHT) sensor.

Fig 4: Removing Cylinder Head Temperature Sensor
Courtesy of MAZDA MOTORS CORP.

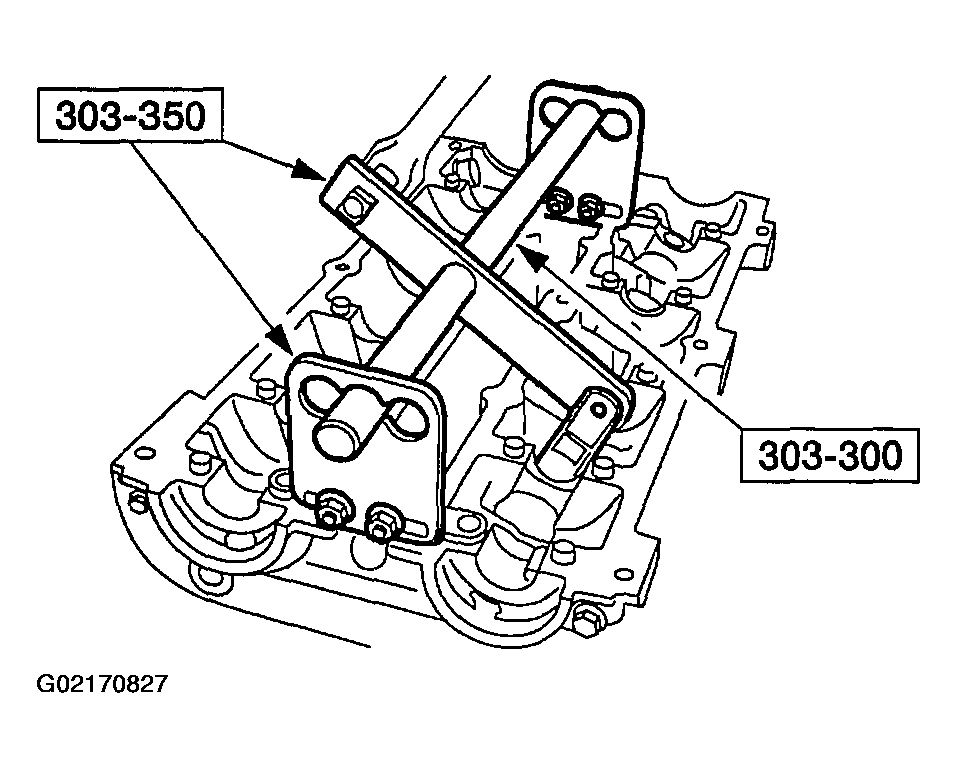

Using the special tools, compress the valve spring and remove the valve spring retainer keys, the valve spring retainers, and the valve springs.
1. Remove the special tools.
Fig 5: Removing Valve Spring Retainer Keys, Valve Spring Retainers, & Valve Springs
Courtesy of MAZDA MOTORS CORP.
Inspect the valve spring, valve spring retainer and valve spring retainer key. Install new parts as necessary.

NOTE: Mark each valve if the original valves are to be used.

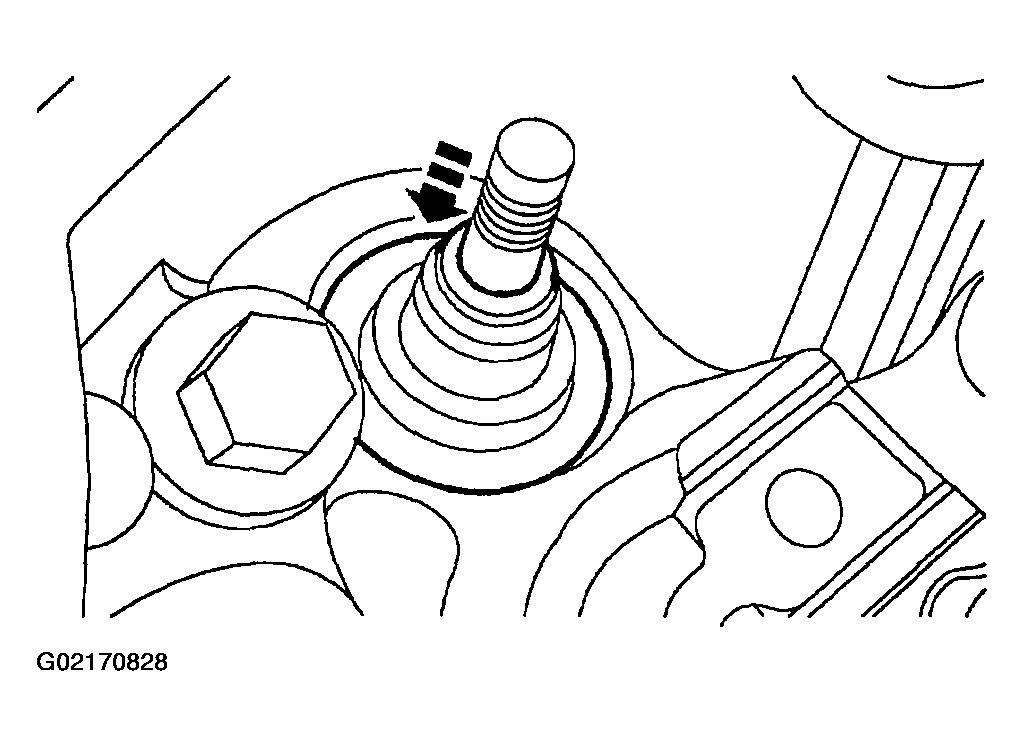

Fig 6: Removing Valves

Courtesy of MAZDA MOTORS CORP.

Remove the valves.

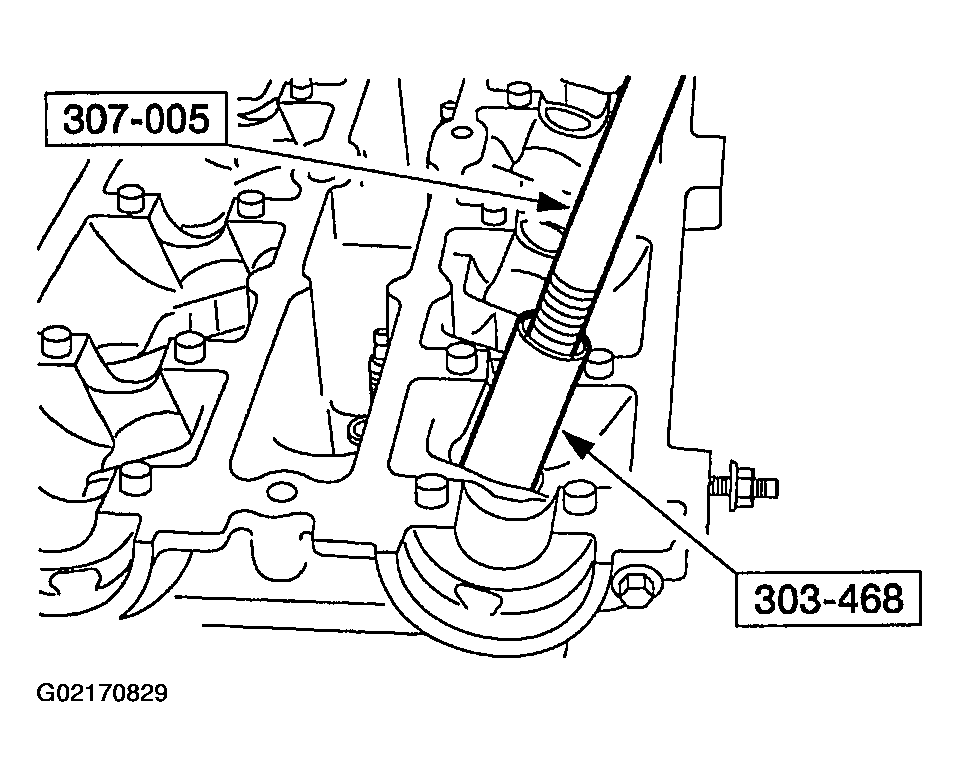

Using the special tools, remove and discard the valve stem seals.

Fig 7: Removing Valve Stem Seals
Courtesy of MAZDA MOTORS CORP.
Inspect the valves. Install new parts as necessary. See MECHANICAL - GENERAL INSPECTION .
