Cylinder Head: Assembly

WARNING: This page is about a different variant/trim than selected.
NOTE: If installing the original valves, make sure the valves are installed in the position from which they were removed. Coat the valve stems with SAE 5W-20 motor oil.
  1. Install the valves.

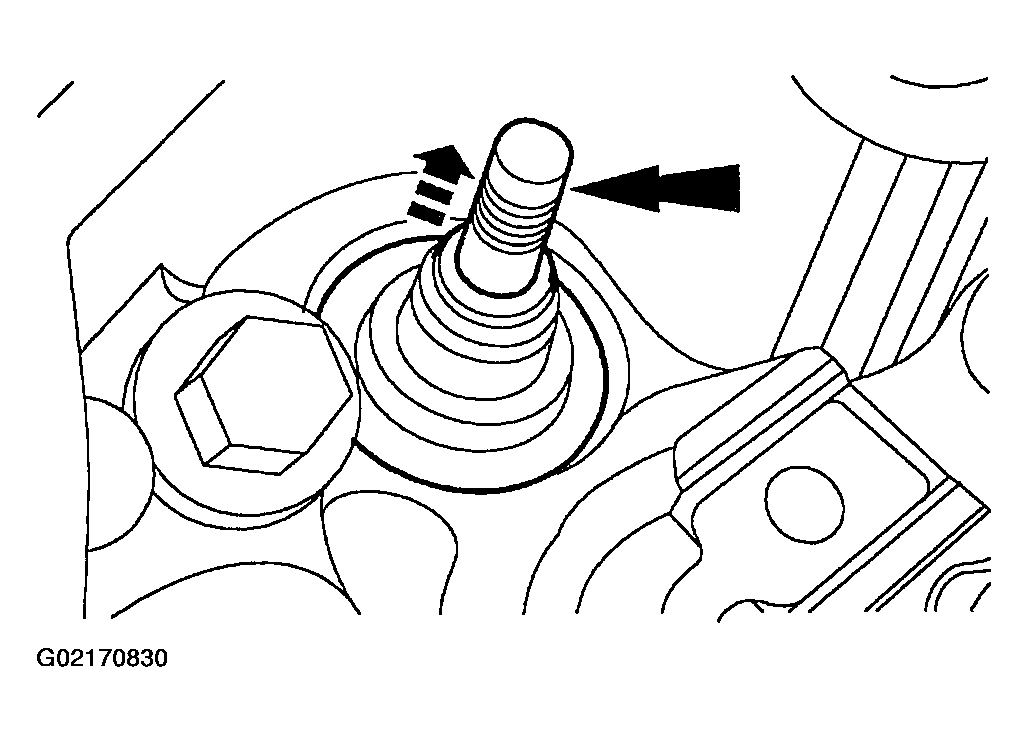

    Fig 1: Installing Valves
    G02170830Courtesy of MAZDA MOTORS CORP.
    2. NOTE: Use the seal protector provided with the replacement kit to prevent damage to the valve stem seals.

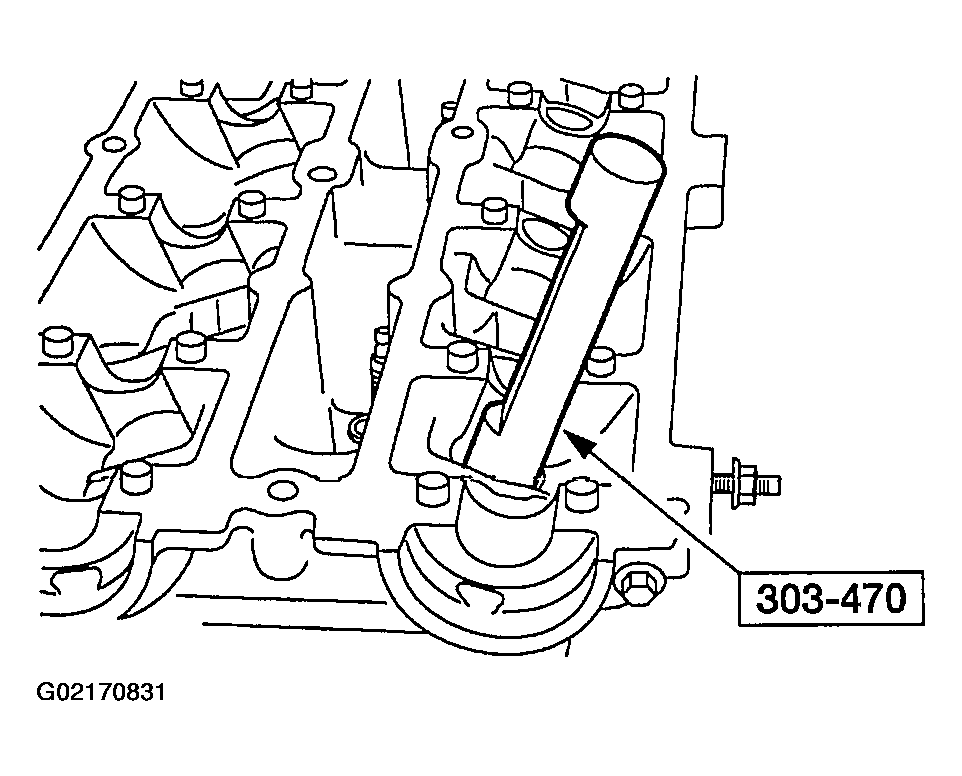

    Fig 2: Installing Valve Stem Seals
    G02170831Courtesy of MAZDA MOTORS CORP.
  2. Lubricate valve and guides with SAE 5W-20 motor oil and using the special tool install the valve stem seals onto the cylinder head valve guides.
  3. Place the valve spring in position over the valve and install the valve spring retainer.
  4. Using the special tools, compress the valve spring and install the valve spring retainer keys.
    1. Remove the special tools.

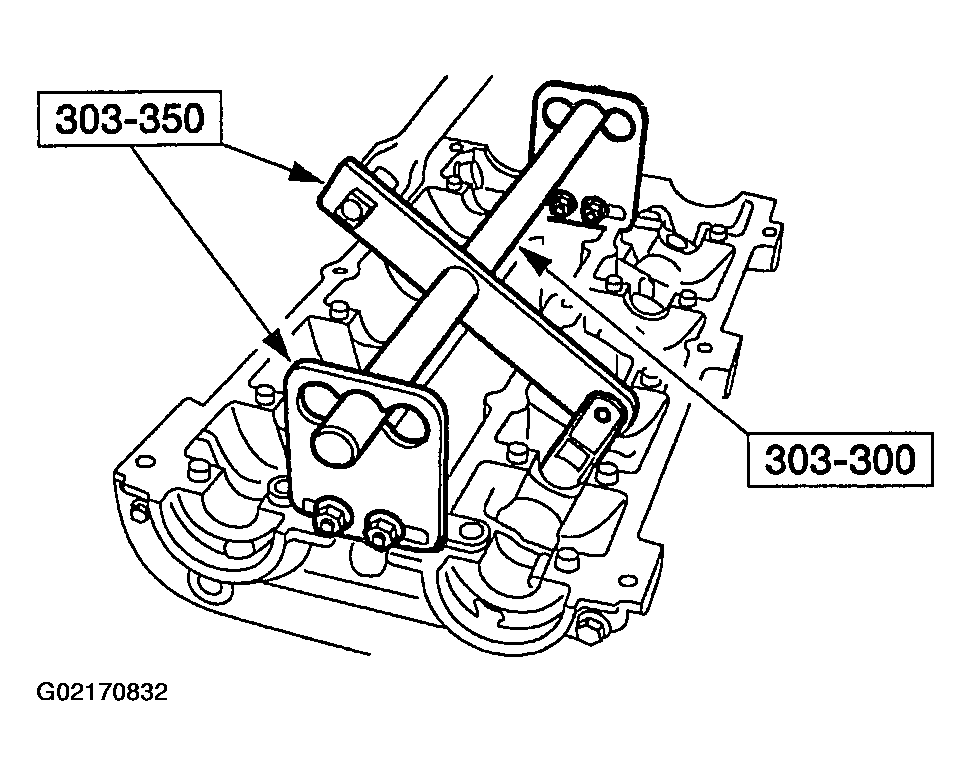

    Fig 3: Installing Valve Spring & Valve Spring Retainer
    G02170832Courtesy of MAZDA MOTORS CORP.
  5. Install the CHT sensor.
    Fig 4: Installing CHT Sensor
    G02170833Courtesy of MAZDA MOTORS CORP.
  6. Install the front lifting eye.
    Fig 5: Installing Front Lifting Eye
    G02170834Courtesy of MAZDA MOTORS CORP.
  7. Install the rear lifting eye.
    Fig 6: Installing Rear Lifting Eye
    G02170835Courtesy of MAZDA MOTORS CORP.
  8. Install the bracket.
    Fig 7: Installing Bracket
    G02170836Courtesy of MAZDA MOTORS CORP.
