Timing Belt: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the valve cover. Refer to VALVE COVER .
  2. Remove the spark plugs.
  3. Remove the catalytic converter.
  4. Remove the bolt, nut, and position the coolant tube aside.

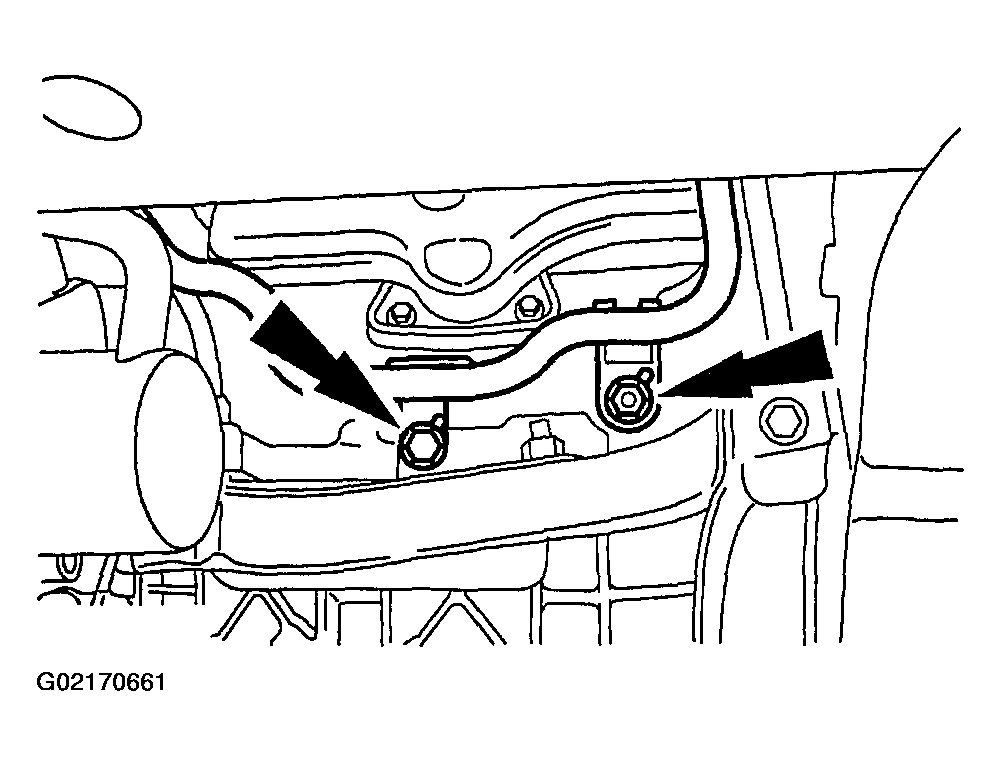

    Fig 1: Removing Coolant Tube
    G02170661Courtesy of MAZDA MOTORS CORP.
  5. Rotate the crankshaft to just before Top Dead Center (TDC) (No. 1 cylinder).

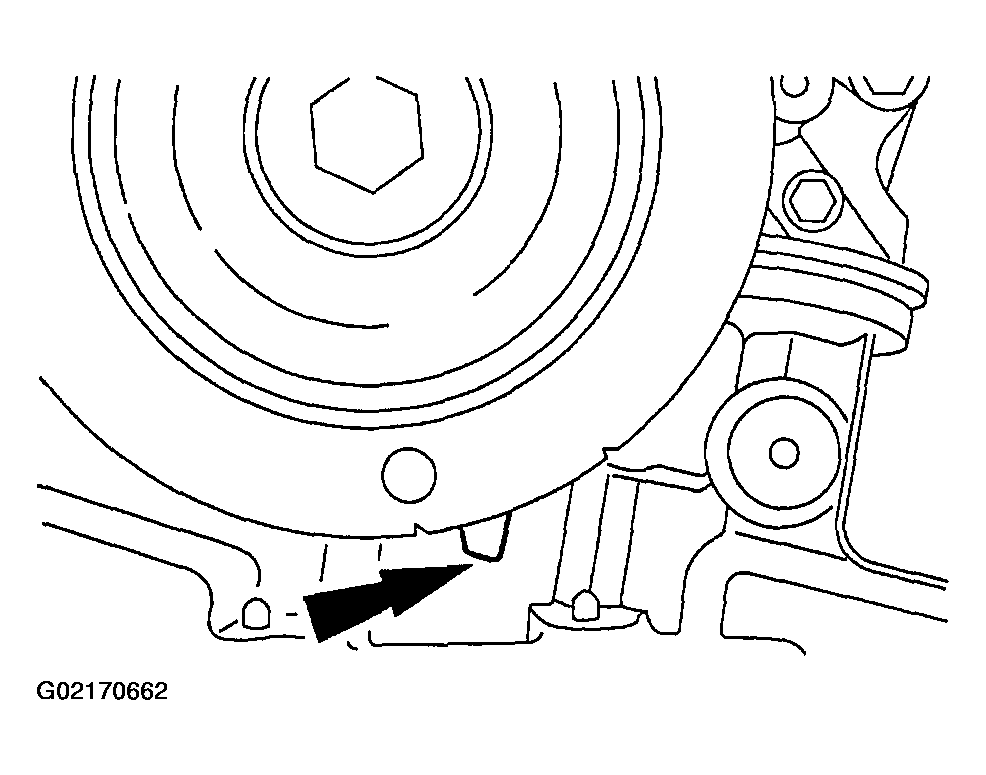

    Fig 2: Identifying Top Dead Center
    G02170662Courtesy of MAZDA MOTORS CORP.
  6. Remove the stud.

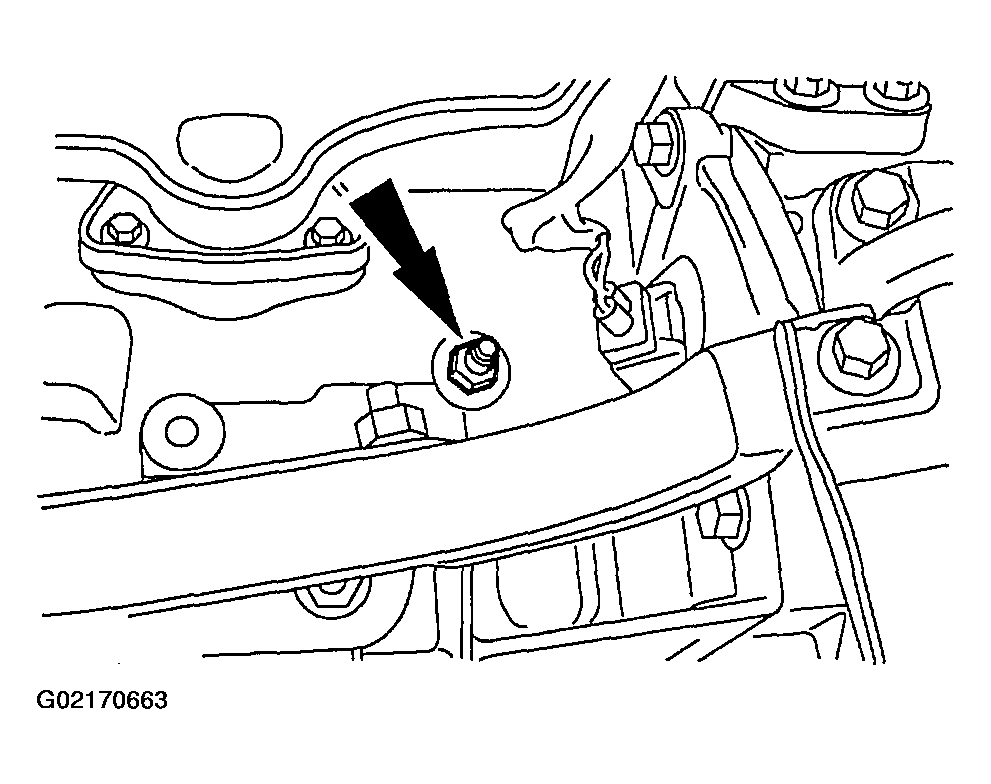

    Fig 3: Removing Stud
    G02170663Courtesy of MAZDA MOTORS CORP.
  7. Install the special tools.

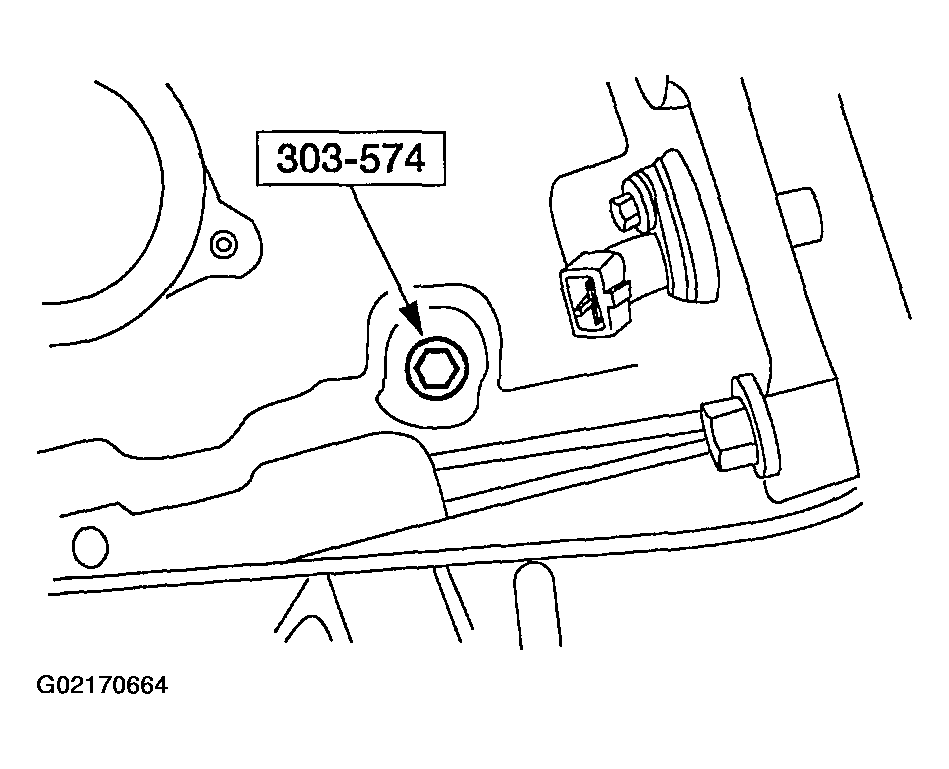

    Fig 4: Installing Special Tool
    G02170664Courtesy of MAZDA MOTORS CORP.
    8. NOTE: Make sure the correct (second) notch in the pulley is indexed to the lower cylinder block.

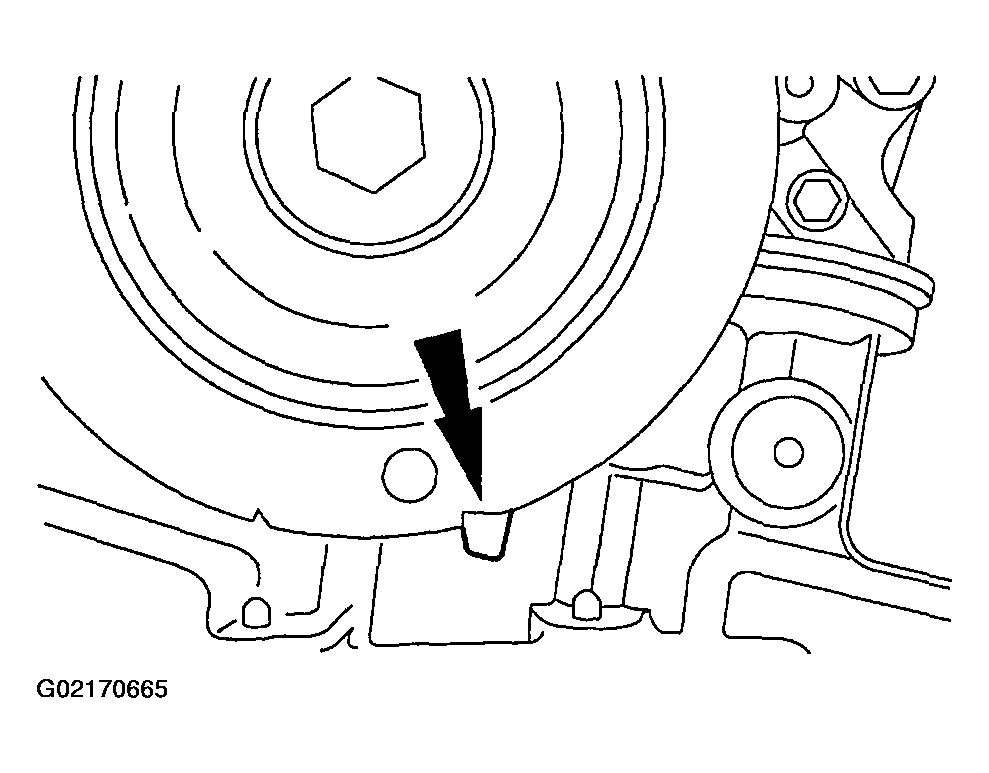

    Fig 5: Rotating Crankshaft Clockwise To TDC
    G02170665Courtesy of MAZDA MOTORS CORP.
  8. Rotate the crankshaft clockwise against the peg to bring it to TDC (No. 1 cylinder).
  9. Loosen the water pump pulley bolts.

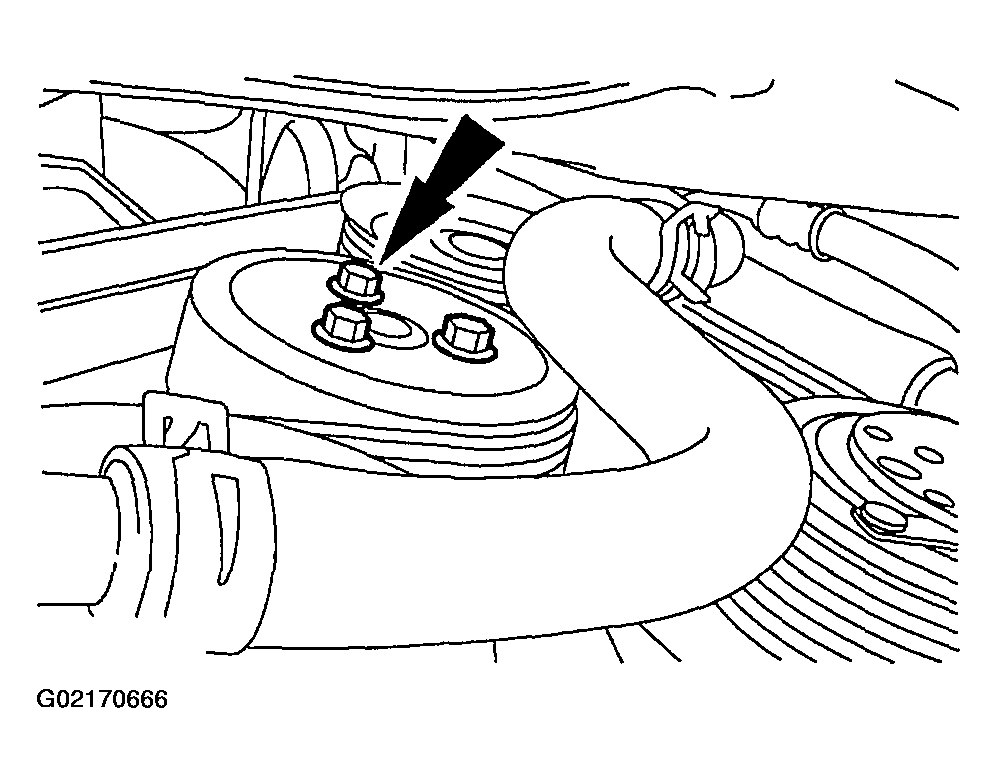

    Fig 6: Identifying Water Pump Pulley Bolts
    G02170666Courtesy of MAZDA MOTORS CORP.
  10. Remove the timing belt covers. Refer to TIMING BELT COVER - UPPER AND LOWER .
  11. Remove the water pump pulley.

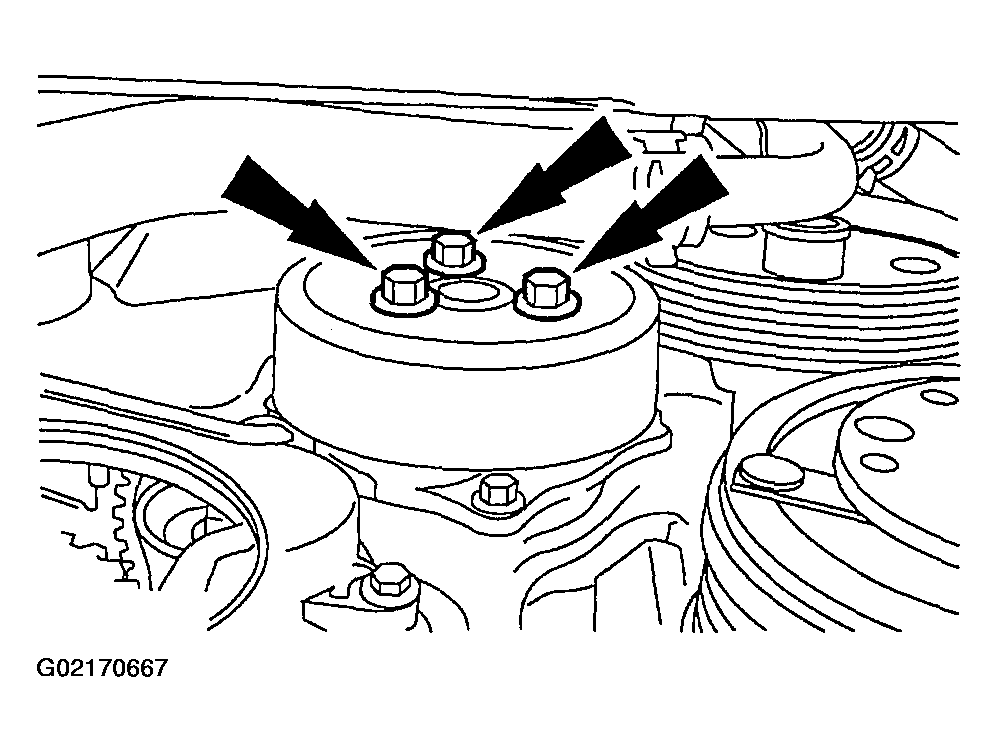

    Fig 7: Removing Water Pump Pulley
    G02170667Courtesy of MAZDA MOTORS CORP.
  12. Remove the accessory drive belt idler pulley.

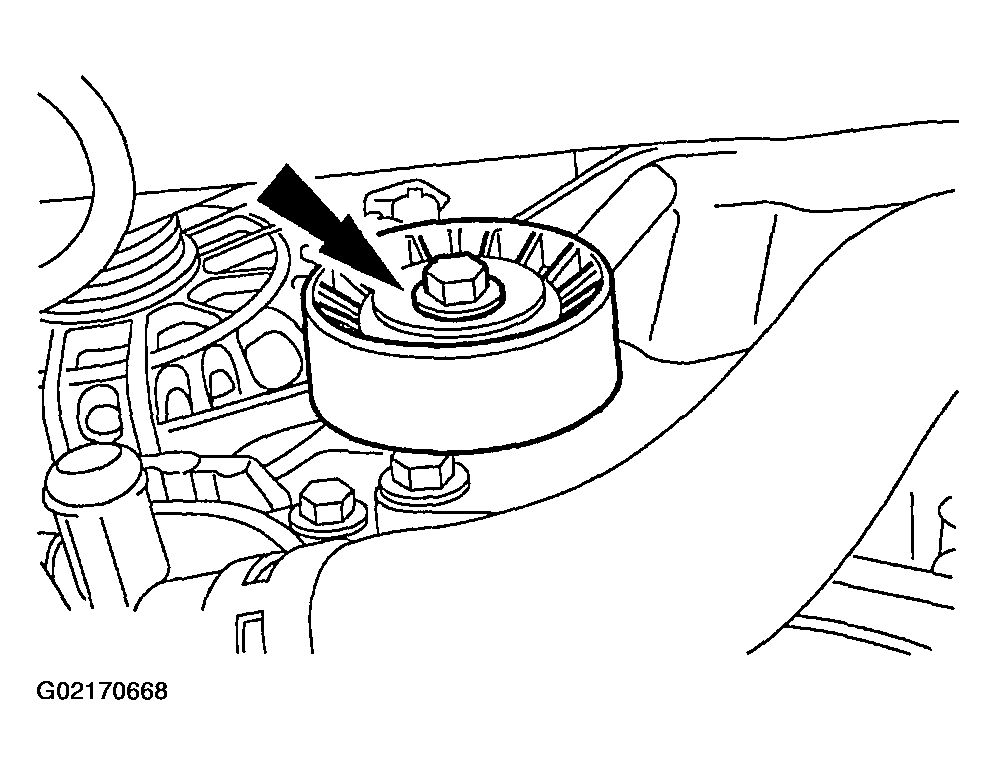

    Fig 8: Removing Accessory Drive Belt Idler Pulley
    G02170668Courtesy of MAZDA MOTORS CORP.
    13. NOTE: Installation of the alignment tool into the exhaust camshaft may require the camshafts to be rotated clockwise slightly.

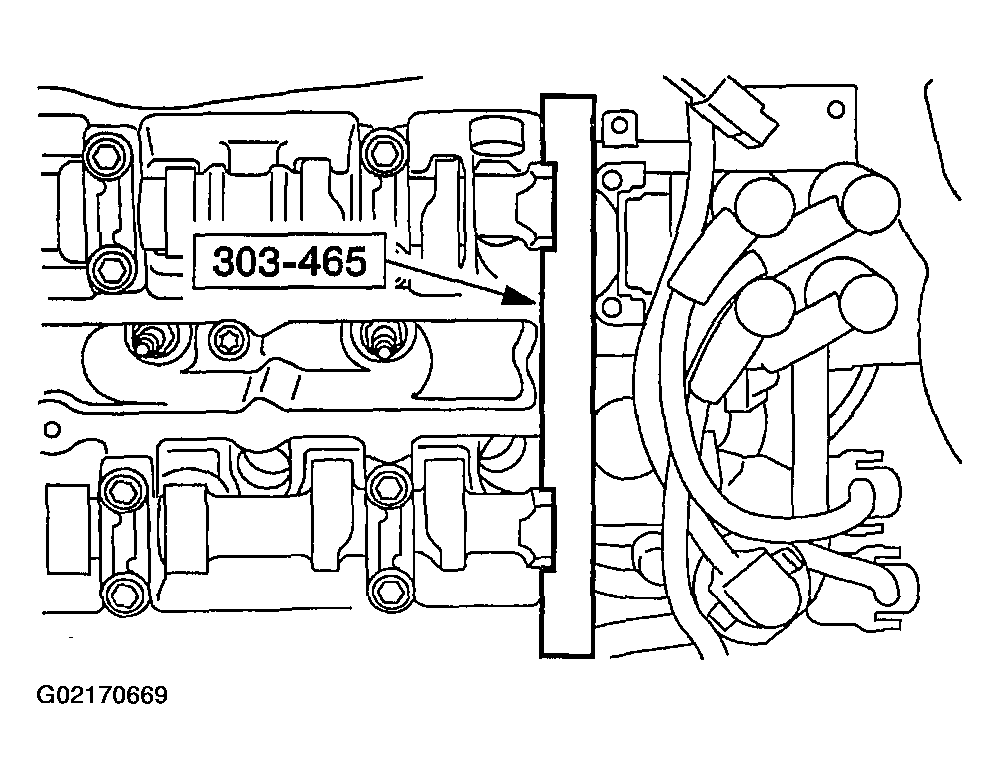

    Fig 9: Aligning Camshafts
    G02170669Courtesy of MAZDA MOTORS CORP.
  13. Install the special tool and align the camshafts.
  14. Raise and support the vehicle, Refer to JACKING & HOISTING .
  15. Remove the bolts and the engine mount lower bracket.

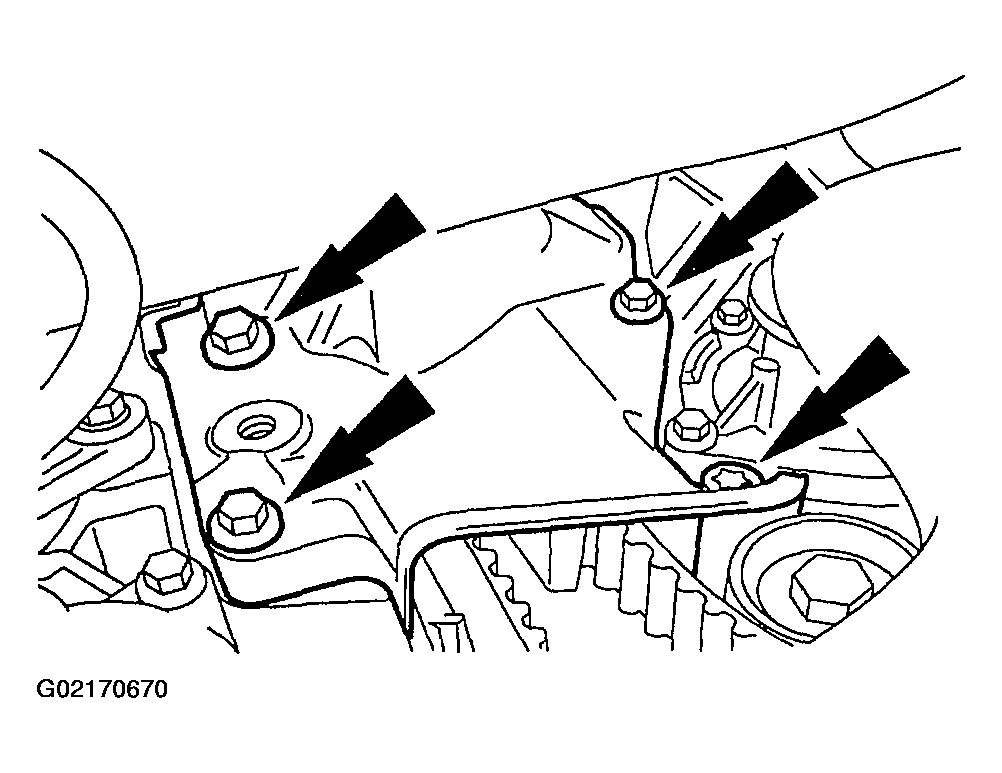

    Fig 10: Removing Bolts & Engine Mount Lower Bracket
    G02170670Courtesy of MAZDA MOTORS CORP.
  16. Loosen the timing belt tensioner pulley and allow to slide down to the bottom of its travel.

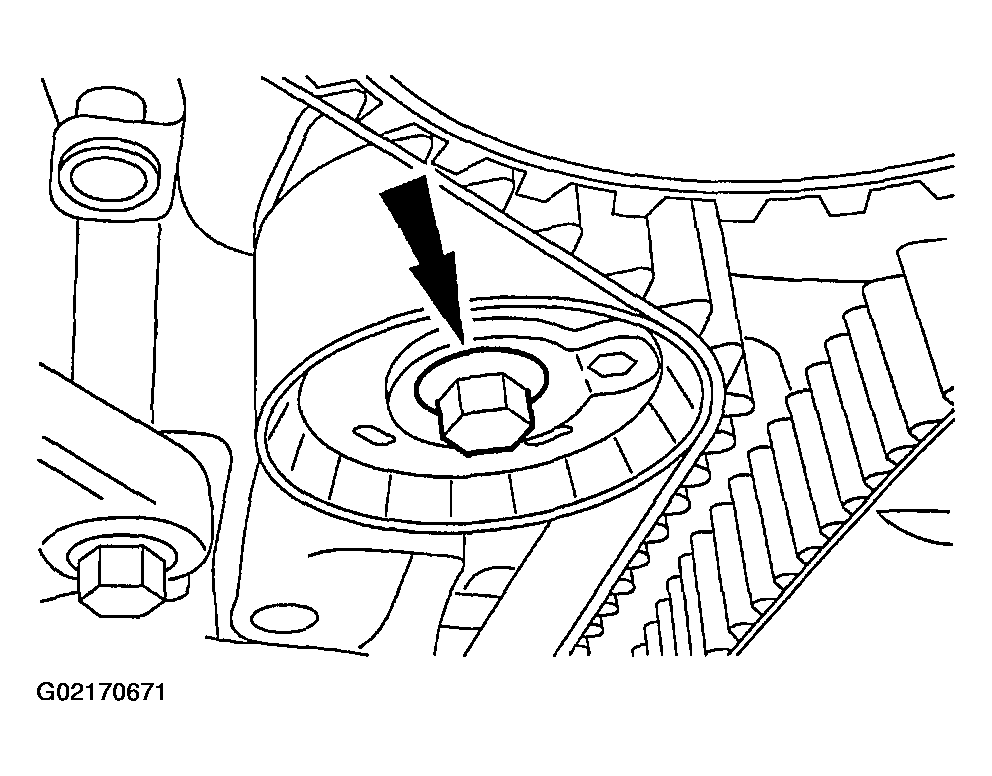

    Fig 11: Loosening Timing Belt Tensioner Pulley
    G02170671Courtesy of MAZDA MOTORS CORP.
    17. CAUTION: Do not reuse the old timing belt. Replace with a new one.

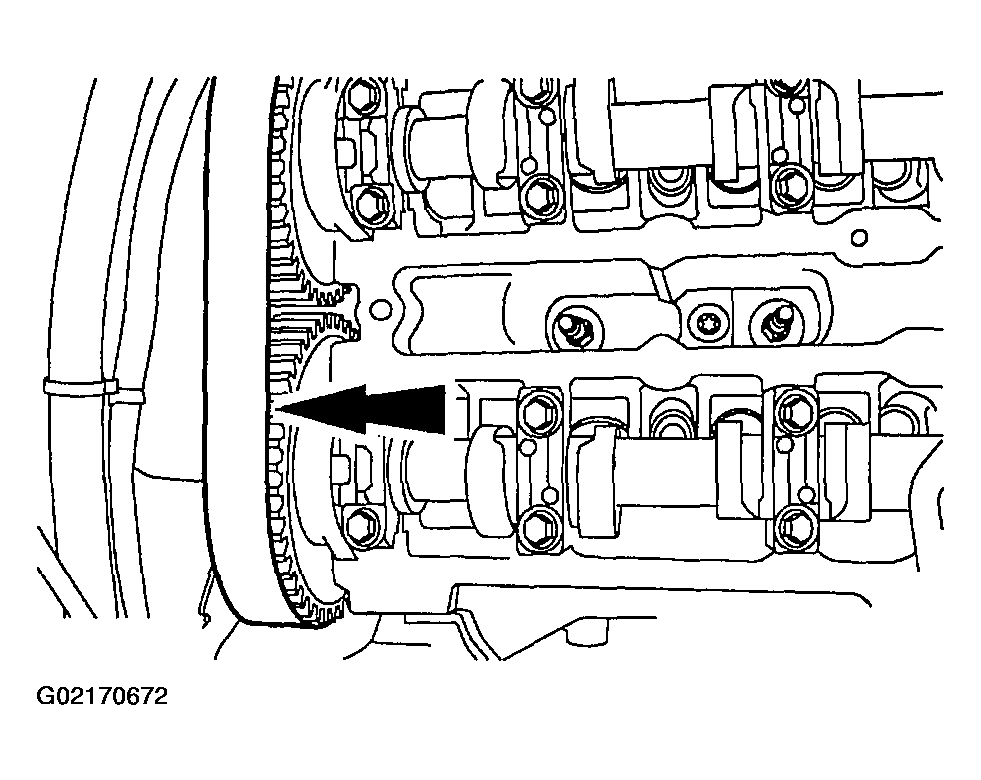

    Fig 12: Sliding Timing Belt Off Of Camshaft & Crankshaft Sprockets
    G02170672Courtesy of MAZDA MOTORS CORP.
  17. Slide the timing belt off of the camshaft and crankshaft sprockets.
  18. Inspect the timing belt for wear. Install a new belt if necessary.
