Timing Belt: Installation

WARNING: This page is about a different variant/trim than selected.
NOTE: Make sure the correct (second) notch in the pulley is indexed to the lower cylinder block.
  1. Slide the crankshaft pulley onto the crankshaft and confirm the crankshaft position is at TDC (No. 1 cylinder) by rotating it clockwise against the alignment peg.
    • Remove the crankshaft pulley.
    Fig 1: Positioning Crankshaft At TDC
    G02170673Courtesy of MAZDA MOTORS CORP.
  2. Lower the vehicle.
  3. Confirm that the timing belt tensioner is installed correctly with the tab positioned in the slot in the inner timing cover.
    Fig 2: Identifying Tab Positioned In Slot In Inner Timing Cover
    G02170674Courtesy of MAZDA MOTORS CORP.
  4. Install the timing belt onto the timing belt sprockets.
    Fig 3: Installing Timing Belt Onto Timing Belt Sprockets
    G02170675Courtesy of MAZDA MOTORS CORP.
  5. Adjust the timing belt tensioner.
    1. Using a 6mm Allen wrench, rotate the adjuster counterclockwise and align the marks as shown.
    2. Tighten the tensioner pulley bolt.
    Fig 4: Adjusting Timing Belt Tensioner
    G02170676Courtesy of MAZDA MOTORS CORP.
  6. Raise and support the vehicle. Refer to JACKING & HOISTING .
  7. Install the front engine mount lower bracket.
    Fig 5: Installing Front Engine Mount Lower Bracket
    G02170677Courtesy of MAZDA MOTORS CORP.
  8. Install the accessory drive belt idler pulley.
    Fig 6: Installing Accessory Drive Belt Idler Pulley
    G02170678Courtesy of MAZDA MOTORS CORP.
  9. Install the water pump pulley.
    1. Hand tighten the bolts.
    Fig 7: Installing Water Pump Pulley
    G02170679Courtesy of MAZDA MOTORS CORP.
  10. Install the timing belt covers. Refer to TIMING BELT COVER - UPPER AND LOWER .
  11. Tighten the water pump pulley bolts.
    Fig 8: Tightening Water Pump Pulley Bolts
    G02170680Courtesy of MAZDA MOTORS CORP.
  12. Remove the special tool.
    Fig 9: Removing Special Tool
    G02170681Courtesy of MAZDA MOTORS CORP.

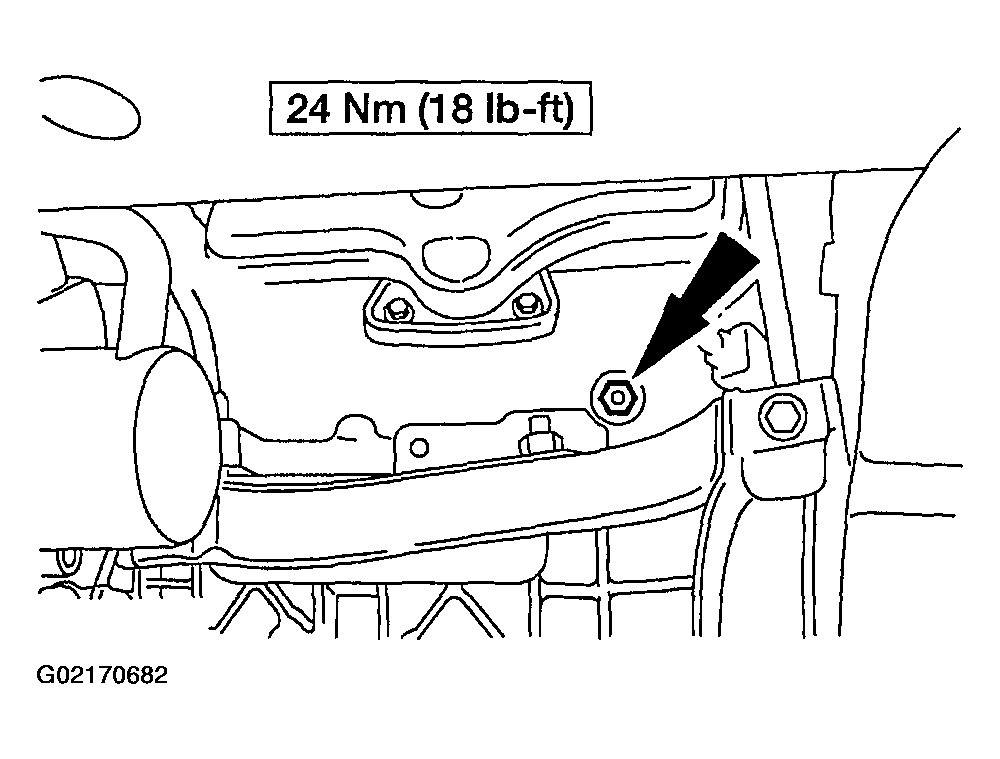

  13. Install the stud.
    Fig 10: Installing Stud
    G02170682Courtesy of MAZDA MOTORS CORP.
  14. Install the coolant tube.
    Fig 11: Installing coolant tube
    G02170683Courtesy of MAZDA MOTORS CORP.
  15. Install the catalytic converter.
  16. Remove the special tool.
    Fig 12: Removing Engine Support
    G02170684Courtesy of MAZDA MOTORS CORP.
  17. Install the valve cover. Refer to VALVE COVER .
  18. Install the spark plugs.
