Removal & Installation

WARNING: This page is about a different variant/trim than selected.

Disconnect the battery ground cable.
Remove the crankshaft pulley. Refer to CRANKSHAFT PULLEY .

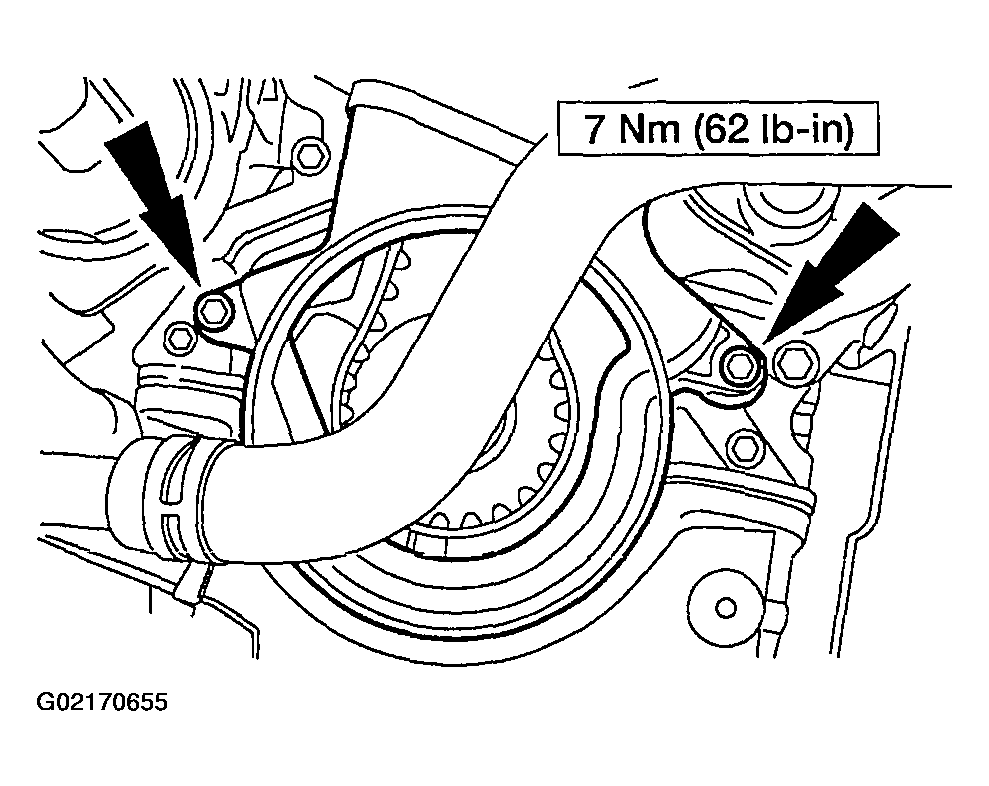

Remove the bolts and the lower timing belt cover.

Fig 1: Removing Lower Timing Belt Cover
Courtesy of MAZDA MOTORS CORP.
Lower the vehicle.

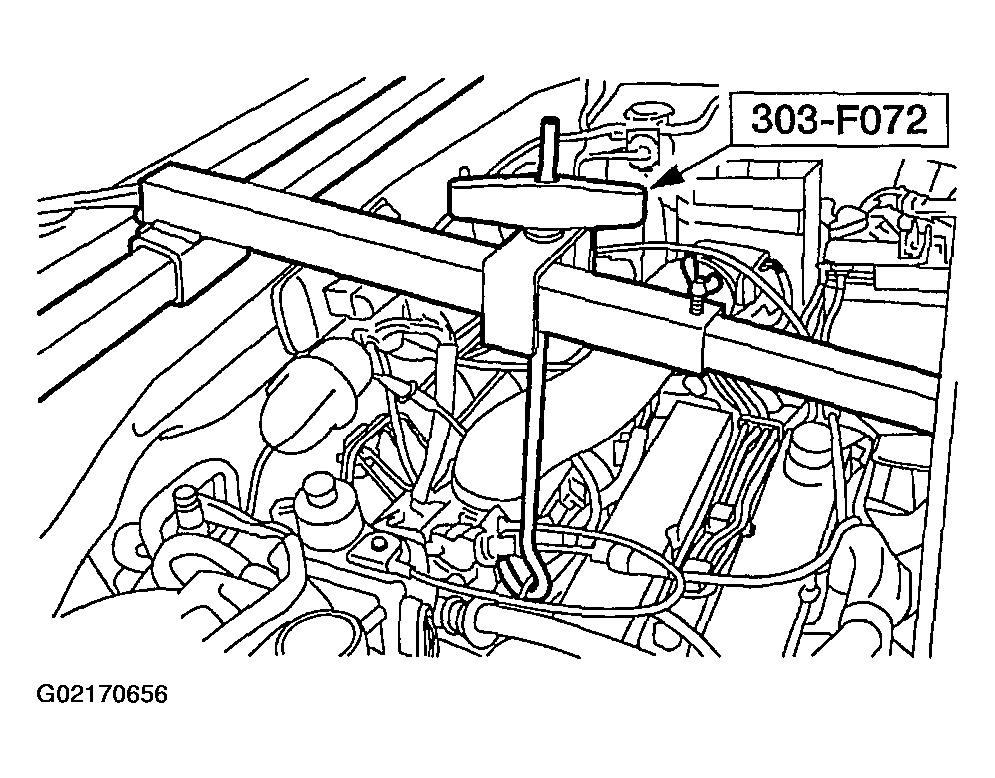

Install the special tool.

Fig 2: Installing Engine Support
Courtesy of MAZDA MOTORS CORP.

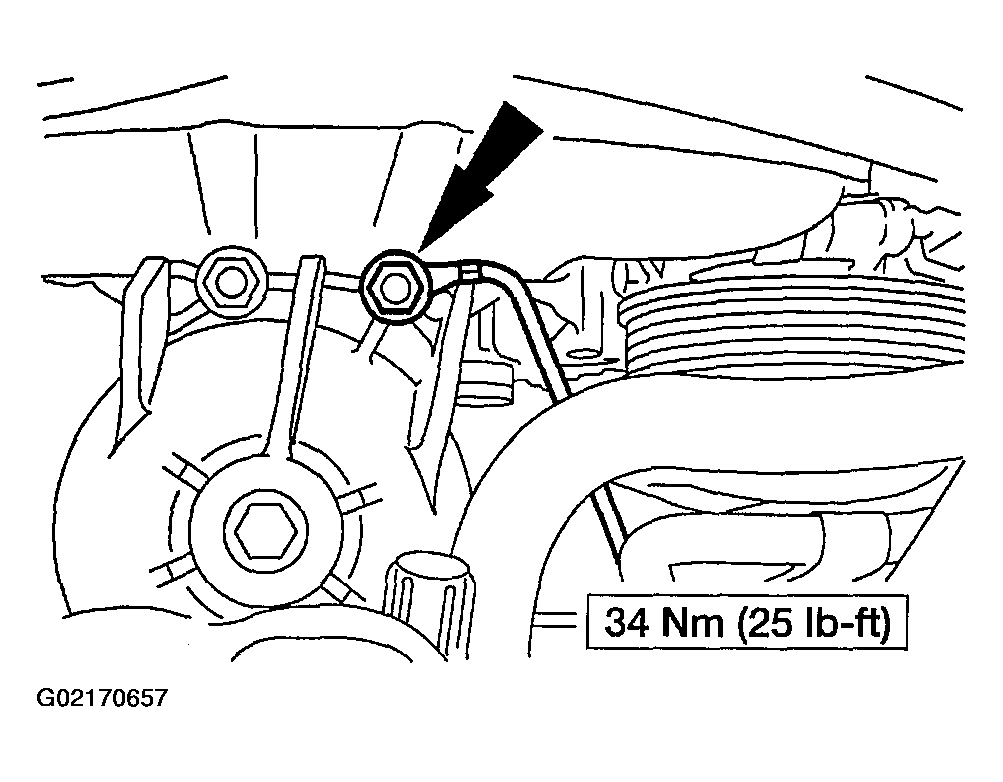

Remove the ground strap.

Fig 3: Removing Ground Strap
Courtesy of MAZDA MOTORS CORP.

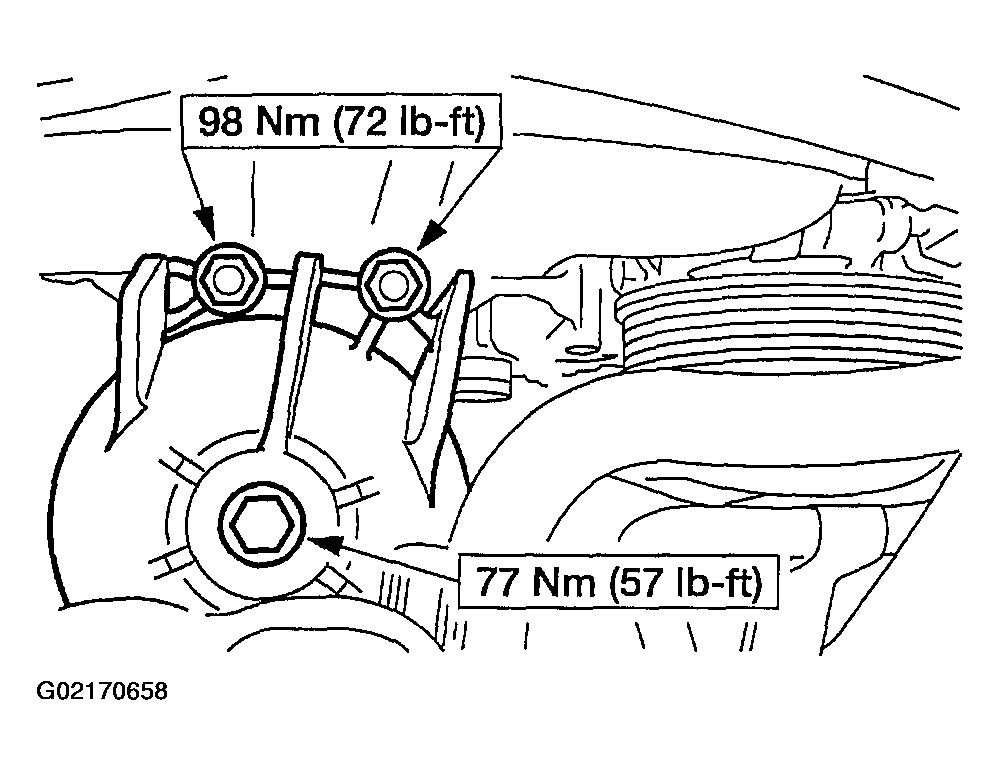

Remove the engine mount upper bracket.

Fig 4: Removing Engine Mount Upper Bracket
Courtesy of MAZDA MOTORS CORP.

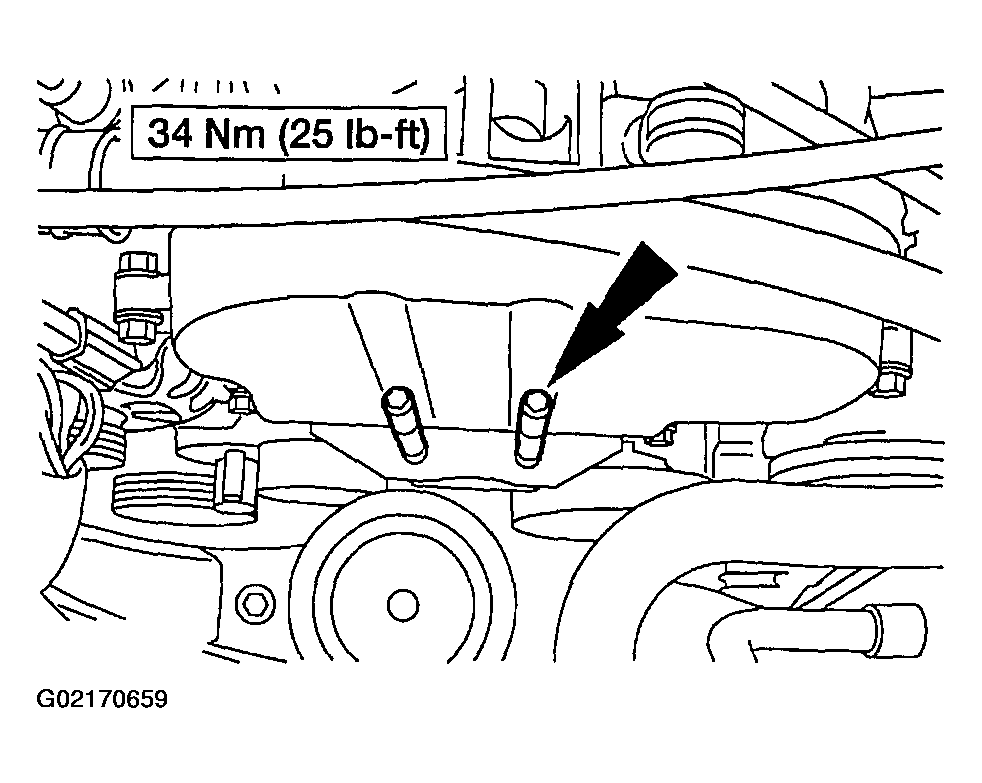

Remove the studs.

Fig 5: Removing Studs
Courtesy of MAZDA MOTORS CORP.

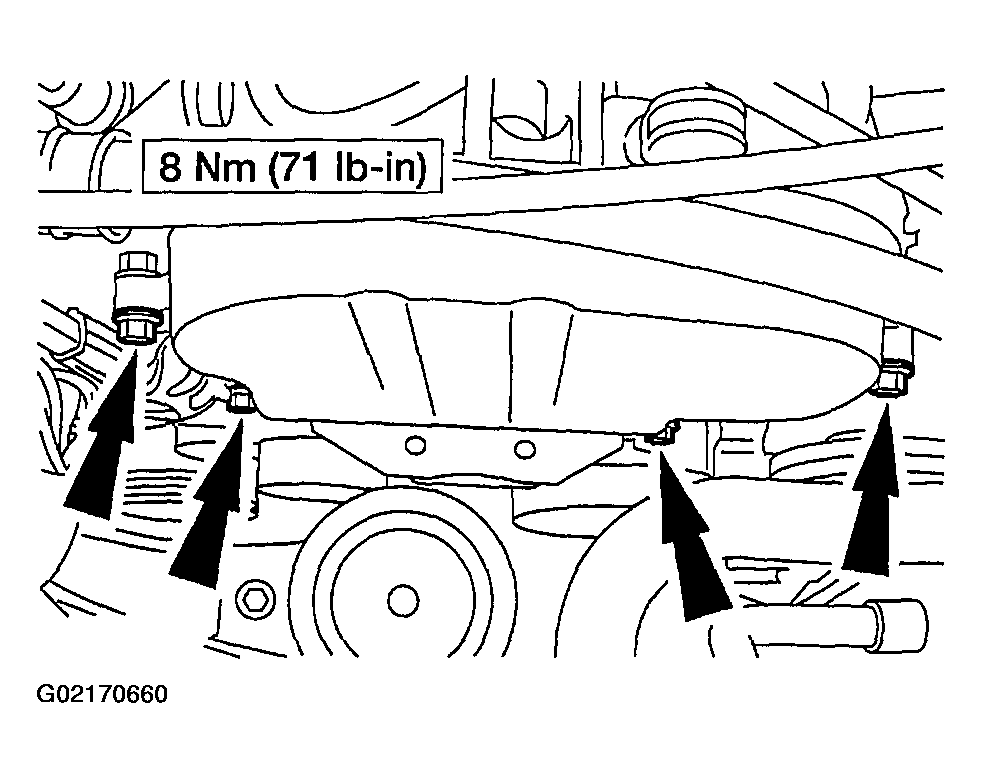

Remove the bolts and the upper timing belt cover.

Fig 6: Removing Upper Timing Belt Cover
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
