Removal & Installation

WARNING: This page is about a different variant/trim than selected.

Install the special tool.

Fig 1: Installing Engine Support
Courtesy of MAZDA MOTORS CORP.
Disconnect the ground strap.

Fig 2: Disconnecting Ground Strap
Courtesy of MAZDA MOTORS CORP.
Remove the engine mount upper bracket.

Fig 3: Removing Engine Mount Upper Bracket
Courtesy of MAZDA MOTORS CORP.
Disconnect the ground wire.

Fig 4: Disconnecting Ground Wire
Courtesy of MAZDA MOTORS CORP.
Disconnect the power steering line bracket.

Fig 5: Disconnecting Power Steering Line Bracket
Courtesy of MAZDA MOTORS CORP.
Disconnect the power steering line bracket and position the line aside.

Fig 6: Disconnecting Power Steering Line Bracket
Courtesy of MAZDA MOTORS CORP.

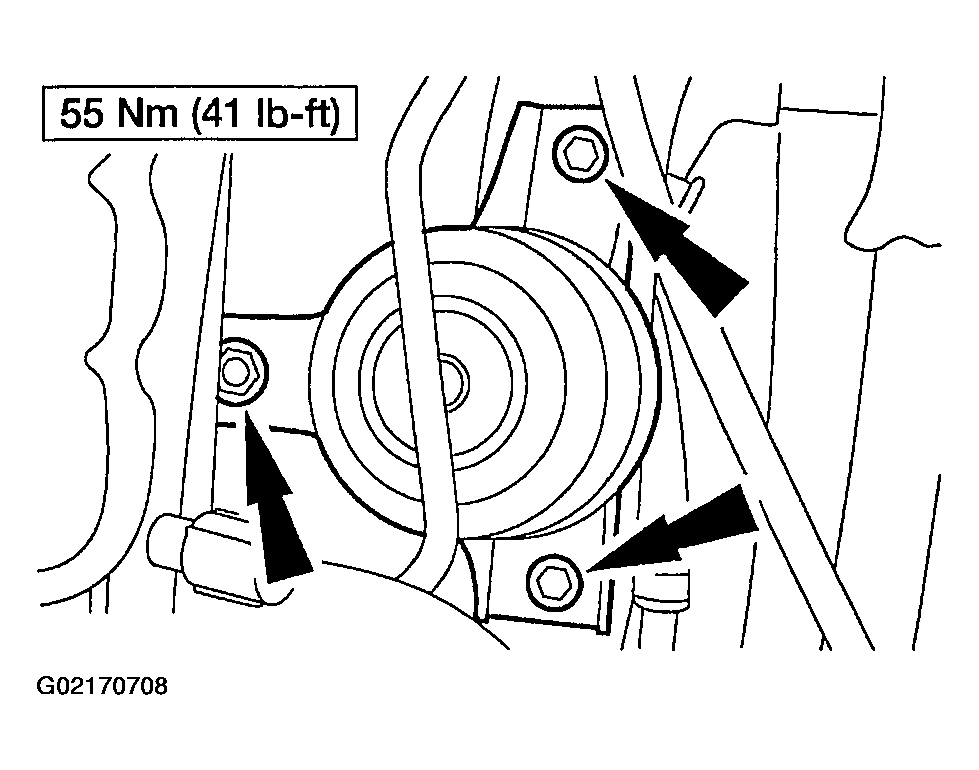

Remove the engine mount.

Fig 7: Removing Engine Mount
Courtesy of MAZDA MOTORS CORP.
To install, reverse the removal procedure.
