Camshaft Oil Seal: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: The exhaust camshaft oil seal is shown, the intake seal is similar.

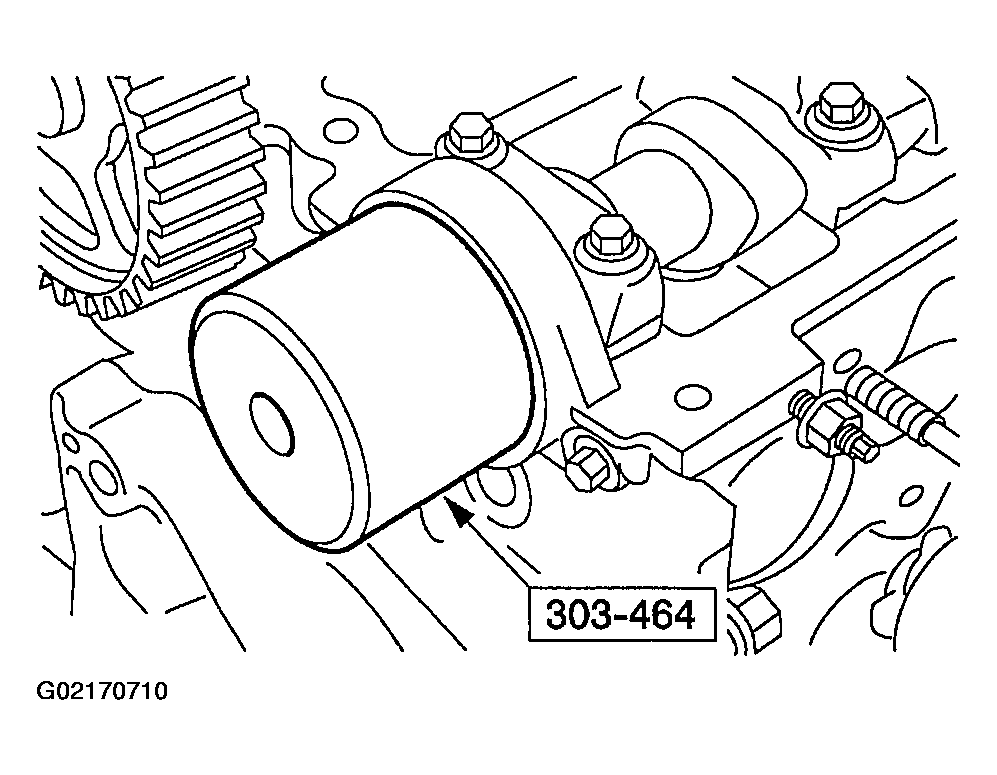

Fig 1: Installing Camshaft Oil Seals

Courtesy of MAZDA MOTORS CORP.

Using the special tool, install new camshaft front oil seals.
Install the camshaft timing sprockets. Refer to TIMING DRIVE COMPONENTS - TIMING SPROCKETS .
