Transfer Case

WARNING: This page is about a different variant/trim than selected.

Raise and support vehicle. Check fluid level at transfer case fill plug hole. See Fig 1 . Fluid should be level with bottom of fill plug hole. Add appropriate fluid as necessary. See RECOMMENDED FLUID .

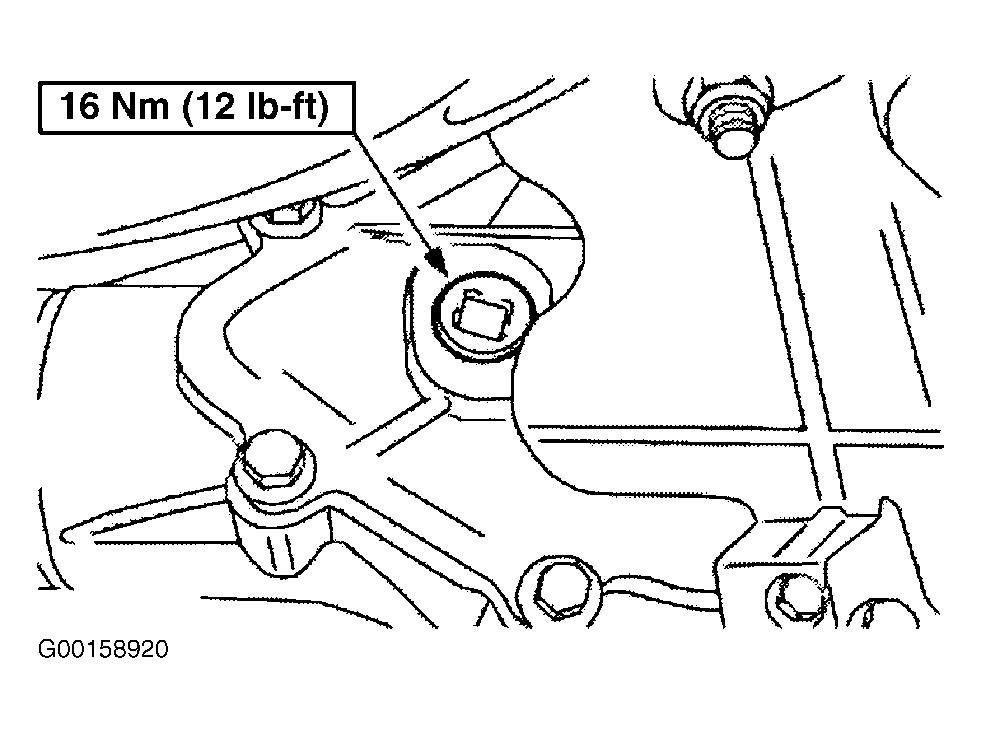

Fig 1: Identifying Oil Level Fill Plug

Courtesy of MAZDA MOTORS CORP.
