Timing Belt Removal Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

When removing the bolt, hold the tensioner so that the bolt holes are aligned. Otherwise the threads can be damaged.

Loosen the auto tensioner bolts and remove the lower bolt.

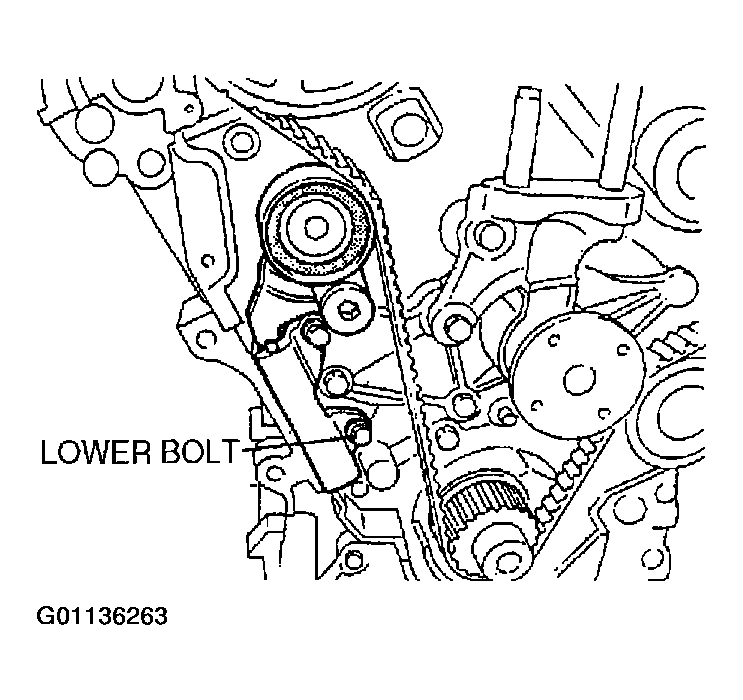

Fig 1: Identifying Auto Tensioner & Lower Bolt
Courtesy of MAZDA MOTORS CORP.

CAUTION:

Forcefully twisting the belt, turning it inside out, bending it, or allowing oil or grease on it will damage the belt and shorten its life.

NOTE:

Mark the timing belt rotating direction on the belt for proper reinstallation.

Fig 2: Marking Timing Belt Rotating Direction & Identifying Faulty Belt Conditions
Courtesy of MAZDA MOTORS CORP.
