Rear Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the flywheel. (MTX) See CLUTCH UNIT REMOVAL/INSTALLATION .
  2. Remove the drive plate. (ATX) See DRIVE PLATE REMOVAL/INSTALLATION .
  3. Remove in the order indicated in Fig 1.
  4. Install in the reverse order of removal.

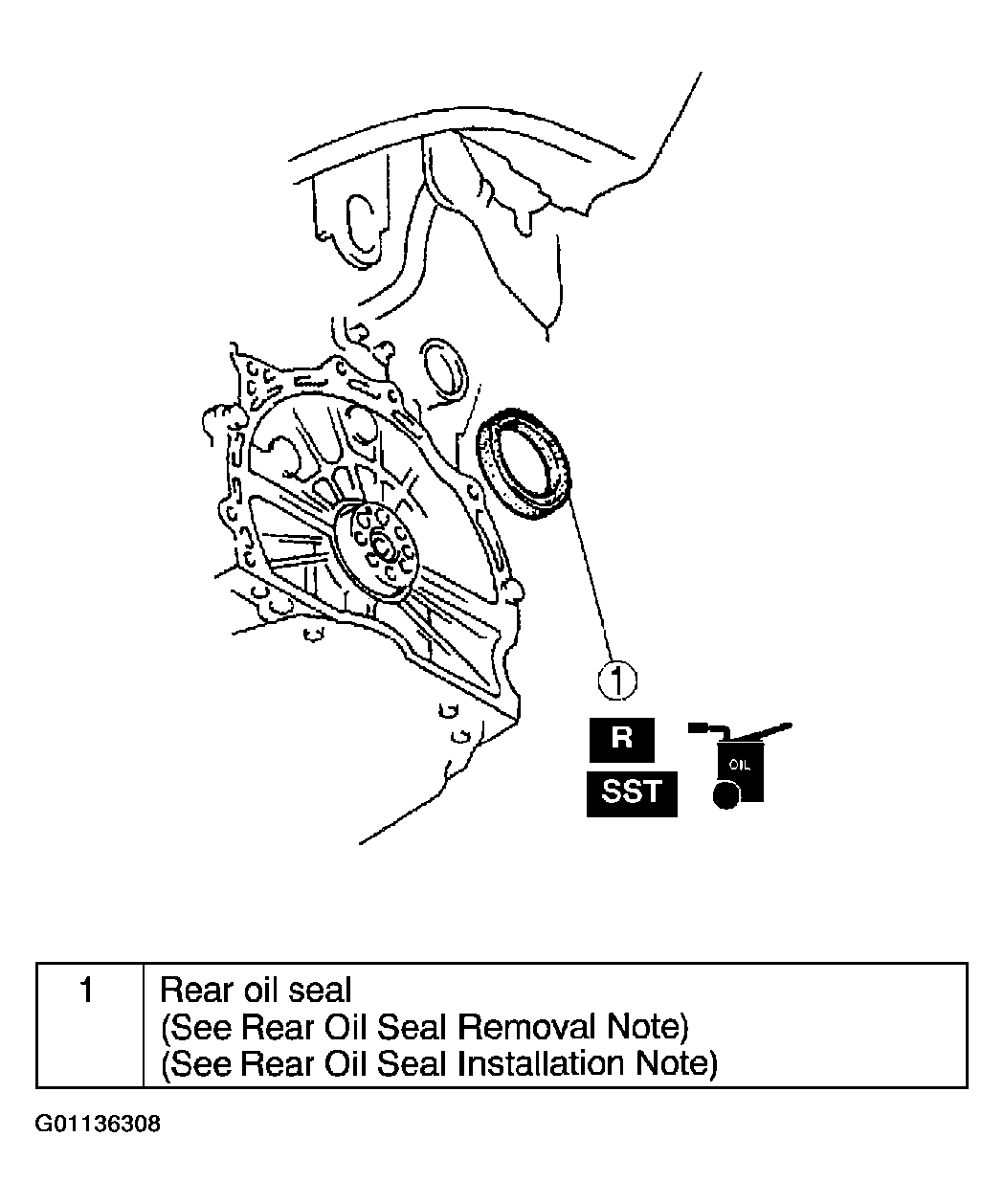

    Fig 1: Replacing Rear Oil Seal
    G01136308Courtesy of MAZDA MOTORS CORP.
