Front Oil Seal Replacement: Notes

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing belt. See TIMING BELT REMOVAL/INSTALLATION .
  2. Remove in the order indicated in Fig 1.
  3. Install in the reverse order of removal.

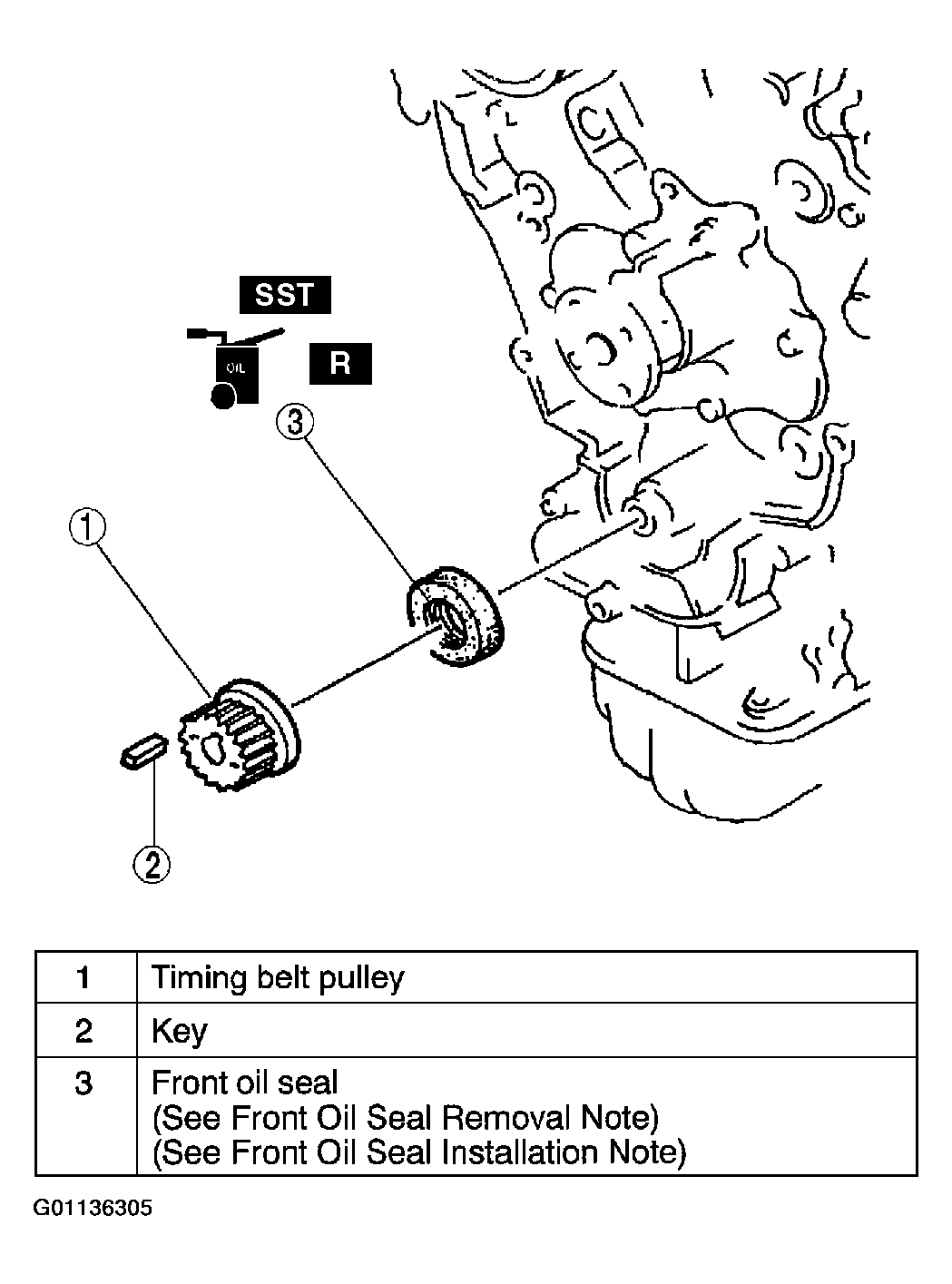

    Fig 1: Replacing Front Oil Seal
    G01136305Courtesy of MAZDA MOTORS CORP.
