Front Oil Seal Removal Note

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Cut the oil seal lip using a razor knife.
  2. Remove the oil seal using a screwdriver protected with a rag.

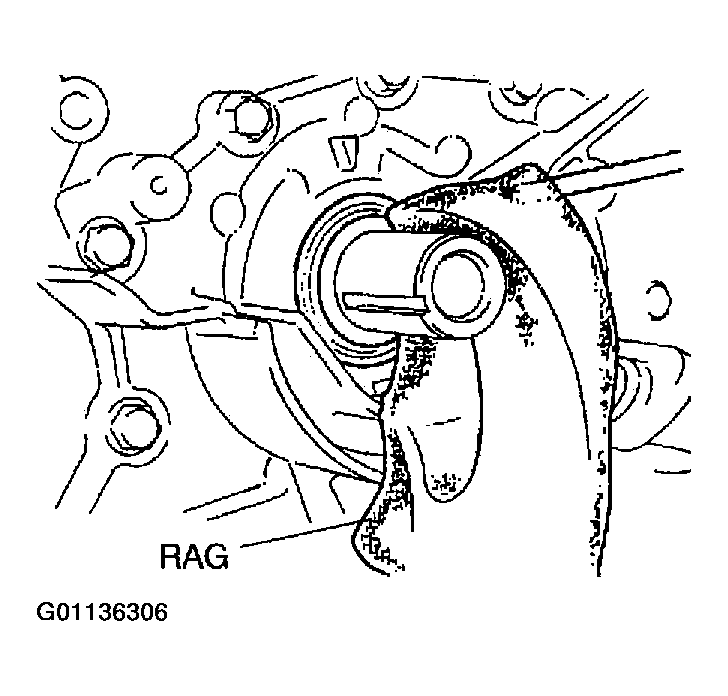

    Fig 1: Removing Front Oil Seal
    G01136306Courtesy of MAZDA MOTORS CORP.
