Engine Disassembly/Assembly

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the engine and transaxle. See MANUAL TRANSAXLE REMOVAL/INSTALLATION . (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .
  2. Remove the intake-air system.
  3. Remove the exhaust system.
  4. Remove the oil filter. (See OIL FILTER REPLACEMENT .)
  5. Remove the ignition coil.
  6. Remove the generator.
  7. Disassemble in the order indicated in Fig 1e.
  8. Assemble in the reverse order of disassembly.

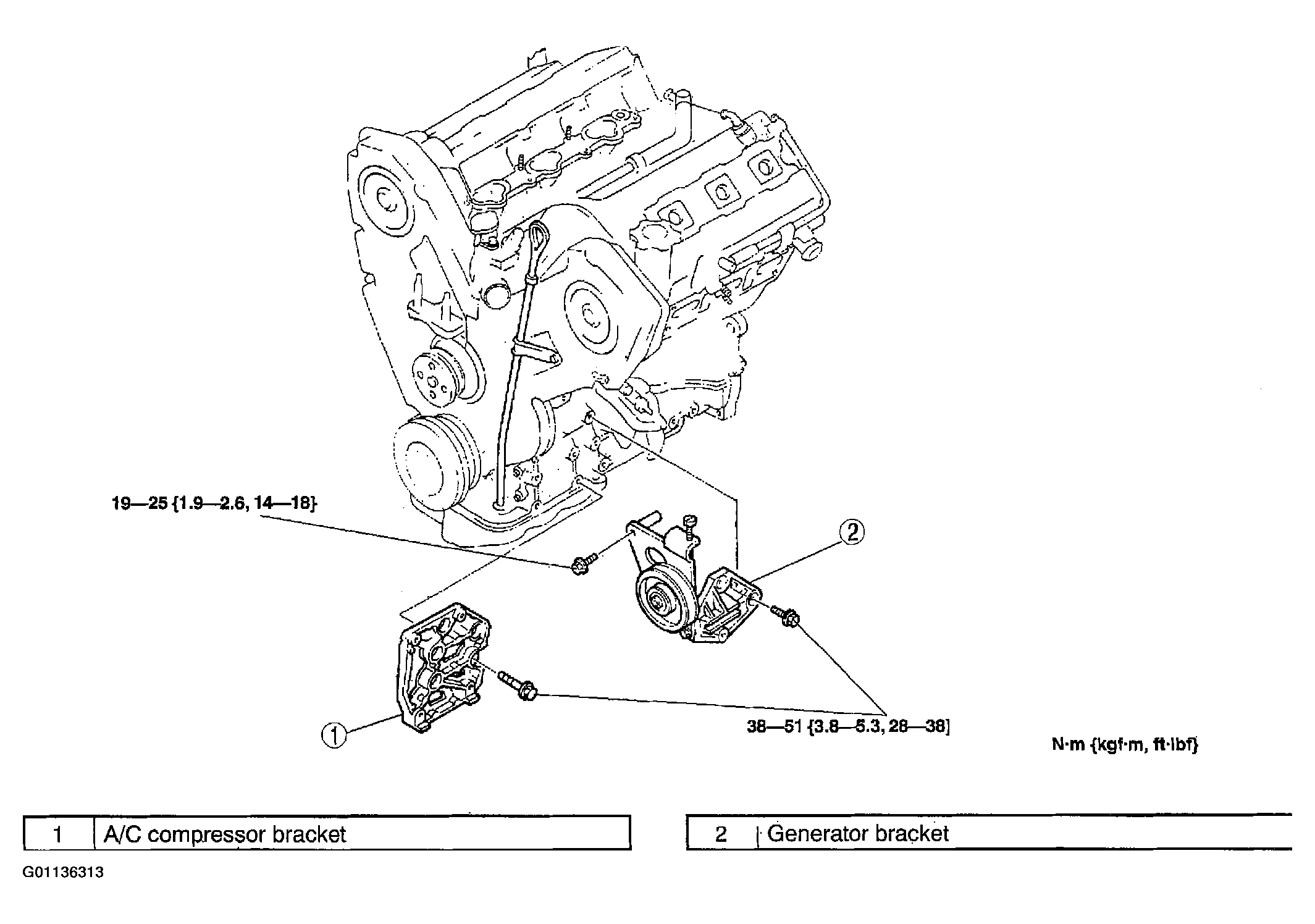

    Fig 1: Removing A/C & Generator Brackets
    G01136313Courtesy of MAZDA MOTORS CORP.
