Drive Belt Adjustment

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.
  1. Loosen locknut A.
  2. Adjust the belt deflection or tension by turning the adjusting bolt B. See DRIVE BELT INSPECTION .
  3. Tighten locknut A.

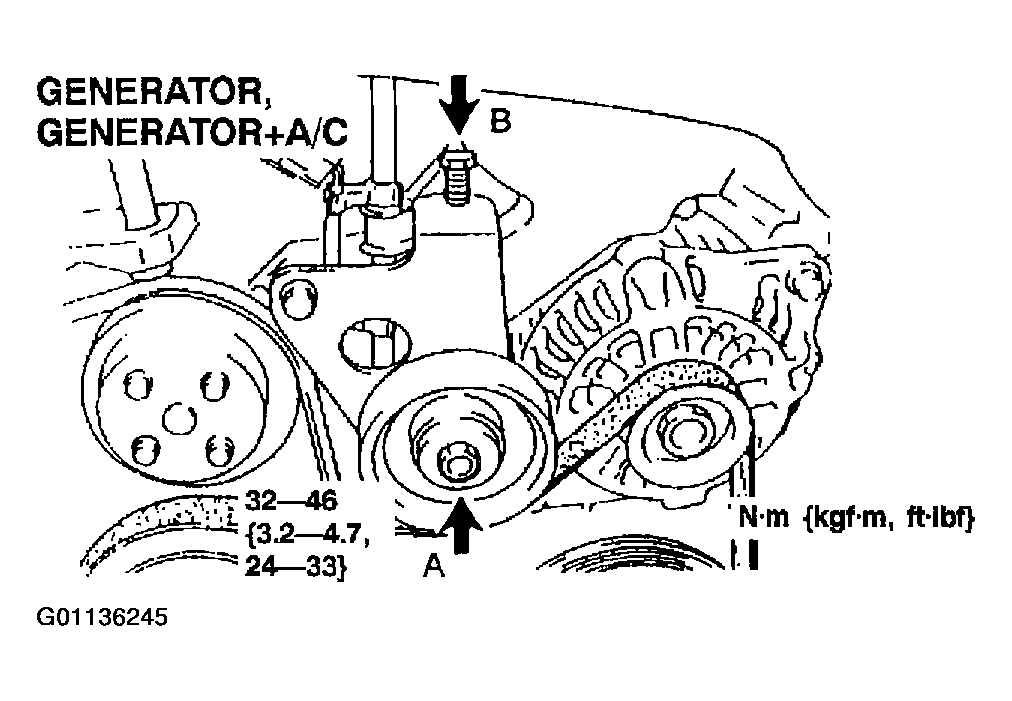

    Fig 1: Adjusting Belt Deflection (Generator Or Generator With A/C)
    G01136245Courtesy of MAZDA MOTORS CORP.

    P/S

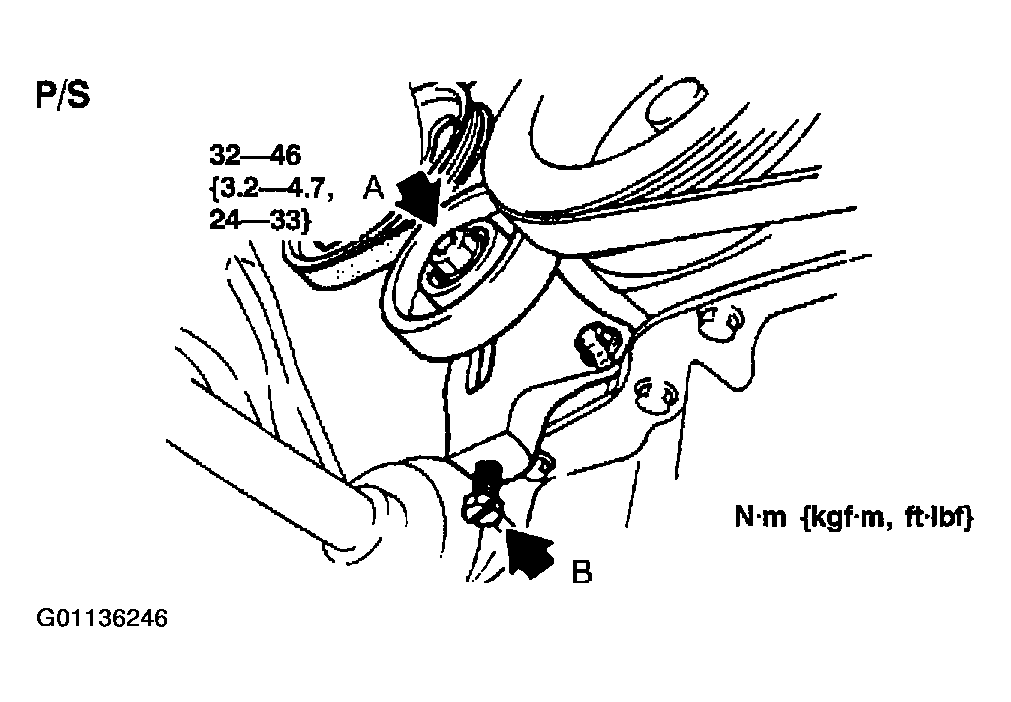

    Fig 2: Adjusting Belt Deflection (Power Steering)
    G01136246Courtesy of MAZDA MOTORS CORP.
  4. Verify the belt deflection or tension. See DRIVE BELT INSPECTION .
